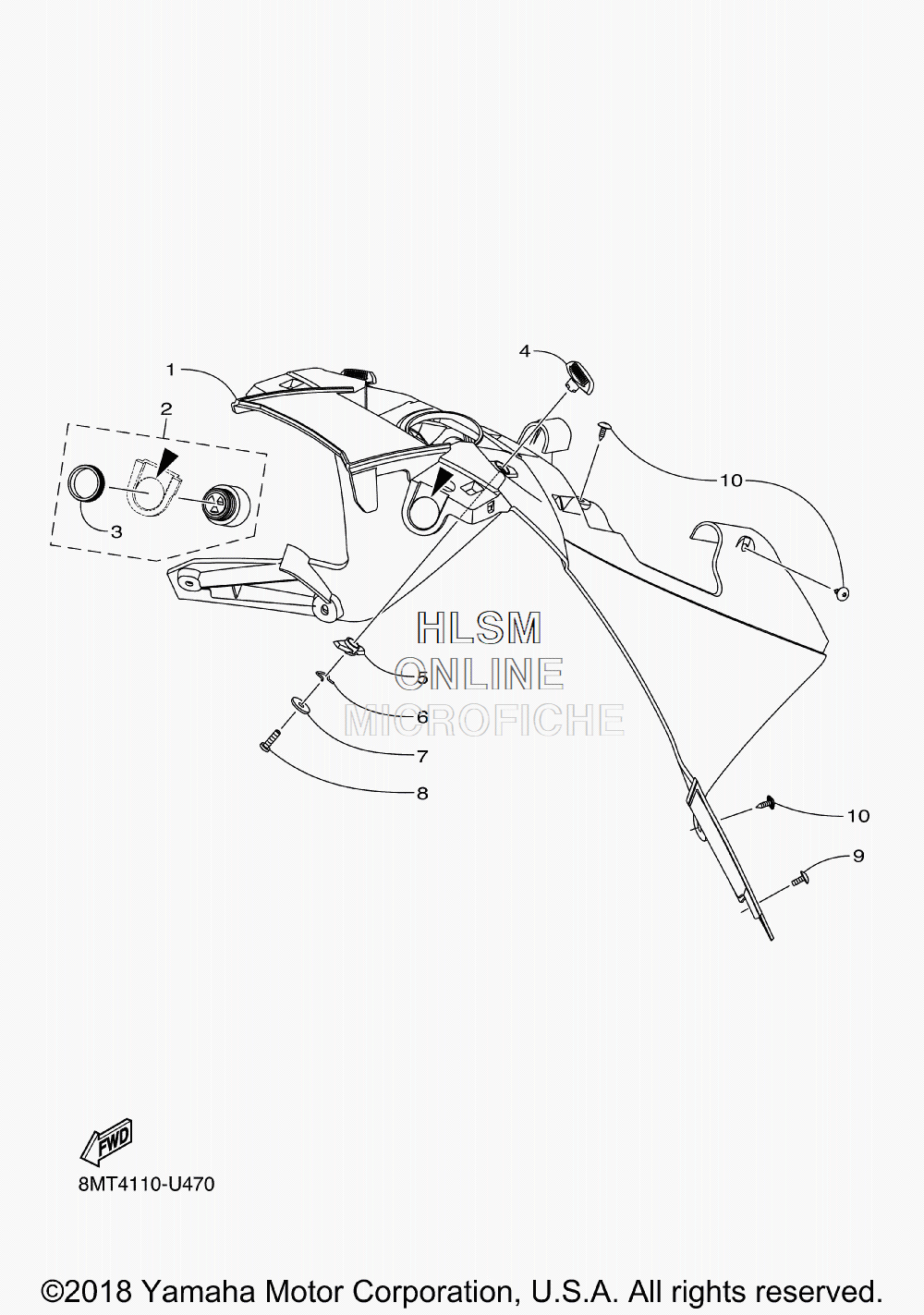

INSTRUMENT PANEL 2 для Yamaha SIDEWINDER B TX LE 153 - 2019 года выпуска
-
№АртикулНазвание
-
18LX-K7711-00-00 PANEL INSTRUMENTPANEL INSTRUMENT
-
28JP-H2564-00-00 ALARM UNITALARM UNIT
-
38JP-H4395-00-00 ...RING RETAINING...RING RETAINING
-
48KC-K7324-00-00 KNOBKNOB
-
58KC-K7153-00-00 PLATE BACK UP 1PLATE BACK UP 1
-
68JP-RAC15-00-00 CLIP 6CLIP 6
-
78JP-RA429-00-00 WASHERWASHER
-
88KC-RA238-00-00 SCREW 4SCREW 4
-
98JP-RA202-00-00 SCREW TAPPINGSCREW TAPPING
-
108KC-RA290-00-00 SCREWSCREW
