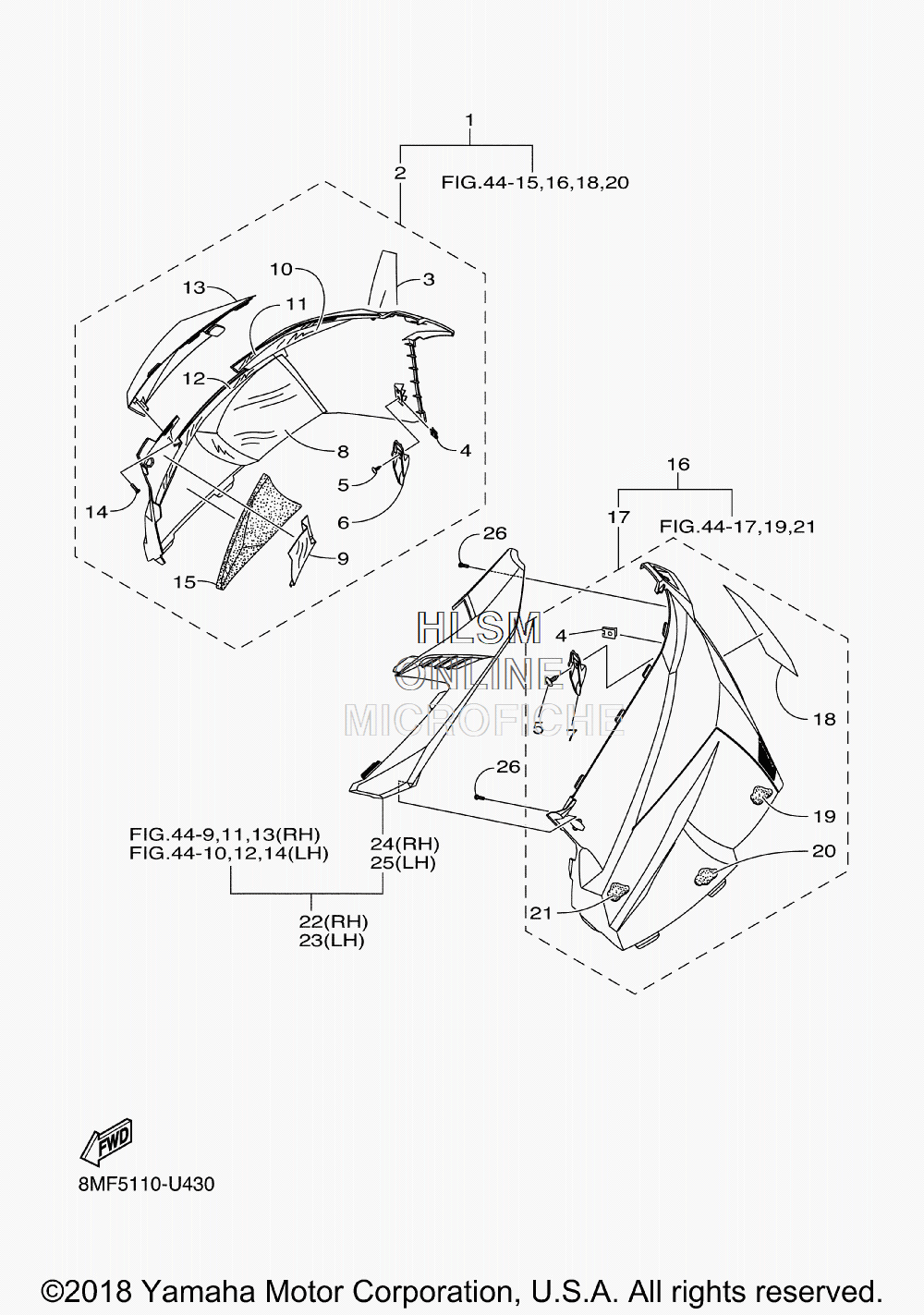

SIDE PANEL для Yamaha SIDEWINDER B TX LE 153 - 2019 года выпуска
-
№АртикулНазвание
-
18MF-K810G-00-00 SIDE PANEL COMP. (RIGHT HAND)SIDE PANEL COMP. (RIGHT HAND)
-
28KC-K8140-20-00 ...SHELL SIDE PANEL ASSY 2...SHELL SIDE PANEL ASSY 2
-
38KC-K7761-70-00 ......LABEL WARNING 1......LABEL WARNING 1
-
48JP-RA352-00-00 ............NUT SPRING (INCL 2, 17)............NUT SPRING (INCL 2, 17)
-
58KC-RA290-00-00 ......SCREW (INCL 2, 17)......SCREW (INCL 2, 17)
-
68KC-K715T-00-00 ......HOOK 2......HOOK 2
-
78KC-K715S-00-00 ......HOOK 1 (17)......HOOK 1 (17)
-
88KC-K7552-00-00 ......PROTECTOR 2......PROTECTOR 2
-
98KC-K7551-01-00 ......PROTECTOR 1......PROTECTOR 1
-
108KC-K7553-01-00 ......PROTECTOR 3......PROTECTOR 3
-
118KC-K7554-00-00 ......PROTECTOR 4......PROTECTOR 4
-
128KC-K7555-00-00 ......PROTECTOR 5......PROTECTOR 5
-
138KC-K715U-00-00 ......VENT SIDE 1......VENT SIDE 1
-
148KC-RA238-00-00 ......SCREW 4......SCREW 4
-
158KC-K7278-00-00 ......DAMPER NOISE 18......DAMPER NOISE 18
-
168MF-K810F-00-00 SIDE PANEL COMP. (LEFT HAND)SIDE PANEL COMP. (LEFT HAND)
-
178KC-K8130-20-00 ...SHELL SIDE PANEL ASSY 1...SHELL SIDE PANEL ASSY 1
-
188KC-K7761-S0-00 ......LABEL WARNING 1......LABEL WARNING 1
-
198KC-K7279-00-00 ......DAMPER NOISE 19......DAMPER NOISE 19
-
208KC-K7277-00-00 ......DAMPER NOISE 17......DAMPER NOISE 17
-
218KC-K7277-10-00 ......DAMPER NOISE 17......DAMPER NOISE 17
-
228MF-K7111-00-00 SHROUDSHROUD
-
238MF-K7112-00-00 SHROUD 2SHROUD 2
-
248KC-K7111-00-00 ...SHROUD...SHROUD
-
258KC-K7112-00-00 ...SHROUD 2...SHROUD 2
-
268KC-RA238-00-00 SCREW 4SCREW 4
