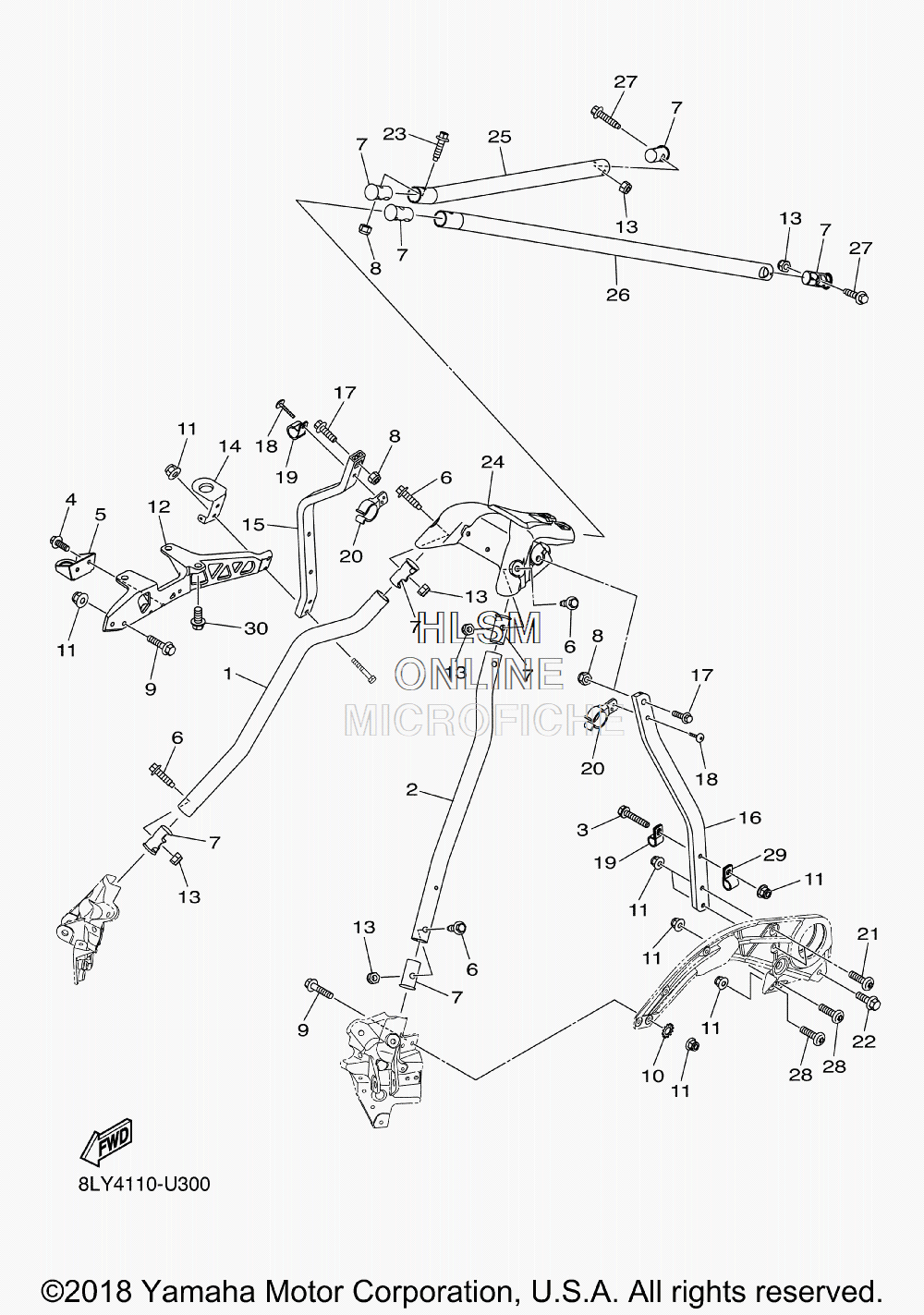

HANDLEBAR PAD W/ STEERING GATE для Yamaha SIDEWINDER B TX LE 153 - 2019 года выпуска
-
№АртикулНазвание
-
18KC-F1197-00-00 CROSS TUBE 2CROSS TUBE 2
-
28KC-F1196-00-00 CROSS TUBE 1CROSS TUBE 1
-
38KC-RA153-00-00 BOLT FLG. M6X25BOLT FLG. M6X25
-
48KC-RA146-00-00 BOLT FLANGE M6X16BOLT FLANGE M6X16
-
58KC-F194X-00-00 BRACKET 1BRACKET 1
-
68JP-RA297-00-00 SCREW 8SCREW 8
-
78JP-F111A-10-00 CAP MAIN PIPECAP MAIN PIPE
-
88JP-RA372-00-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
98JP-RA182-00-00 BOLT FLANGE M6X1.0X25BOLT FLANGE M6X1.0X25
-
108JM-RA407-00-00 WASHER TOOTHED LOCKWASHER TOOTHED LOCK
-
118JM-RA322-00-00 NUT FLANGE M6-1.0NUT FLANGE M6-1.0
-
128KC-F1932-00-00 REINF. FRAME FRONT 4REINF. FRAME FRONT 4
-
138JP-RA371-00-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
148MT-F112K-00-00 BRACKET 5BRACKET 5
-
158KC-F111J-00-00 MEMBER SIDE 1MEMBER SIDE 1
-
168JP-F111K-00-00 MEMBER SIDE 2MEMBER SIDE 2
-
178JP-RA185-00-00 BOLT FLANGEBOLT FLANGE
-
188KC-RA288-00-00 SCREW TAPPINGSCREW TAPPING
-
198JP-RAB23-10-00 CLAMP 21CLAMP 21
-
208JP-F11C2-00-00 CLIPCLIP
-
218KC-RA235-00-00 SCREW 1SCREW 1
-
228JM-RA102-00-00 BOLT FLANGEBOLT FLANGE
-
238JP-RA187-00-00 BOLT FLANGEBOLT FLANGE
-
248KC-F3871-00-00 GATE STEERINGGATE STEERING
-
258KC-F119E-00-00 PIPE CROSS 7PIPE CROSS 7
-
268KC-F119F-00-00 PIPE CROSS 8PIPE CROSS 8
-
278JP-RA197-00-00 BOLT FLANGEBOLT FLANGE
-
288KG-RA229-00-00 SCREWSCREW
-
298MT-RAB01-00-00 CLAMP 2CLAMP 2
-
308KC-RA236-00-00 SCREW 2SCREW 2
