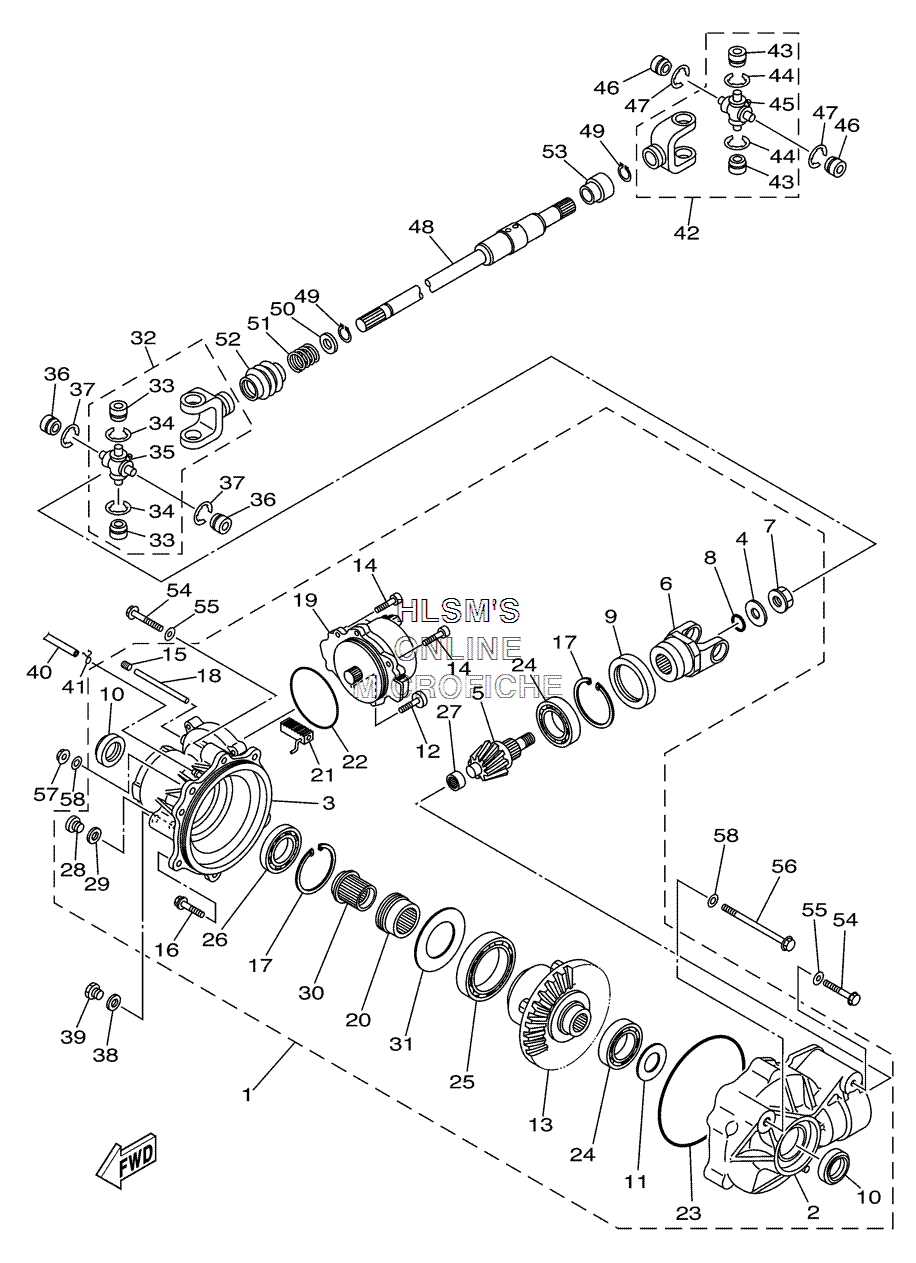

FRONT DIFFERENTIAL для Yamaha RHINO 660 - 2004 года выпуска
-
№АртикулНазвание
-
15UG-46160-00-00 FRONT AXLE GEAR CASE COMP.FRONT AXLE GEAR CASE COMP.
-
25UG-46161-00-00 ...HOUSING, SHAFT DRIVE 2...HOUSING, SHAFT DRIVE 2
-
35UG-46162-00-00 ...HOUSING, BEARING 2...HOUSING, BEARING 2
-
490201-14633-00 ...WASHER, PLATE...WASHER, PLATE
-
55KM-46141-11-00 ...PINION, DRIVE 2...PINION, DRIVE 2
-
65KM-46146-10-00 ...YOKE, JOINT 2...YOKE, JOINT 2
-
74WV-46145-00-00 ...NUT 1...NUT 1
-
893210-14359-00 ...O-RING...O-RING
-
993102-48012-00 ...OIL SEAL...OIL SEAL
-
1093102-24034-00 ...OIL SEAL...OIL SEAL
-
114WV-46119-01-00 ...SHIM, THRUST (0.1T) (OPT)...SHIM, THRUST (0.1T) (OPT)
-
114WV-46119-11-00 ...SHIM, THRUST (0.2T) (OPT)...SHIM, THRUST (0.2T) (OPT)
-
114WV-46119-21-00 ...SHIM, THRUST (0.3T) (OPT)...SHIM, THRUST (0.3T) (OPT)
-
114WV-46119-31-00 ...SHIM, THRUST (0.4T) (OPT)...SHIM, THRUST (0.4T) (OPT)
-
114WV-46119-41-00 ...SHIM, THRUST (0.5T) (OPT)...SHIM, THRUST (0.5T) (OPT)
-
114WV-46119-51-00 ...SHIM, THRUST (1.0T) (OPT)...SHIM, THRUST (1.0T) (OPT)
-
125KM-46155-00-00 ...BOLT 1...BOLT 1
-
135KM-46470-12-00 ...LIMITED SLIP DIFF. ASSY....LIMITED SLIP DIFF. ASSY.
-
1491317-08020-00 ...BOLT...BOLT
-
1590113-08004-00 ...BOLT, SET...BOLT, SET
-
164WV-46159-00-00 ...BOLT 3...BOLT 3
-
175KM-46143-00-00 ...RING, HOLE SNAP 2...RING, HOLE SNAP 2
-
185KM-42752-00-00 ...SHAFT...SHAFT
-
195KM-4616A-01-00 ...SERVO MOTOR COMP...SERVO MOTOR COMP
-
205KM-46441-00-00 ...CLUTCH, DRIVEN...CLUTCH, DRIVEN
-
215KM-18319-10-00 ...SHAFT 2...SHAFT 2
-
2293210-82001-00 ...O-RING...O-RING
-
2393211-40040-00 ...O-RING...O-RING
-
2493306-00709-00 ...BEARING...BEARING
-
2593306-91201-00 ...BEARING...BEARING
-
2693316-00702-00 ...BEARING...BEARING
-
274WV-46167-00-00 ...BEARING 4...BEARING 4
-
2890340-10001-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
2990430-10003-00 ...GASKET...GASKET
-
305KM-46451-00-00 ...ADAPTER...ADAPTER
-
315KM-46119-01-00 ...SHIM, THRUST (0.1T) (OPT)...SHIM, THRUST (0.1T) (OPT)
-
315KM-46119-11-00 ...SHIM, THRUST (0.2T) (OPT)...SHIM, THRUST (0.2T) (OPT)
-
315KM-46119-21-00 ...SHIM, THRUST (0.3T) (OPT)...SHIM, THRUST (0.3T) (OPT)
-
315KM-46119-31-00 ...SHIM, THRUST (0.4T) (OPT)...SHIM, THRUST (0.4T) (OPT)
-
315KM-46119-41-00 ...SHIM, THRUST (0.5T) (OPT)...SHIM, THRUST (0.5T) (OPT)
-
315KM-46119-51-00 ...SHIM, THRUST (1.0T) (OPT)...SHIM, THRUST (1.0T) (OPT)
-
315KM-46119-61-00 ...SHIM, THRUST (1.5T) (OPT)...SHIM, THRUST (1.5T) (OPT)
-
325KM-46107-00-00 CROSS JOINT COMP. 2CROSS JOINT COMP. 2
-
3393399-99948-00 ...BEARING...BEARING
-
3493440-20088-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
355GT-46187-00-00 ...SPIDER...SPIDER
-
3693399-99948-00 BEARINGBEARING
-
3793440-20088-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
3890340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
39214-11198-01-00 GASKETGASKET
-
4090445-070G6-00 HOSE (L1700)HOSE (L1700)
-
4190467-07029-00 CLIP, SCISSORCLIP, SCISSOR
-
425KM-46107-00-00 CROSS JOINT COMP. 2CROSS JOINT COMP. 2
-
4393399-99948-00 ...BEARING...BEARING
-
4493440-20088-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
455GT-46187-00-00 ...SPIDER...SPIDER
-
4693399-99948-00 BEARINGBEARING
-
4793440-20088-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
485UG-46173-00-00 SHAFT, DRIVE 2SHAFT, DRIVE 2
-
4999009-19400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
5090201-20266-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
5190501-235L9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
525GT-46136-00-00 SEAL 1SEAL 1
-
535GT-46137-00-00 SEAL 2SEAL 2
-
5495817-10030-00 BOLT, FLANGEBOLT, FLANGE
-
5590201-108R2-00 WASHER, PLATEWASHER, PLATE
-
5690105-10N51-00 BOLT, FLANGEBOLT, FLANGE
-
579560P-10200-00 NUT, FLANGENUT, FLANGE
-
5890201-108R2-00 WASHER, PLATEWASHER, PLATE
