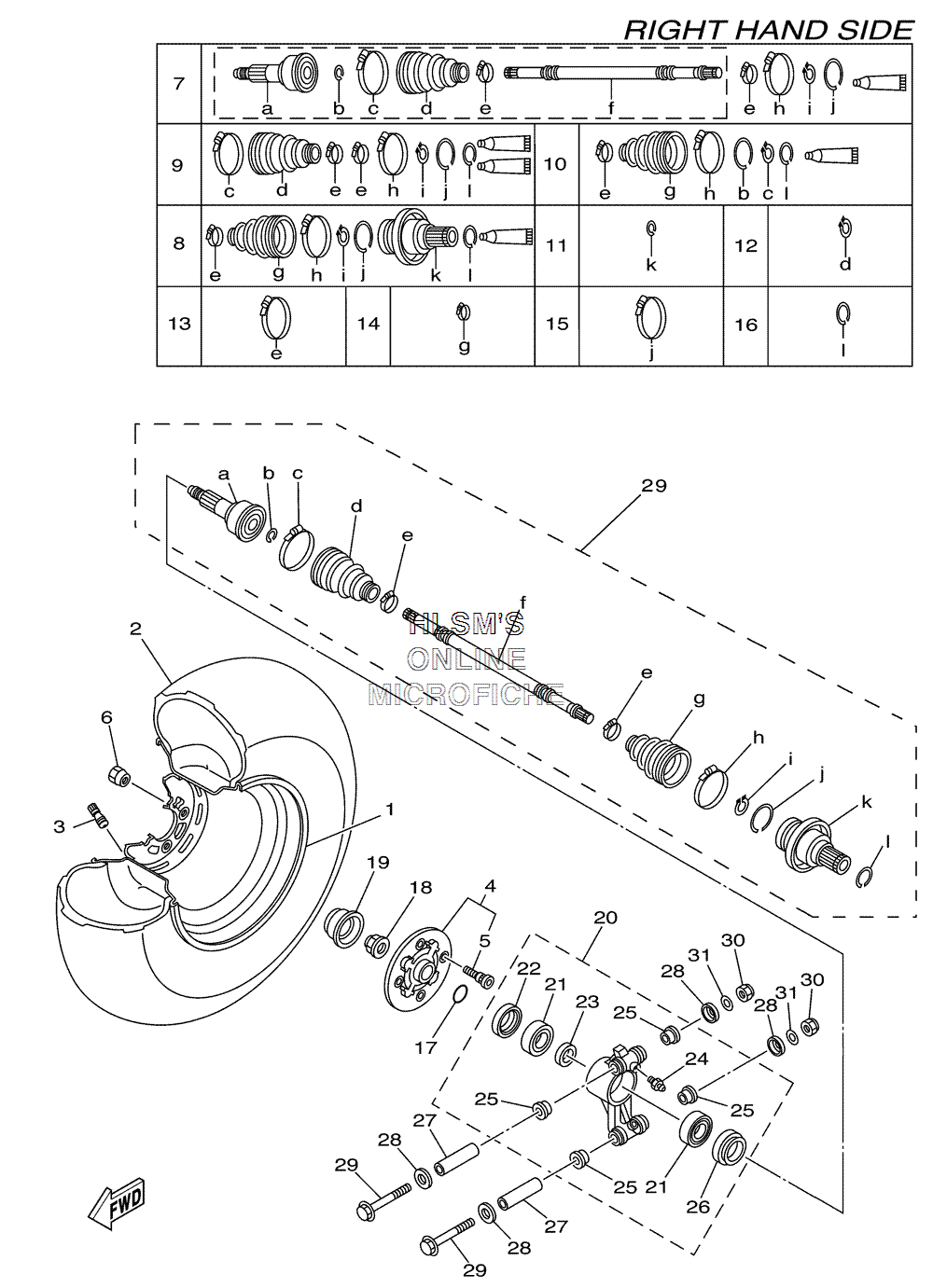

REAR WHEEL RIGHT для Yamaha RHINO 660 - 2004 года выпуска
-
№АртикулНазвание
-
15UG-F5390-00-00 REAR RIM (12 X 7.5)REAR RIM (12 X 7.5)
-
294110-12802-00 TIRE (25X10-12 NHS) GOODYEARTIRE (25X10-12 NHS) GOODYEAR
-
393900-00813-00 VALVE, RIMVALVE, RIM
-
45UG-F5310-00-00 HUB ASSY.HUB ASSY.
-
590114-10802-00 ...BOLT, SERRATION...BOLT, SERRATION
-
690179-10540-00 NUTNUT
-
75UG-F530U-00-00 BALL JOINT SETBALL JOINT SET
-
85KM-2530W-10-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
95KM-2530X-11-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
105KM-2530Y-10-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
114KB-2512H-00-00 CLIPCLIP
-
122HR-2512J-00-00 SNAP RINGSNAP RING
-
134KB-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
143HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
153HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
165KM-2536E-10-00 CLIP, SPRINGCLIP, SPRING
-
1793210-27666-00 O-RINGO-RING
-
1890179-20006-00 NUTNUT
-
195UG-F512A-00-00 CAP, WHEELCAP, WHEEL
-
205UG-F530F-00-00 REAR KNUCKLE ASSY.REAR KNUCKLE ASSY.
-
2193306-206Y2-00 ...BEARING...BEARING
-
2293106-38801-00 ...OIL SEAL...OIL SEAL
-
2390560-30325-00 ...SPACER...SPACER
-
2493700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2590381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
2693106-38800-00 ...OIL SEAL...OIL SEAL
-
275KM-23448-00-00 SPACERSPACER
-
282NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
2990105-108A8-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3090185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3190201-108R2-00 WASHER, PLATEWASHER, PLATE
-
325UG-F53B0-01-00 REAR DRIVE SHAFT ASSY. RHREAR DRIVE SHAFT ASSY. RH
