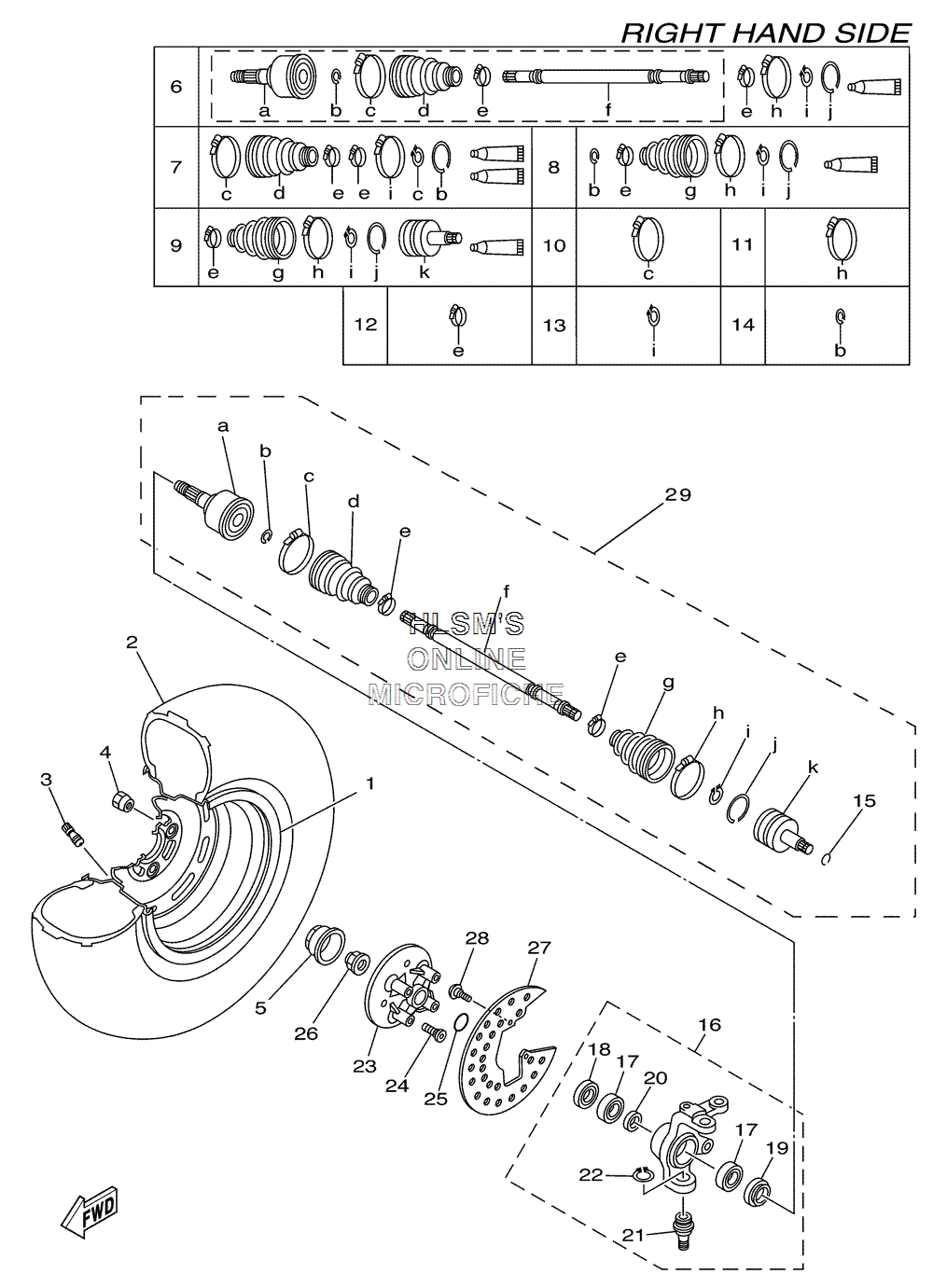

FRONT WHEEL RIGHT для Yamaha RHINO 660 - 2004 года выпуска
-
№АртикулНазвание
-
15UG-F5180-00-00 FRONT RIM (12 X 6.0)FRONT RIM (12 X 6.0)
-
294108-12804-00 TIRE (25X8-12 NHS) GOODYEARTIRE (25X8-12 NHS) GOODYEAR
-
393900-00813-00 VALVE, RIMVALVE, RIM
-
490179-10540-00 NUTNUT
-
55UG-F512A-00-00 CAP, WHEELCAP, WHEEL
-
65UG-F510F-00-00 BALL JOINT SETBALL JOINT SET
-
75UG-F510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
85KM-2510H-10-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
95KM-2510J-30-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
103HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
115UG-F511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
123HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
132HR-2512J-00-00 SNAP RINGSNAP RING
-
144KB-2512H-00-00 CLIPCLIP
-
1593450-22119-00 CIRCLIP, INNERCIRCLIP, INNER
-
165UG-F3502-00-00 STEERING KNUCKLE ASSY. (RIGHT)STEERING KNUCKLE ASSY. (RIGHT)
-
1793306-006Y4-00 ...BEARING...BEARING
-
1893106-38046-00 ...OIL SEAL...OIL SEAL
-
1993106-38047-00 ...OIL SEAL...OIL SEAL
-
2090560-30325-00 ...SPACER...SPACER
-
215FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
2293410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
235UG-F5111-02-00 HUB, FRONTHUB, FRONT
-
2490114-10802-00 BOLT, SERRATIONBOLT, SERRATION
-
2593210-27666-00 O-RINGO-RING
-
2690179-20006-00 NUTNUT
-
275UG-F514A-00-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
2890149-06280-00 SCREWSCREW
-
295UG-F518G-00-00 FRONT DRIVE SHAFT ASSY. RHFRONT DRIVE SHAFT ASSY. RH
