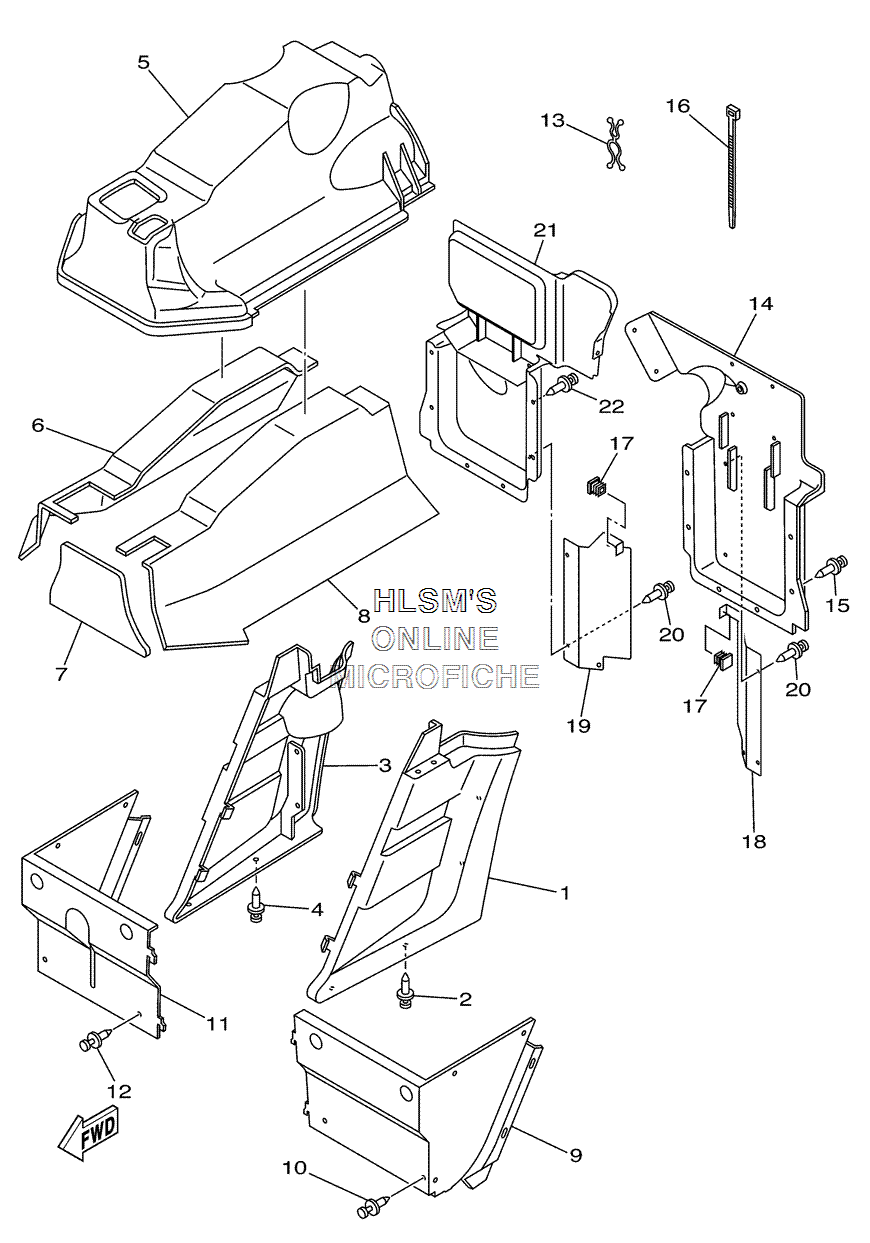

SIDE COVER для Yamaha RHINO 660 - 2004 года выпуска
-
№АртикулНазвание
-
15UG-K810F-00-00 SIDE PANEL COMP. (L.H)SIDE PANEL COMP. (L.H)
-
290269-06800-00 RIVETRIVET
-
35UG-K810G-00-00 SIDE PANEL COMP. (R.H)SIDE PANEL COMP. (R.H)
-
490269-06800-00 RIVETRIVET
-
55UG-F8219-00-00 COVER ASSY. WITH HEATCOVER ASSY. WITH HEAT
-
65UG-F2873-00-00 SEAL 1SEAL 1
-
75UG-F2874-00-00 SEAL 2SEAL 2
-
85UG-F2875-00-00 SEAL 3SEAL 3
-
95UG-F254J-00-00 SUPPORT, SIDE PANELSUPPORT, SIDE PANEL
-
1090269-06800-00 RIVETRIVET
-
115UG-F254K-00-00 SUPPORT, SIDE PANEL 2SUPPORT, SIDE PANEL 2
-
1290269-06800-00 RIVETRIVET
-
1390464-29179-00 CLAMPCLAMP
-
145UG-K7561-00-00 PROTECTOR, SIDEPROTECTOR, SIDE
-
1590269-06800-00 RIVETRIVET
-
1690464-48800-00 CLAMPCLAMP
-
175UG-F1875-00-00 CAPCAP
-
185UG-F2825-00-00 PROTECTOR 1PROTECTOR 1
-
195UG-F2826-00-00 PROTECTOR 2PROTECTOR 2
-
2090269-06800-00 RIVETRIVET
-
215UG-F4141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
2290269-06800-00 RIVETRIVET
