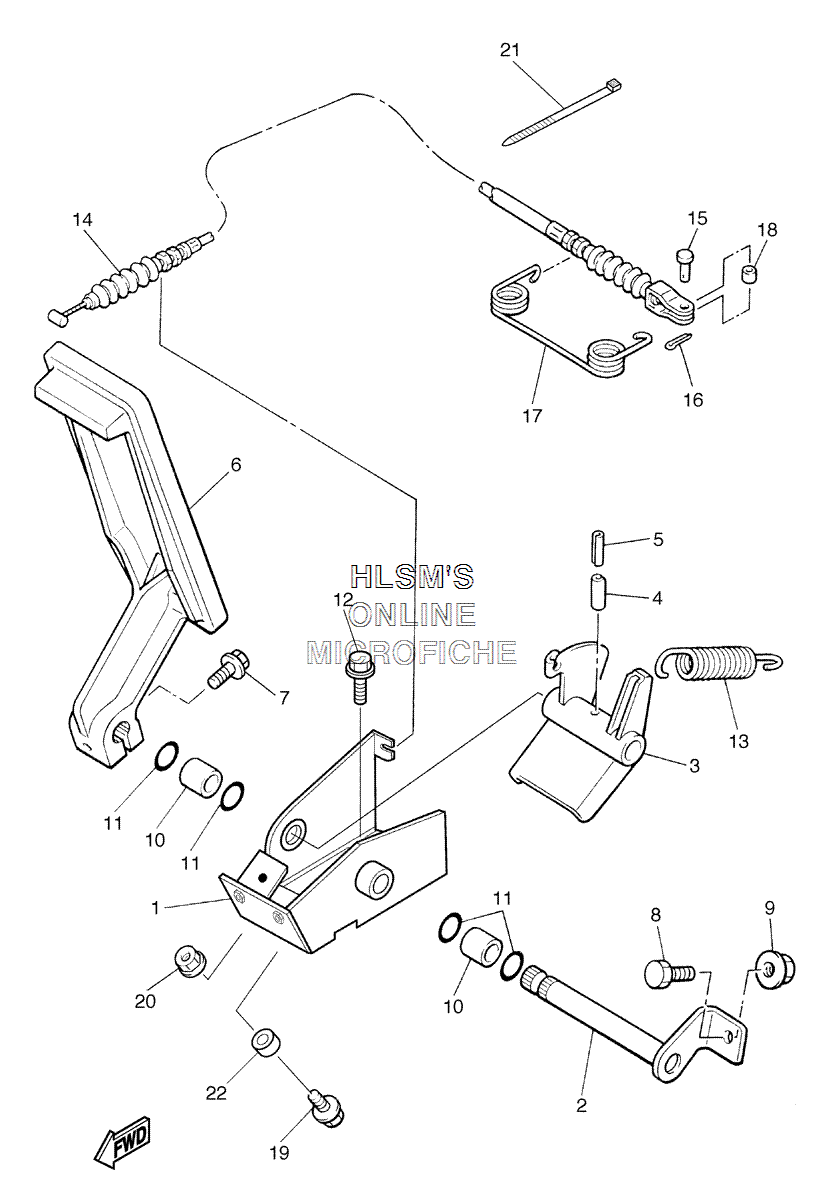

ACCELERATOR для Yamaha PRO HAULER 700 - 2005 года выпуска
-
№АртикулНазвание
-
1JN6-F7874-01-00 BRACKET, ACCELERATOR PEDALBRACKET, ACCELERATOR PEDAL
-
2J17-27853-01-00 SHAFT, PEDAL 1SHAFT, PEDAL 1
-
3J38-27872-00-00 ARM, ACCELERATOR PEDALARM, ACCELERATOR PEDAL
-
491609-60028-00 PIN, SPRINGPIN, SPRING
-
591609-35028-00 PIN, SPRINGPIN, SPRING
-
6J10-27871-01-00 PEDAL, ACCELERATORPEDAL, ACCELERATOR
-
795807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
890106-08806-00 BOLTBOLT
-
995707-08500-00 NUT, FLANGENUT, FLANGE
-
1090384-14080-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
1193210-14104-00 O-RINGO-RING
-
1290105-08878-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1390506-26282-00 SPRING, TENSIONSPRING, TENSION
-
14JN3-F6311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
1591701-05012-00 PIN, CLEVISPIN, CLEVIS
-
1690468-10049-00 CLIPCLIP
-
1790508-16460-00 SPRING, TORSIONSPRING, TORSION
-
1890560-05001-00 SPACERSPACER
-
1995807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2095707-06500-00 NUT, FLANGENUT, FLANGE
-
2190464-40825-00 CLAMPCLAMP
-
2290387-068T4-00 COLLARCOLLAR
