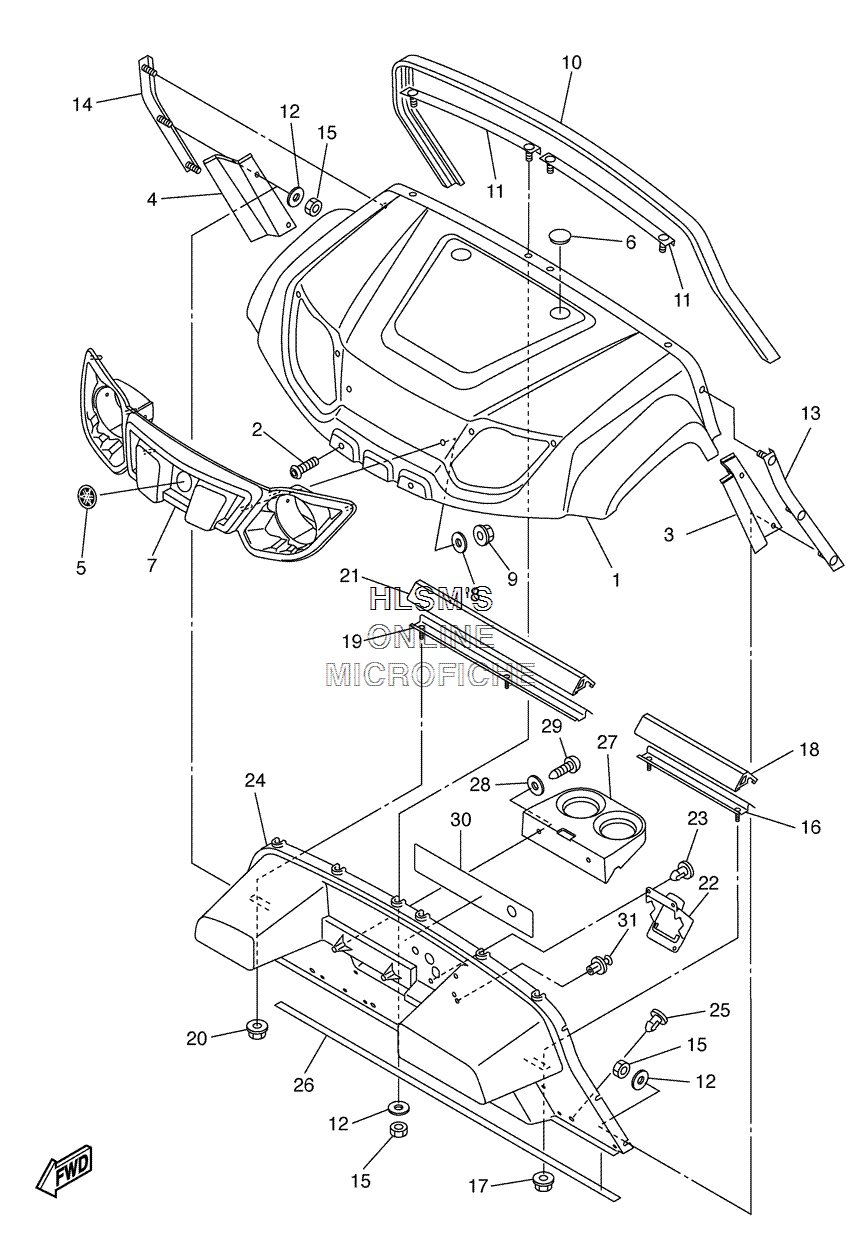

BODY для Yamaha PRO HAULER 700 - 2005 года выпуска
-
№АртикулНазвание
-
1JW4-K8115-00-00 COWL, FRONTCOWL, FRONT
-
290110-06836-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3JW4-F1551-00-00 FENDER, OVERFENDER, OVER
-
4JW4-F1555-00-00 FENDER, OVER 2FENDER, OVER 2
-
55FU-F175B-01-00 TUNING FORK MARKTUNING FORK MARK
-
6JN3-K818E-00-00 CAP, PROTECTOR END 1CAP, PROTECTOR END 1
-
7JW4-K8217-01-00 GRILLE, FRONTGRILLE, FRONT
-
890201-05800-00 WASHER, PLATEWASHER, PLATE
-
995607-05200-00 NUT, U FLANGENUT, U FLANGE
-
10JF2-K811V-00-00 PROTECTOR 1PROTECTOR 1
-
11JU0-K8261-00-00 PLATE, BODY PROTECT 1PLATE, BODY PROTECT 1
-
1290201-06829-00 WASHER, PLATEWASHER, PLATE
-
13JF2-K8262-01-00 PLATE, BODY PROTECT 2PLATE, BODY PROTECT 2
-
14JF2-K8263-01-00 PLATE, BODY PRTOTECT 3PLATE, BODY PRTOTECT 3
-
1590185-06836-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
16JF2-K8264-00-00 PLATE, BODY PROTECT 4PLATE, BODY PROTECT 4
-
179560P-06200-00 NUT, FLANGENUT, FLANGE
-
18JF2-K811W-00-00 PROTECTOR 2PROTECTOR 2
-
19JF2-K8265-00-00 PLATE, BODY PROTECT 5PLATE, BODY PROTECT 5
-
209560P-06200-00 NUT, FLANGENUT, FLANGE
-
21JF2-K811X-00-00 PROTECTOR 3PROTECTOR 3
-
22JF2-78273-01-00 COVER, HOLECOVER, HOLE
-
2390269-11042-00 RIVETRIVET
-
24JU7-K8114-00-00 PANEL, FRONTPANEL, FRONT
-
2590269-08066-00 RIVETRIVET
-
26JN3-K815G-00-00 SEAL, FRONT STORAGESEAL, FRONT STORAGE
-
27JF2-K835E-00-00 HOLDER, BEVERAGEHOLDER, BEVERAGE
-
2890201-068R6-00 WASHER, PLATEWASHER, PLATE
-
299770P-60130-00 SCREW, TAPPINGSCREW, TAPPING
-
30JU7-K7761-00-00 LABEL, WARNING 1LABEL, WARNING 1
-
3190269-08069-00 RIVETRIVET
