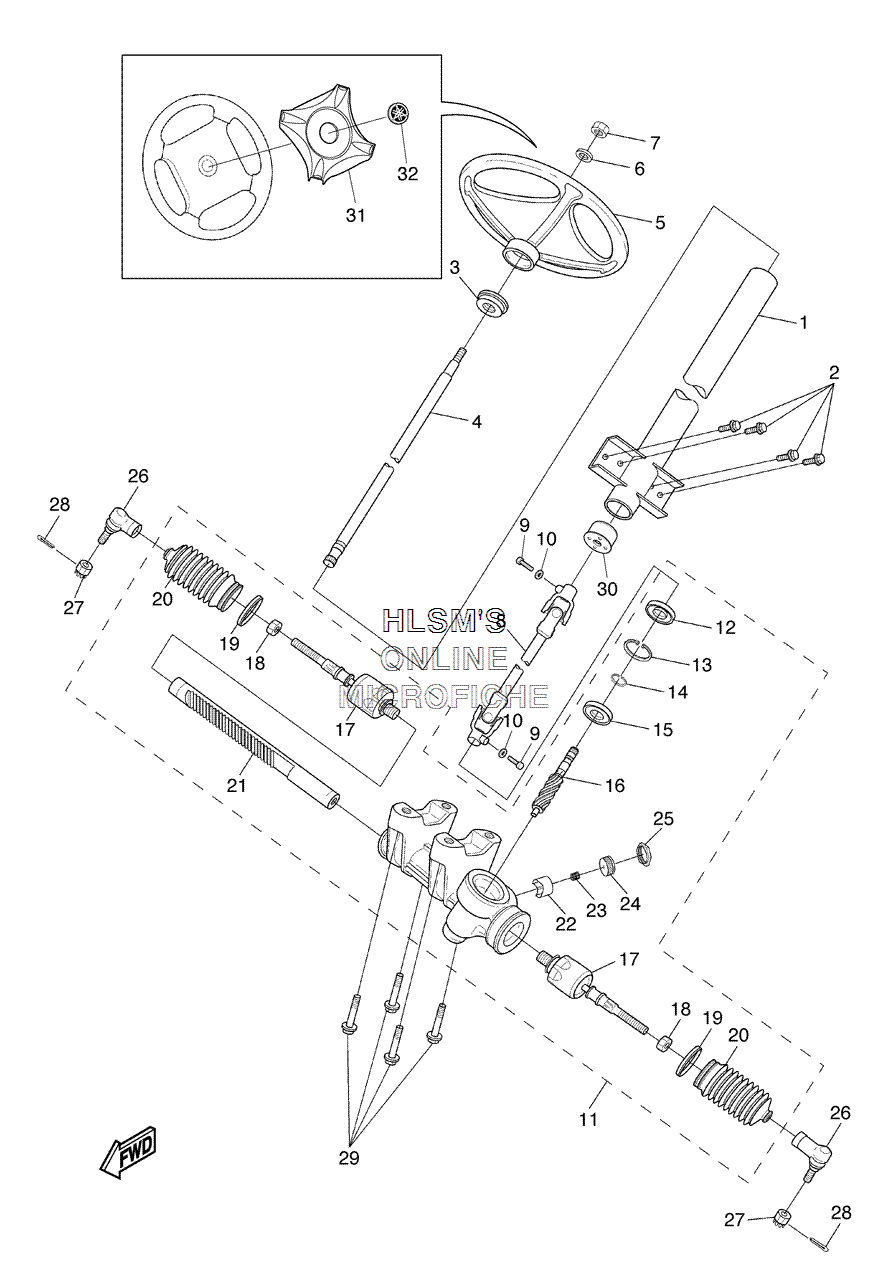

SUSPENSION - FRONT FORK для Yamaha PRO HAULER 700 - 2005 года выпуска
-
№АртикулНазвание
-
1JU0-F3811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
29581P-08016-00 BOLT, FLANGEBOLT, FLANGE
-
3JN3-F3814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
4JU0-F3828-00-00 ROD, STEERINGROD, STEERING
-
5JN3-F3838-00-00 WHEEL, STEERINGWHEEL, STEERING
-
69290P-12200-00 WASHERWASHER
-
790185-12061-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
8JU0-F3822-00-00 JOINT 1JOINT 1
-
997017-08030-00 BOLTBOLT
-
1092907-08600-00 WASHER, PLATEWASHER, PLATE
-
11JU7-F3400-00-00 STEERING ASSY.STEERING ASSY.
-
12JU0-F3844-00-00 ...SEAL...SEAL
-
13JU0-F387J-00-00 ...RING, STOPPER...RING, STOPPER
-
14JU0-F3183-00-00 ...CIRCLIP...CIRCLIP
-
15JU0-F339Y-00-00 ...BEARING...BEARING
-
16JU0-F387A-00-00 ...GEAR, PINION...GEAR, PINION
-
17JU7-F3837-00-00 ...ROD, TIE 2...ROD, TIE 2
-
18JU0-F3833-00-00 ...NUT 1...NUT 1
-
19JU0-F1338-00-00 ...CLAMP...CLAMP
-
20JU0-F3848-00-00 ...BOOT...BOOT
-
21JU0-F387E-00-00 ...GEAR, RACK...GEAR, RACK
-
22JU0-F387F-00-00 ...PAD, PRESSURE...PAD, PRESSURE
-
23JU0-F387K-00-00 ...SPRING, PRESSURE...SPRING, PRESSURE
-
24JU0-F387G-00-00 ...COVER, ADJUST...COVER, ADJUST
-
25JU0-F3834-00-00 ...NUT 2...NUT 2
-
26JU0-F3841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
2795607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2891401-25020-00 PIN, COTTERPIN, COTTER
-
2990105-10810-00 BOLT, FLANGEBOLT, FLANGE
-
30JU0-F3857-00-00 HOLDERHOLDER
-
315UG-F3818-00-00 COVER, STEERINGCOVER, STEERING
-
325FU-F175B-01-00 TUNING FORK MARKTUNING FORK MARK
