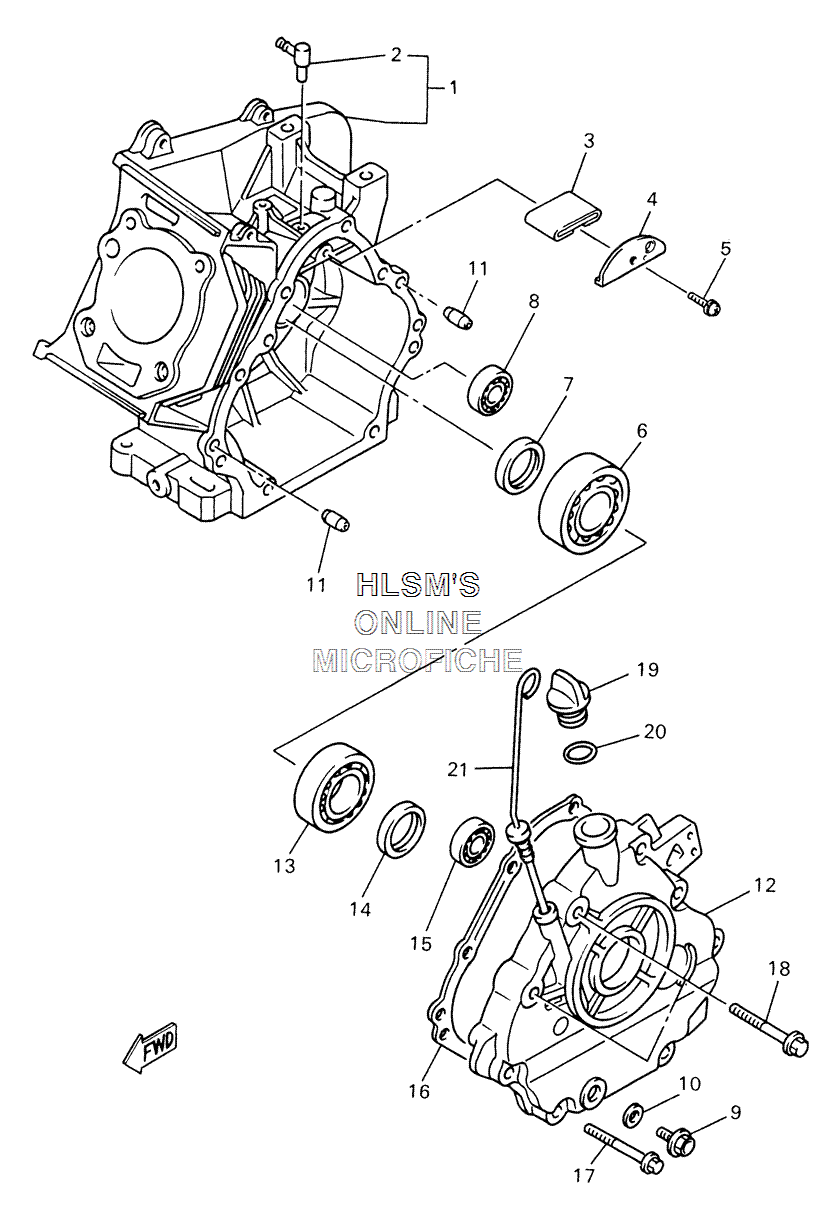

CRANKCASE ASSY. для Yamaha PRO HAULER 700 - 2005 года выпуска
-
№АртикулНазвание
-
1JR7-15100-00-00 CRANKCASE ASSY.CRANKCASE ASSY.
-
2JN6-15155-00-00 ...NOZZLE 3...NOZZLE 3
-
3JR7-15407-00-00 ELEMENT 1ELEMENT 1
-
4JR7-15123-00-00 PLATE, BUFFLE 1PLATE, BUFFLE 1
-
590159-06107-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
693306-30709-00 BEARINGBEARING
-
793102-35014-00 OIL SEALOIL SEAL
-
893306-20201-00 BEARING (B6202)BEARING (B6202)
-
990340-12097-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
10812-11198-00-00 GASKETGASKET
-
1199530-08016-00 PIN, DOWELPIN, DOWEL
-
12JN6-15411-01-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
1393306-20714-00 BEARINGBEARING
-
1493102-35014-00 OIL SEALOIL SEAL
-
1593306-20201-00 BEARING (B6202)BEARING (B6202)
-
16JN6-15451-02-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
1795817-08045-00 BOLT, FLANGEBOLT, FLANGE
-
1895817-10050-00 BOLT, FLANGEBOLT, FLANGE
-
19796-15363-01-00 PLUG, OILPLUG, OIL
-
2093210-22344-00 O-RINGO-RING
-
21J38-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
