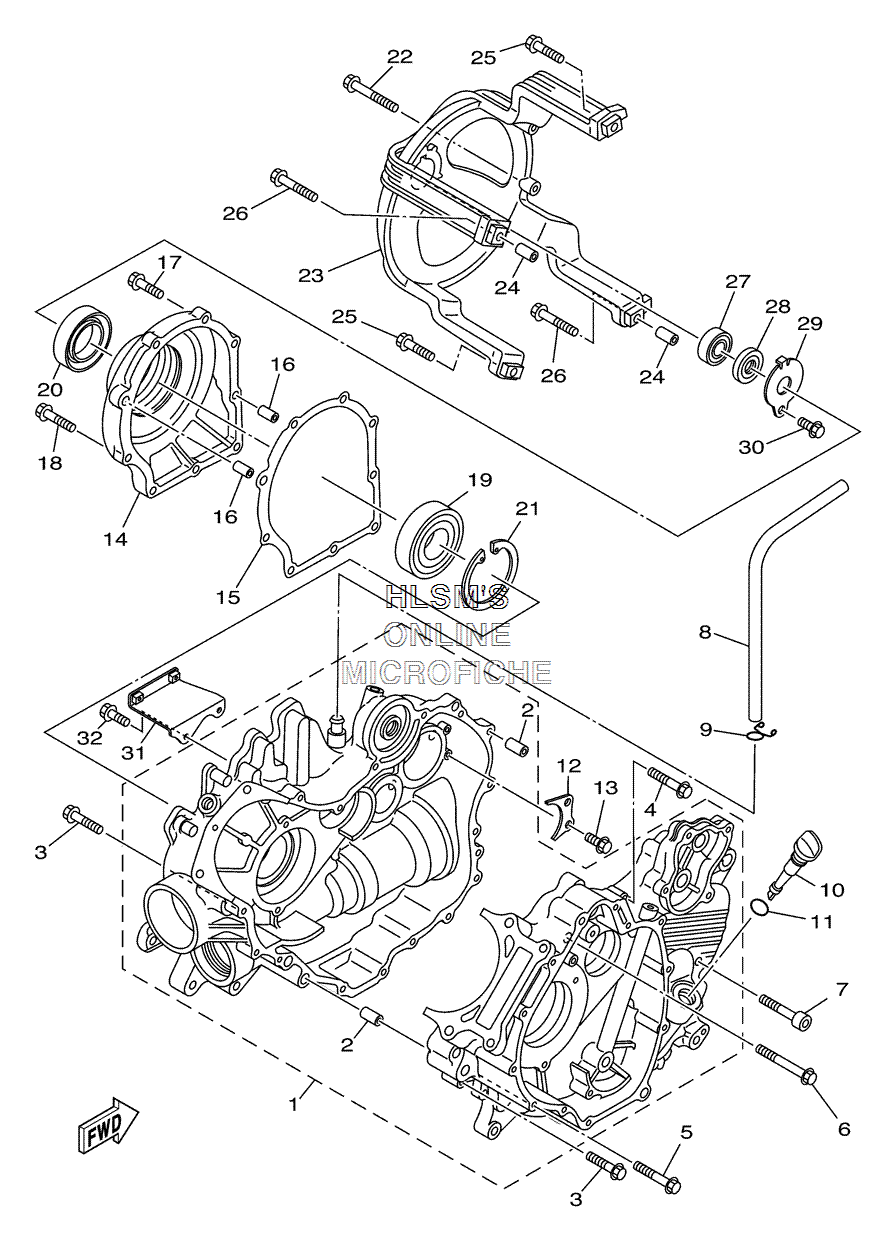

CRANKCASE ASSY. для Yamaha RHINO HUNTER - 2005 года выпуска
-
№АртикулНазвание
-
15KM-15100-11-00 CRANKCASE ASSY.CRANKCASE ASSY.
-
299530-10116-00 ...PIN, DOWEL...PIN, DOWEL
-
395027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
490105-06031-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
595027-06040-00 BOLT, FLANGEBOLT, FLANGE
-
695027-06055-00 BOLT, FLANGEBOLT, FLANGE
-
791317-08040-00 BOLTBOLT
-
85UG-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
990467-14015-00 CLIP, SCISSORCLIP, SCISSOR
-
105UG-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1193210-19026-00 O-RINGO-RING
-
124WV-15388-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1395027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
145KM-15163-00-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
155KM-15463-00-00 GASKET, CARBURETOR COVER 2GASKET, CARBURETOR COVER 2
-
1699530-10116-00 PIN, DOWELPIN, DOWEL
-
1795027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1895027-06040-00 BOLT, FLANGEBOLT, FLANGE
-
1993316-01003-00 BEARINGBEARING
-
2093102-35004-00 OIL SEALOIL SEAL
-
2199009-80500-00 CIRCLIPCIRCLIP
-
2295827-06050-00 BOLT, FLANGEBOLT, FLANGE
-
235KM-15442-00-00 HOUSING, BEARINGHOUSING, BEARING
-
2499530-10116-00 PIN, DOWELPIN, DOWEL
-
2595827-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2695827-06040-00 BOLT, FLANGEBOLT, FLANGE
-
2793306-20120-00 BEARINGBEARING
-
2893101-12168-00 OIL SEALOIL SEAL
-
294WV-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
3095027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
315UG-15199-00-00 BRACKETBRACKET
-
3295817-06016-00 BOLT, FLANGEBOLT, FLANGE
