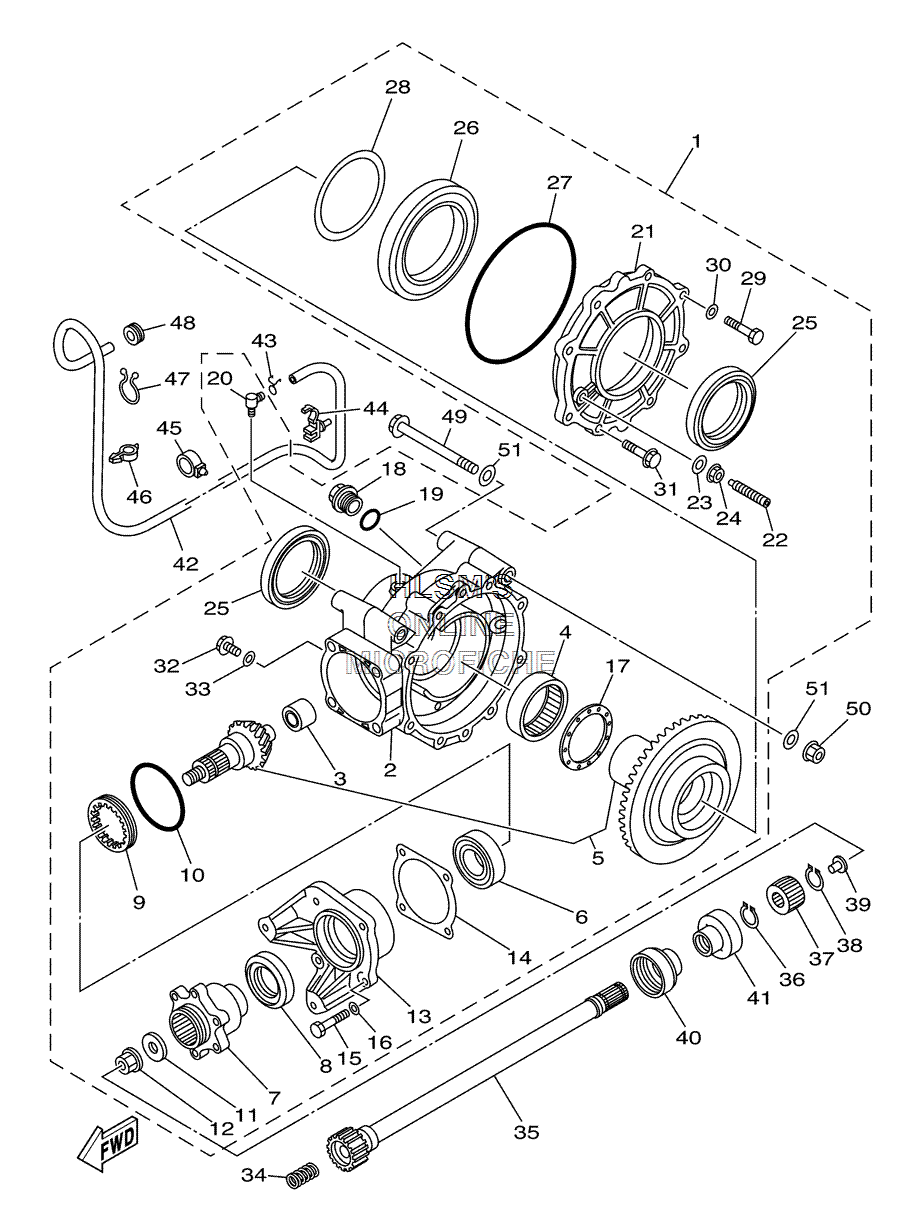

DRIVE SHAFT для Yamaha RHINO HUNTER - 2005 года выпуска
-
№АртикулНазвание
-
15UG-46101-01-00 REAR AXLE GEAR CASE ASSY.REAR AXLE GEAR CASE ASSY.
-
25UG-46151-01-00 ...HOUSING, DRIVE SHAFT...HOUSING, DRIVE SHAFT
-
35KM-46102-00-00 ...BEARING ASSY....BEARING ASSY.
-
493317-85569-00 ...BEARING, CYL.#17...BEARING, CYL.#17
-
55UG-Y4612-00-00 ...RING GEAR SET...RING GEAR SET
-
693306-30574-00 ...BEARING...BEARING
-
75UG-46212-00-00 ...BOSS, 1...BOSS, 1
-
893102-35009-00 ...OIL SEAL...OIL SEAL
-
990179-65305-00 ...NUT...NUT
-
1093210-626A7-00 ...O-RING...O-RING
-
1190201-12191-00 ...WASHER, PLATE...WASHER, PLATE
-
1290179-12325-00 ...NUT...NUT
-
135UG-46144-00-00 ...HOUSING, PINION BEARING...HOUSING, PINION BEARING
-
142HR-46127-00-25 ...SHIM, DRIVE PISTON (0.25T) (OPT)...SHIM, DRIVE PISTON (0.25T) (OPT)
-
142HR-46127-00-30 ...SHIM, DRIVE PISTON (0.30T) (OPT)...SHIM, DRIVE PISTON (0.30T) (OPT)
-
142HR-46127-00-35 ...SHIM, DRIVE PISTON (0.35T) (OPT)...SHIM, DRIVE PISTON (0.35T) (OPT)
-
142HR-46127-00-40 ...SHIM, DRIVE PISTON (0.40T) (OPT)...SHIM, DRIVE PISTON (0.40T) (OPT)
-
142HR-46127-00-45 ...SHIM, DRIVE PISTON (0.45T) (OPT)...SHIM, DRIVE PISTON (0.45T) (OPT)
-
142HR-46127-00-50 ...SHIM, DRIVE PISTON (0.50T) (OPT)...SHIM, DRIVE PISTON (0.50T) (OPT)
-
1597017-08035-00 ...BOLT...BOLT
-
1692907-08600-00 ...WASHER, PLATE...WASHER, PLATE
-
1724W-46118-00-12 ...WASHER, THRUST (1.2T) (OPT)...WASHER, THRUST (1.2T) (OPT)
-
1724W-46118-00-14 ...WASHER, THRUST (1.4T) (OPT)...WASHER, THRUST (1.4T) (OPT)
-
1724W-46118-00-16 ...WASHER, THRUST (1.6T) (OPT)...WASHER, THRUST (1.6T) (OPT)
-
1724W-46118-00-18 ...WASHER, THRUST (1.8T) (OPT)...WASHER, THRUST (1.8T) (OPT)
-
1724W-46118-00-20 ...WASHER, THRUST (2.0T) (OPT)...WASHER, THRUST (2.0T) (OPT)
-
1890340-20143-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
1993210-19123-00 ...O-RING...O-RING
-
205UG-15371-00-00 ...BREATHER...BREATHER
-
215KM-46152-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
222HR-46156-00-00 ...STOPPER, RING GEAR...STOPPER, RING GEAR
-
2390201-08087-00 ...WASHER, PLATE...WASHER, PLATE
-
2495707-08500-00 ...NUT, FLANGE...NUT, FLANGE
-
2593102-65008-00 ...OIL SEAL...OIL SEAL
-
2693316-01701-00 ...BEARING...BEARING
-
2793211-51749-00 ...O-RING...O-RING
-
2822U-46117-00-25 ...SHIM, RING GEAR (0.25T) (OPT)...SHIM, RING GEAR (0.25T) (OPT)
-
2822U-46117-00-30 ...SHIM, RING GEAR (0.30T) (OPT)...SHIM, RING GEAR (0.30T) (OPT)
-
2822U-46117-00-40 ...SHIM, RING GEAR (0.40T) (OPT)...SHIM, RING GEAR (0.40T) (OPT)
-
2997027-08025-00 ...BOLT...BOLT
-
3092907-08600-00 ...WASHER, PLATE...WASHER, PLATE
-
3195817-10025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3295027-10016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3390430-10171-00 ...GASKET...GASKET
-
3490501-200A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
355UG-G6172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3699009-19400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
375KM-46126-00-00 COUPLINGCOUPLING
-
3893410-22039-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
395KM-46559-00-00 DAMPERDAMPER
-
405KM-46137-00-00 SEAL 2SEAL 2
-
415KM-46136-00-00 SEAL 1SEAL 1
-
4290445-074F6-00 HOSE (L1300)HOSE (L1300)
-
4390467-07029-00 CLIP, SCISSORCLIP, SCISSOR
-
4490464-12830-00 CLAMPCLAMP
-
4590464-19815-00 CLAMPCLAMP
-
4690464-10833-00 CLAMPCLAMP
-
4790464-20804-00 CLAMPCLAMP
-
4890480-10517-00 GROMMETGROMMET
-
4990105-10111-00 BOLT, FLANGEBOLT, FLANGE
-
5095607-10200-00 NUT, U FLANGENUT, U FLANGE
-
5190201-101J1-00 WASHER, PLATEWASHER, PLATE
