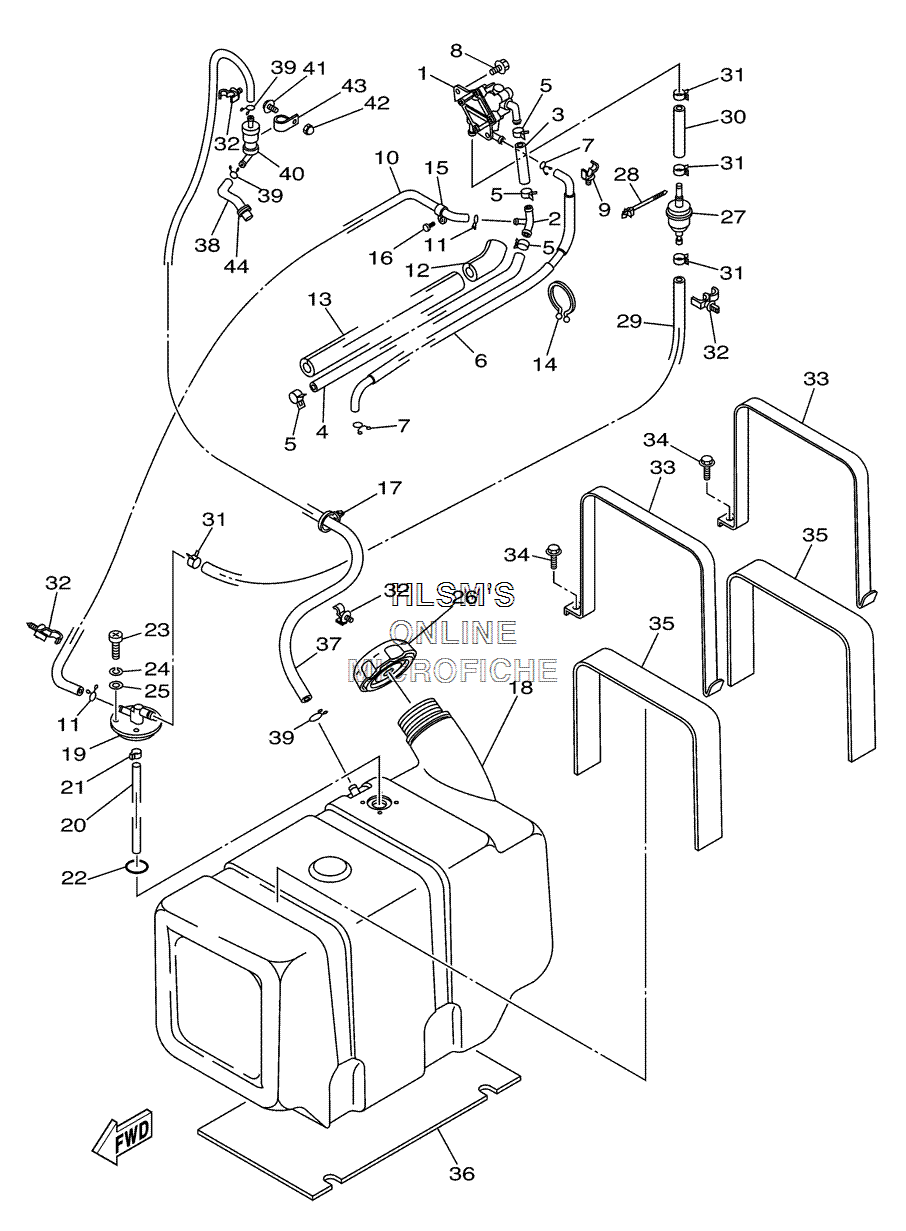

FUEL TANK ASSY. для Yamaha RHINO HUNTER - 2005 года выпуска
-
№АртикулНазвание
-
15UG-13910-00-00 FUEL PUMP ASSY.FUEL PUMP ASSY.
-
290413-09001-00 WAY 3WAY 3
-
35UG-14294-00-00 HOSEHOSE
-
45UG-14295-00-00 PIPE, FUELPIPE, FUEL
-
590467-12053-00 CLIP, SCISSORCLIP, SCISSOR
-
65UG-E3895-00-00 HOSE, AIRHOSE, AIR
-
790467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
895027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
990464-12830-00 CLAMPCLAMP
-
105UG-14298-00-00 PIPEPIPE
-
1190467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
125UG-14271-00-00 INSULATORINSULATOR
-
135UG-14271-50-00 INSULATORINSULATOR
-
1490464-23041-00 CLAMPCLAMP
-
1590464-11803-00 CLAMPCLAMP
-
1690338-05834-00 PLUGPLUG
-
1790464-25826-00 CLAMPCLAMP
-
185UG-F4111-01-00 TANK, FUELTANK, FUEL
-
195UG-24461-00-00 PIPE, JOINTPIPE, JOINT
-
20JN3-F4313-00-00 PIPE 3PIPE 3
-
2190467-07815-00 CLIP, SCISSORCLIP, SCISSOR
-
2293210-228C4-00 O-RINGO-RING
-
2398507-05014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2492907-05100-00 WASHER, SPRINGWASHER, SPRING
-
2592907-05600-00 WASHER, PLATEWASHER, PLATE
-
265UG-24610-00-00 CAP ASSY.CAP ASSY.
-
27JN6-F4560-00-00 FILTER ASSY.FILTER ASSY.
-
2890464-38800-00 CLAMPCLAMP
-
295UG-F4311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
305UG-F4313-00-00 PIPE 3PIPE 3
-
3190467-12053-00 CLIP, SCISSORCLIP, SCISSOR
-
3290464-12830-00 CLAMPCLAMP
-
335UG-F4157-00-00 STAY, FUEL TANK 1STAY, FUEL TANK 1
-
3490105-08878-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
355UG-F414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
365UG-F414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
375UG-24312-00-00 PIPE 2PIPE 2
-
385UG-24313-00-00 PIPE 3PIPE 3
-
3990467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
405RB-24180-00-00 ROLL OVER VALVE ASSY.ROLL OVER VALVE ASSY.
-
4198907-05010-00 SCREW, BINDSCREW, BIND
-
4290176-05054-00 NUT, CROWNNUT, CROWN
-
4390461-15139-00 CLAMPCLAMP
-
4490480-15058-00 GROMMETGROMMET
