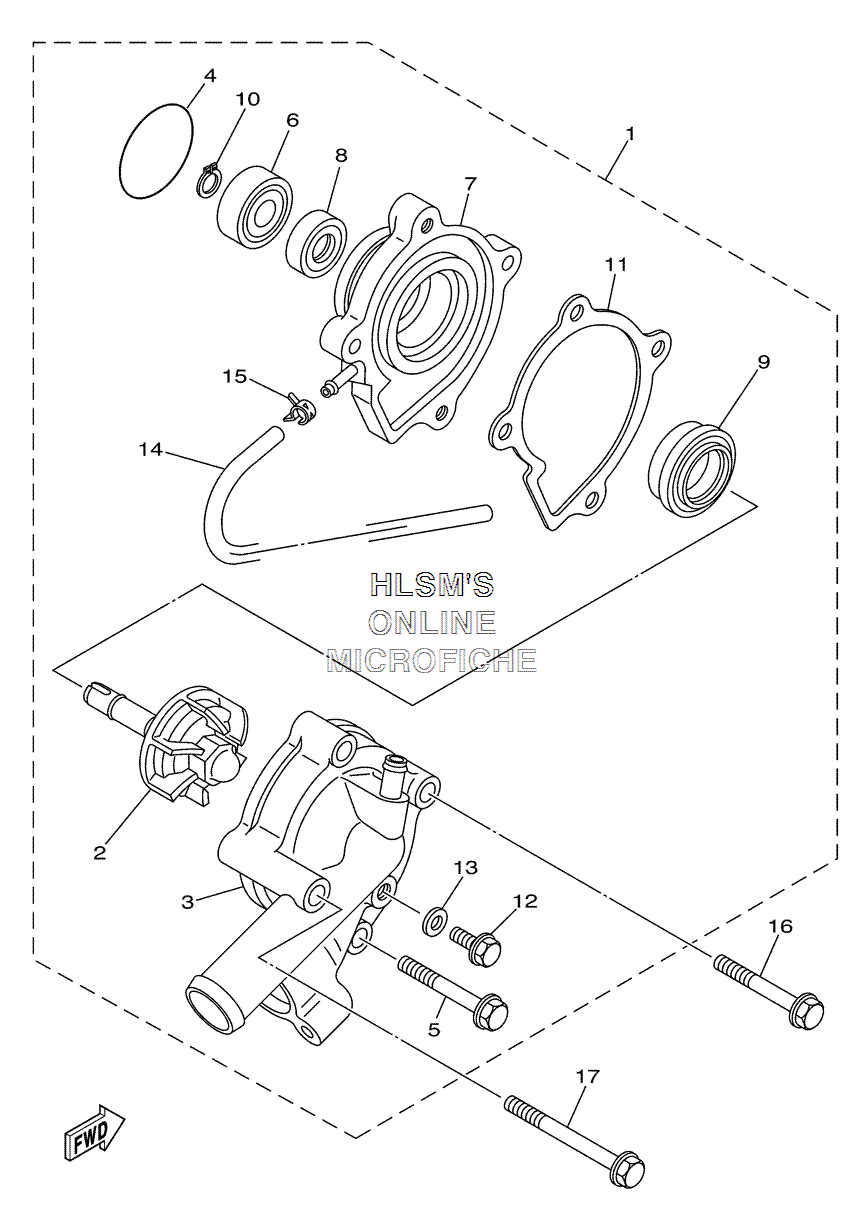

WATER PUMP ASSY. для Yamaha RHINO HUNTER - 2005 года выпуска
-
№АртикулНазвание
-
15KM-12420-10-00 WATER PUMP ASSY.WATER PUMP ASSY.
-
25KM-12450-10-00 ...IMPELLER SHAFT ASSY....IMPELLER SHAFT ASSY.
-
35KM-12422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
493210-33133-00 ...O-RING...O-RING
-
590105-06023-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
693306-00006-00 ...BEARING...BEARING
-
75KM-12421-00-00 ...HOUSING, WATER PUMP...HOUSING, WATER PUMP
-
893101-10090-00 ...OIL SEAL, S-TYPE...OIL SEAL, S-TYPE
-
911H-12438-10-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
1099009-10400-00 ...CIRCLIP...CIRCLIP
-
115KM-12428-00-00 ...GASKET, HOUSING COVER 2...GASKET, HOUSING COVER 2
-
1295027-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1390430-06014-00 ...GASKET...GASKET
-
1490446-06001-00 ...HOSE (L300)...HOSE (L300)
-
1590467-06194-00 ...CLIP...CLIP
-
1695027-06045-00 BOLT, FLANGEBOLT, FLANGE
-
1795027-06065-00 BOLT, FLANGEBOLT, FLANGE
