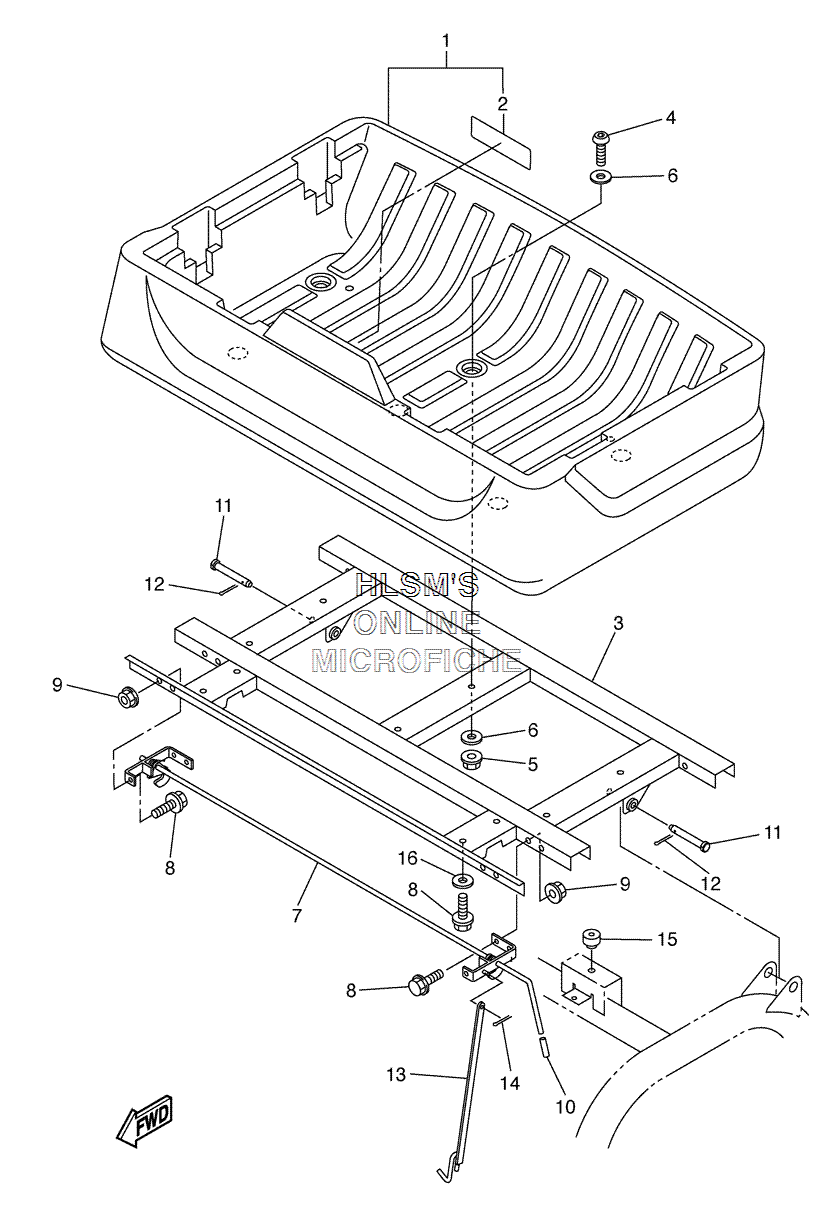

CARRIER для Yamaha PRO HAULER 700 2WD - 2006 года выпуска
-
№АртикулНазвание
-
1JU7-K819J-00-00 SHELL, RR. STORAGE BOXSHELL, RR. STORAGE BOX
-
2JU7-K7766-00-00 ...LABEL, WARNING 6...LABEL, WARNING 6
-
3JU7-K818N-00-00 BED, BOXBED, BOX
-
490111-10800-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
59560P-10200-00 NUT, FLANGENUT, FLANGE
-
690201-10830-00 WASHER, PLATEWASHER, PLATE
-
7JU7-K8380-00-00 LOCK ASSY.LOCK ASSY.
-
89582P-08020-00 BOLT, FLANGEBOLT, FLANGE
-
99560P-08200-00 NUTNUT
-
10JJ3-K818M-00-00 CAP, PROTECTOR END 4CAP, PROTECTOR END 4
-
1190240-13801-00 PIN, CLEVISPIN, CLEVIS
-
1291401-30025-00 PIN, COTTERPIN, COTTER
-
13JU7-K8158-00-00 ROD, INSPECTION LIDROD, INSPECTION LID
-
1491401-20020-00 PIN, COTTERPIN, COTTER
-
154XE-F4747-00-00 DAMPER, SEATDAMPER, SEAT
-
1690201-088P7-00 WASHER, PLATEWASHER, PLATE
