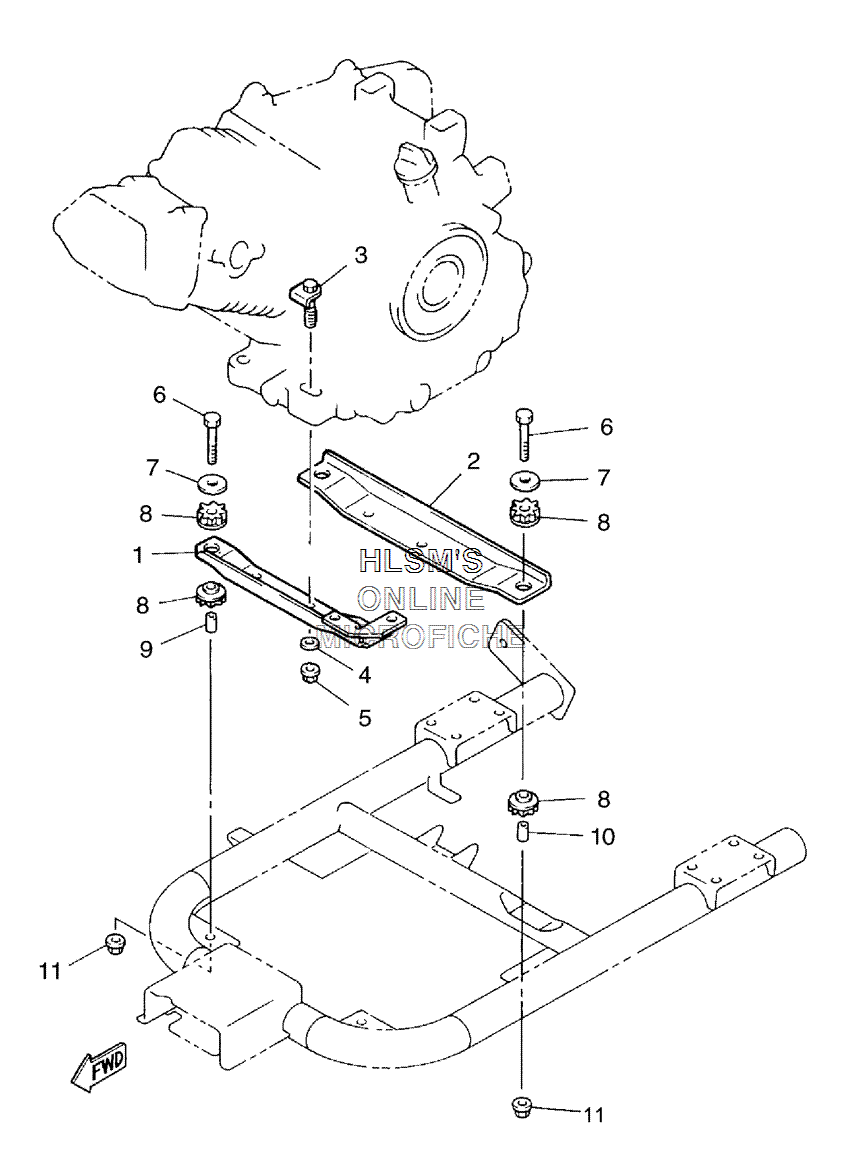

ENGINE BRACKET для Yamaha PRO HAULER 700 2WD - 2006 года выпуска
-
№АртикулНазвание
-
1JN6-F1411-00-00 BRACKET, ENGINE 1BRACKET, ENGINE 1
-
2JN6-F1419-02-00 BRACKET, ENGINE 2BRACKET, ENGINE 2
-
3JN6-F1481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
49290P-10200-00 WASHERWASHER
-
59560P-10200-00 NUT, FLANGENUT, FLANGE
-
690101-08870-00 BOLTBOLT
-
790201-088K6-00 WASHER, PLATEWASHER, PLATE
-
8JN6-F1486-10-00 DAMPER 2DAMPER 2
-
9JN6-F1459-00-00 SPACERSPACER
-
10JN6-F1459-10-00 SPACERSPACER
-
1190179-08885-00 NUTNUT
