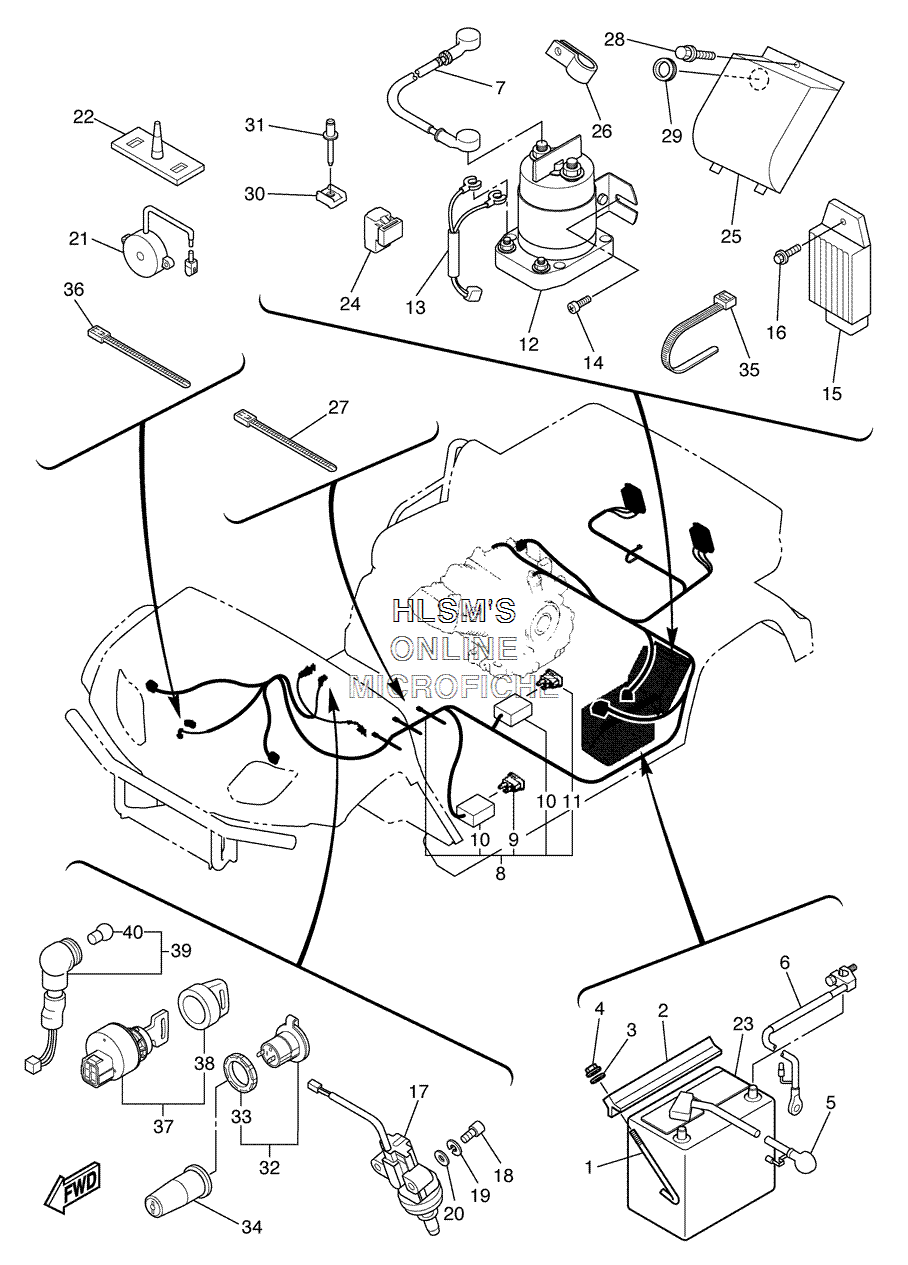

ELECTRICAL 2 для Yamaha PRO HAULER 700 2WD - 2006 года выпуска
-
№АртикулНазвание
-
1JN3-H2133-00-00 SCREW, FITTINGSCREW, FITTING
-
2J55-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
39290P-06200-00 WASHERWASHER
-
495707-06500-00 NUT, FLANGENUT, FLANGE
-
5JU7-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
6JN6-H2116-01-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
7JU7-H2117-00-00 WIRE, LEADWIRE, LEAD
-
8JW4-H2590-02-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
9JN6-H2151-00-00 ...FUSE (10 A)...FUSE (10 A)
-
10JR1-H2150-00-00 ...FUSE HOLDER ASSY....FUSE HOLDER ASSY.
-
11JU7-H2151-00-00 ...FUSE (20 A)...FUSE (20 A)
-
12JR3-H1950-00-00 RELAY ASSY.RELAY ASSY.
-
13JN6-H2105-00-00 WIRE HARNESSWIRE HARNESS
-
1490163-06005-00 SCREW, TAPPINGSCREW, TAPPING
-
15JF2-81910-01-00 VOLTAGE REGULATOR ASSY.VOLTAGE REGULATOR ASSY.
-
1690105-06876-00 BOLT, FLANGEBOLT, FLANGE
-
17JF7-82817-20-00 SWITCHSWITCH
-
1898507-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1992907-05100-00 WASHER, SPRINGWASHER, SPRING
-
2092907-05600-00 WASHER, PLATEWASHER, PLATE
-
21JR1-H3383-01-00 BUZZERBUZZER
-
22JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
23JG5-H2110-01-00 BATTERY ASSY.BATTERY ASSY.
-
244U8-81950-02-00 RELAY ASSY.RELAY ASSY.
-
25JN6-H1942-00-00 COVERCOVER
-
2690461-16802-00 CLAMPCLAMP
-
2790464-40825-00 CLAMPCLAMP
-
2890105-06876-00 BOLT, FLANGEBOLT, FLANGE
-
2990480-25856-00 GROMMETGROMMET
-
3090207-05800-00 WASHER, FINISHWASHER, FINISH
-
3190267-489U9-00 RIVET, BLINDRIVET, BLIND
-
325FU-H1920-10-00 TERMINAL ASSY.TERMINAL ASSY.
-
335FU-H191B-10-00 ...NUT...NUT
-
345FU-H2599-01-00 COVER, CONNECTERCOVER, CONNECTER
-
3590464-14806-00 CLAMPCLAMP
-
3690464-31827-00 CLAMPCLAMP
-
37JU6-H2510-01-00 MAIN SWITCH ASSY.MAIN SWITCH ASSY.
-
385UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
39JN6-83530-00-00 PILOT LIGHT ASSY.PILOT LIGHT ASSY.
