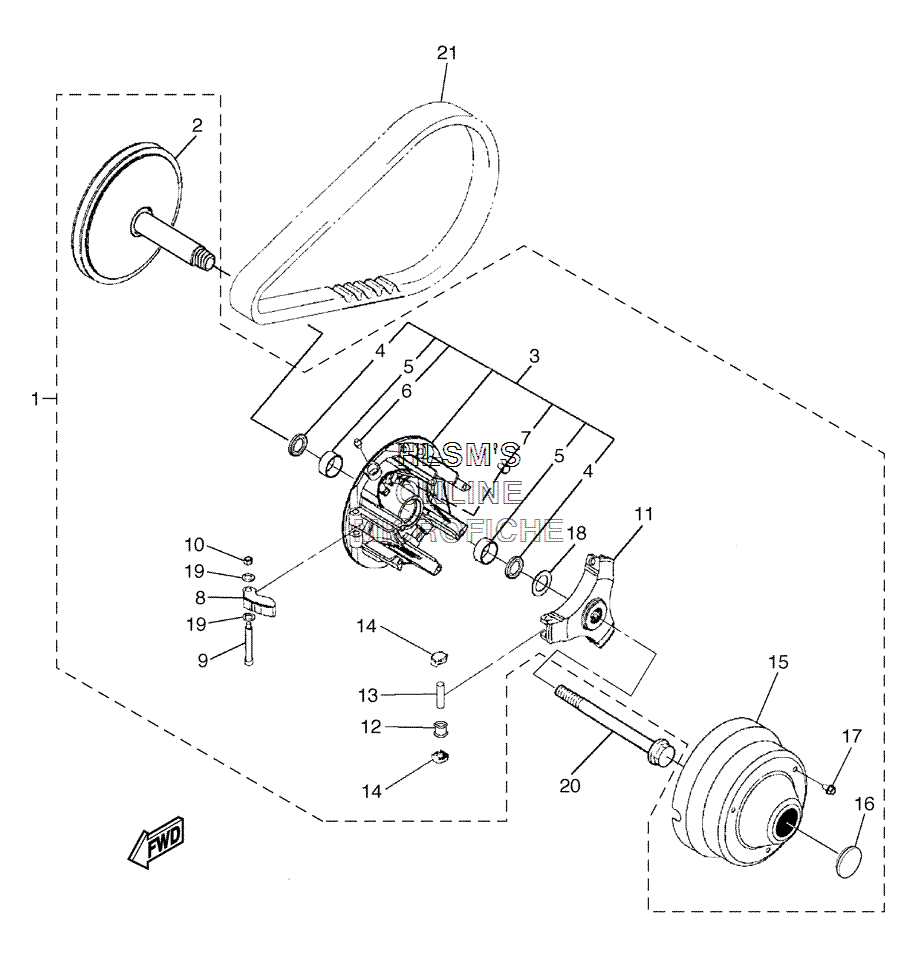

PRIMARY SHEAVE для Yamaha PRO HAULER 700 2WD - 2006 года выпуска
-
№АртикулНазвание
-
1JN6-G6201-04-00 PRIMARY FIXED SHEAVE ASSY.PRIMARY FIXED SHEAVE ASSY.
-
2JN6-G6210-00-00 ...PRIMARY FIXED SHEAVE COMP....PRIMARY FIXED SHEAVE COMP.
-
3JN6-G6220-00-00 ...PRIMARY SLIDING SHEAVE COMP....PRIMARY SLIDING SHEAVE COMP.
-
493101-28831-00 ...OIL SEAL...OIL SEAL
-
590384-27823-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
693700-06810-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
790338-04840-00 ...PLUG...PLUG
-
8JN6-G6232-01-00 ...WEIGHT 1...WEIGHT 1
-
990109-06860-00 ...BOLT...BOLT
-
1090185-06834-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
11JN6-G6251-01-00 ...SPIDER...SPIDER
-
12JN6-G6258-02-00 ...COLLAR, ROLLER...COLLAR, ROLLER
-
1393610-358A3-00 ...PIN, DOWEL...PIN, DOWEL
-
14JN6-G6253-00-00 ...SLIDER...SLIDER
-
15JU0-G6231-00-00 ...CAP...CAP
-
16JU0-G6297-00-00 ...COVER, DUST...COVER, DUST
-
1790105-06861-00 ...BOLT,WASHER BASED...BOLT,WASHER BASED
-
1890201-228K5-00 ...WASHER, PLATE...WASHER, PLATE
-
19JN6-G621F-00-00 ...SHIM, THRUST...SHIM, THRUST
-
20JN6-G6249-00-00 BOLTBOLT
-
21J55-G6241-00-00 V-BELTV-BELT
