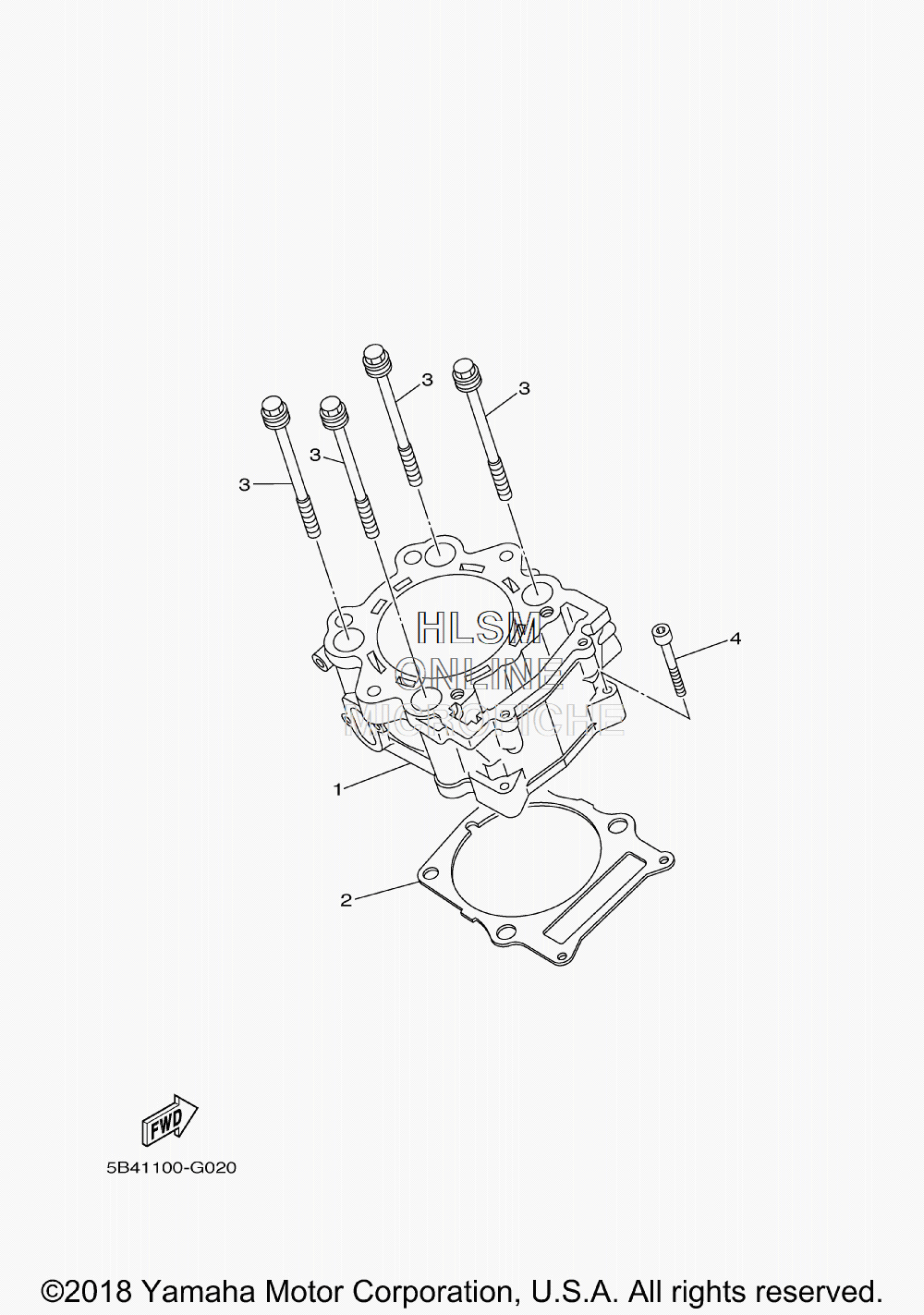

CYLINDER для Yamaha VIKING VI EPS RANCH EDITION - 2019 года выпуска
-
№АртикулНазвание
-
13B4-11311-10-00 CYLINDER 1CYLINDER 1
-
21S3-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
390119-10023-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
491312-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
