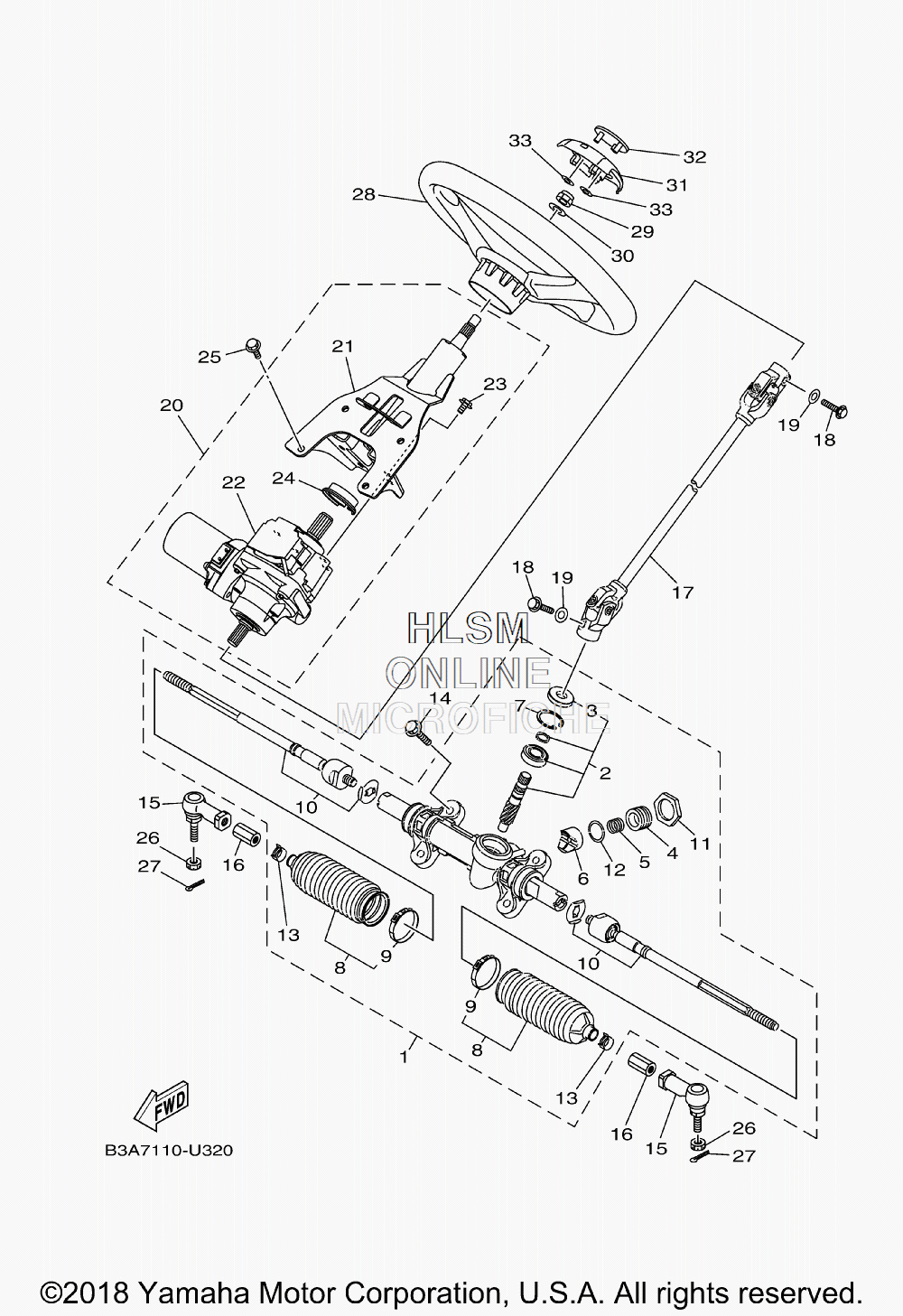

STEERING для Yamaha VIKING VI EPS RANCH EDITION - 2019 года выпуска
-
№АртикулНазвание
-
12PG-F3400-01-00 STEERING ASSYSTEERING ASSY
-
22PG-F38G0-00-00 ...STEERING PINION SET...STEERING PINION SET
-
31XD-F3844-00-00 ......SEAL......SEAL
-
41XD-F387G-00-00 ...COVER, ADJUST...COVER, ADJUST
-
51XD-F387K-00-00 ...SPRING, PRESSURE...SPRING, PRESSURE
-
61XD-F387F-00-00 ...PAD, PRESSURE...PAD, PRESSURE
-
71XD-F387J-00-00 ...RING, STOPPER...RING, STOPPER
-
81XD-F1208-00-00 ...SEAL SET, 1...SEAL SET, 1
-
91XD-F3489-00-00 ......BAND......BAND
-
101XD-F38H0-00-00 ...RACK END SET...RACK END SET
-
111XD-F178K-00-00 ...LOCK ASSY...LOCK ASSY
-
121XD-F3165-00-00 ...WASHER, FELT...WASHER, FELT
-
131XD-F3447-00-00 ...CLIP...CLIP
-
1495022-10030-00 BOLT, FLANGEBOLT, FLANGE
-
15B42-23841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
162PG-F3833-00-00 NUT 1NUT 1
-
171XD-F3840-00-00 STEERING SHAFT ASSYSTEERING SHAFT ASSY
-
1891312-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990201-083P5-00 WASHER, PLATEWASHER, PLATE
-
20B3D-23810-00-00 STEERING COLUMN ASSYSTEERING COLUMN ASSY
-
21B3D-23813-00-00 ...COLUMN, STEERING 2...COLUMN, STEERING 2
-
222HC-238B0-00-00 ...POWER STRG. ACTUATOR ASSY...POWER STRG. ACTUATOR ASSY
-
2395812-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
242MB-2384L-00-00 ...COVER, DUST...COVER, DUST
-
2595812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2690171-12001-00 NUT, CASTLENUT, CASTLE
-
2791402-20020-00 PIN, COTTERPIN, COTTER
-
282HC-F3838-01-00 WHEEL, STEERINGWHEEL, STEERING
-
2990185-12008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3092902-12200-00 WASHERWASHER
-
312HC-F3818-00-00 COVER, STEERINGCOVER, STEERING
-
321XD-F175B-01-00 TUNING FORK MARKTUNING FORK MARK
-
3390183-06071-00 NUT, SPRINGNUT, SPRING
