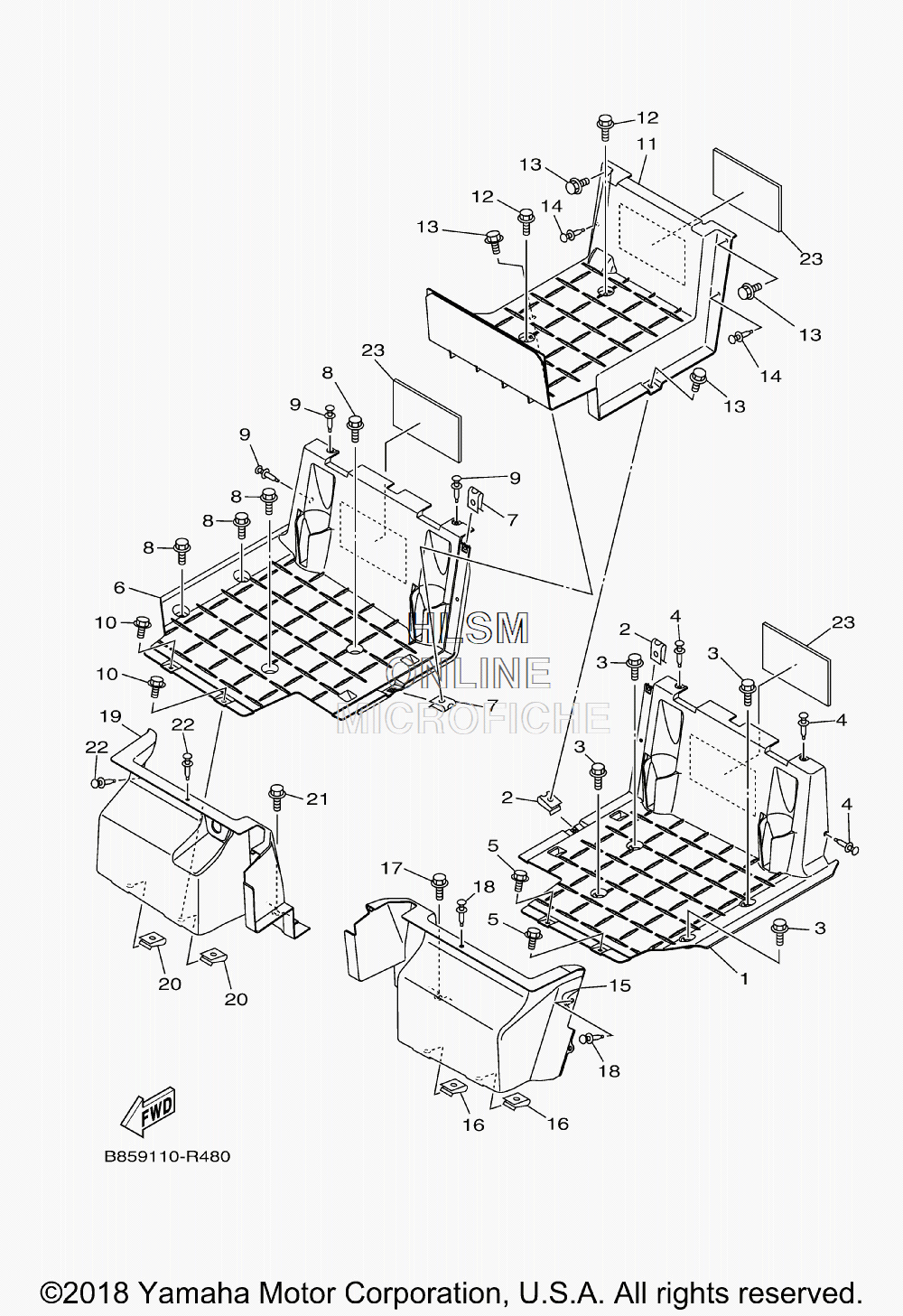

FOOTREST - REAR для Yamaha VIKING VI EPS RANCH EDITION - 2019 года выпуска
-
№АртикулНазвание
-
12PG-F7431-00-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
290183-060A6-00 NUT, SPRINGNUT, SPRING
-
3JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
490269-07805-00 RIVETRIVET
-
590119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
62PG-F7441-00-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
790183-060A6-00 NUT, SPRINGNUT, SPRING
-
8JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
990269-07805-00 RIVETRIVET
-
1090119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
112PG-F7423-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
12JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
1390119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1490269-07805-00 RIVETRIVET
-
152PG-F7433-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
1690183-060A6-00 NUT, SPRINGNUT, SPRING
-
17JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
1890269-07805-00 RIVETRIVET
-
192PG-F7444-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
2090183-060A6-00 NUT, SPRINGNUT, SPRING
-
21JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
2290269-07805-00 RIVETRIVET
-
23B42-2174X-00-00 DAMPERDAMPER
