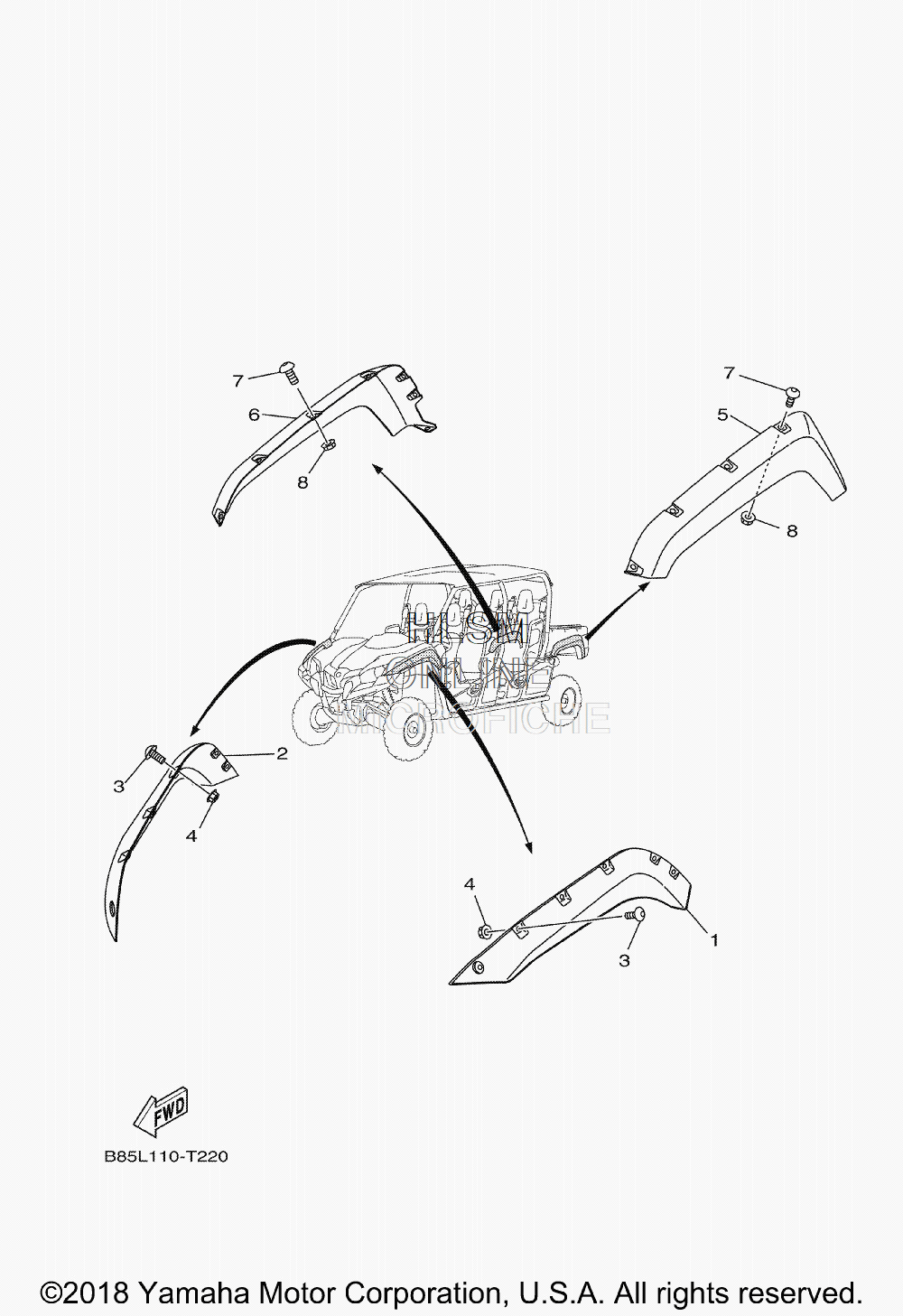

FENDERS - FRONT AND REAR для Yamaha VIKING VI EPS RANCH EDITION - 2019 года выпуска
-
№АртикулНазвание
-
11XP-F1551-00-00 FENDER, OVERFENDER, OVER
-
21XP-F1555-00-00 FENDER, OVER 2FENDER, OVER 2
-
390110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
51XP-F1559-00-00 FENDER, OVER 3FENDER, OVER 3
-
61XP-F1560-00-00 FENDER, OVER 4FENDER, OVER 4
-
790110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
895602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
