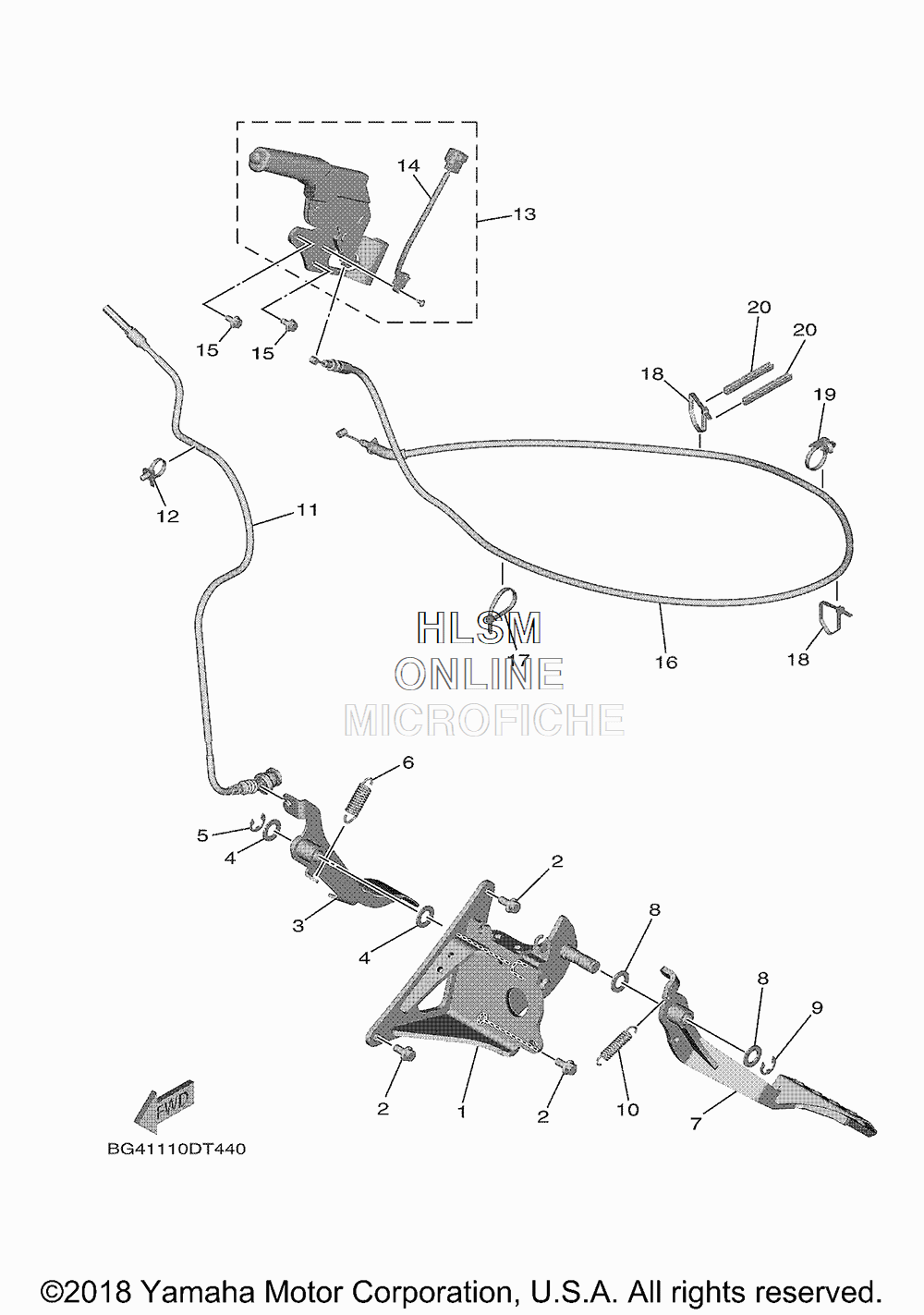

BRAKE - BRAKE SYSTEM для Yamaha WOLVERINE X2 R-SPEC EPS - 2019 года выпуска
-
№АртикулНазвание
-
11XD-F2548-10-00 BRACKET, PEDAL SUPPORTBRACKET, PEDAL SUPPORT
-
295812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
31XD-F7801-00-00 ACCEL PEDAL ASSYACCEL PEDAL ASSY
-
490201-15018-00 WASHER, PLATEWASHER, PLATE
-
593430-12008-00 CIRCLIPCIRCLIP
-
690506-23023-00 SPRING, TENSIONSPRING, TENSION
-
71XD-F7200-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
890201-15018-00 WASHER, PLATEWASHER, PLATE
-
993430-12008-00 CIRCLIPCIRCLIP
-
1090506-20192-00 SPRING, TENSIONSPRING, TENSION
-
11BG4-26311-02-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
125B4-F1338-00-00 CLAMPCLAMP
-
131XD-F5690-01-00 PARKING LEVER ASSYPARKING LEVER ASSY
-
145UG-H251S-00-00 ...SWITCH COMP....SWITCH COMP.
-
1595812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
16BG4-26341-01-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
1790464-40825-00 CLAMPCLAMP
-
1890464-48800-00 CLAMPCLAMP
-
195B4-F1338-00-00 CLAMPCLAMP
-
2031A-24188-01-00 MOLD, FUEL TANKMOLD, FUEL TANK
