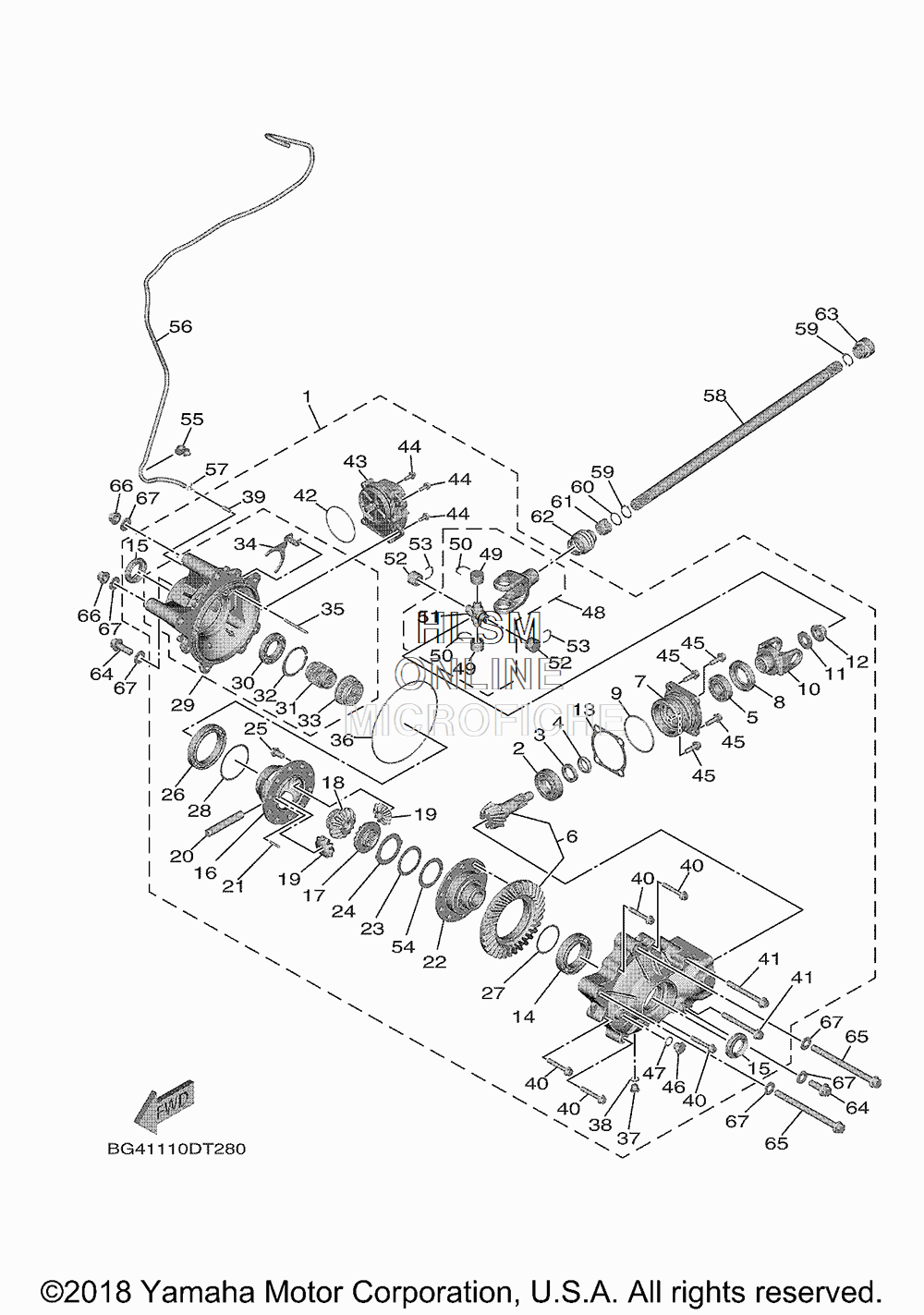

DIFFERENTIAL - FRONT для Yamaha WOLVERINE X2 R-SPEC EPS - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-46160-00-00 FRONT AXLE GEAR CASE COMP.FRONT AXLE GEAR CASE COMP.
-
293332-00046-00 ...BEARING...BEARING
-
390201-25634-00 ...WASHER, PLATE...WASHER, PLATE
-
43B4-46129-00-00 ...SPACER, EXPANSION...SPACER, EXPANSION
-
593332-00053-00 ...BEARING...BEARING
-
6BG4-45550-00-00 ...GEAR SET...GEAR SET
-
7BG4-46144-00-00 ...HOUSING, PINION BEARING...HOUSING, PINION BEARING
-
893102-35380-00 ...OIL SEAL...OIL SEAL
-
993210-626A7-00 ...O-RING...O-RING
-
10BG4-46146-00-00 ...YOKE, JOINT 2...YOKE, JOINT 2
-
1190201-165H4-00 ...WASHER, PLATE...WASHER, PLATE
-
1290179-16004-00 ...NUT...NUT
-
132HR-46127-00-25 ...SHIM, DRIVE PISTON (0.25T) (OPT)...SHIM, DRIVE PISTON (0.25T) (OPT)
-
132HR-46127-00-30 ...SHIM, DRIVE PISTON (0.30T) (OPT)...SHIM, DRIVE PISTON (0.30T) (OPT)
-
132HR-46127-00-35 ...SHIM, DRIVE PISTON (0.35T) (OPT)...SHIM, DRIVE PISTON (0.35T) (OPT)
-
132HR-46127-00-40 ...SHIM, DRIVE PISTON (0.40T) (OPT)...SHIM, DRIVE PISTON (0.40T) (OPT)
-
132HR-46127-00-45 ...SHIM, DRIVE PISTON (0.45T) (OPT)...SHIM, DRIVE PISTON (0.45T) (OPT)
-
132HR-46127-00-50 ...SHIM, DRIVE PISTON (0.50T) (OPT)...SHIM, DRIVE PISTON (0.50T) (OPT)
-
1493306-01006-00 ...BEARING...BEARING
-
1593102-30017-00 ...OIL SEAL...OIL SEAL
-
16BG4-46412-00-00 ...CASE, DIFFERENTIAL 2...CASE, DIFFERENTIAL 2
-
17BG4-48232-00-00 ...GEAR (14T)...GEAR (14T)
-
18BG4-48233-00-00 ...GEAR 2 (14T)...GEAR 2 (14T)
-
19BG4-46415-00-00 ...PINION, DIFFERENTIAL (10T)...PINION, DIFFERENTIAL (10T)
-
20BG4-46417-00-00 ...PIN, DIFFERENTIAL...PIN, DIFFERENTIAL
-
2191609-40025-00 ...PIN, SPRING...PIN, SPRING
-
22BG4-46411-00-00 ...CASE, DIFFERENTIAL...CASE, DIFFERENTIAL
-
23BG4-42524-00-00 ...SPRING...SPRING
-
24BG4-42525-00-00 ...PLATE, FRICTION...PLATE, FRICTION
-
2590105-10468-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2693306-91301-00 ...BEARING...BEARING
-
27BG4-46344-00-00 ...SHIM (0.25T) (OPT)...SHIM (0.25T) (OPT)
-
27BG4-46344-10-00 ...SHIM (0.30T) (OPT)...SHIM (0.30T) (OPT)
-
27BG4-46344-20-00 ...SHIM (0.35T) (OPT)...SHIM (0.35T) (OPT)
-
27BG4-46344-30-00 ...SHIM (0.40T) (OPT)...SHIM (0.40T) (OPT)
-
27BG4-46344-40-00 ...SHIM (0.45T) (OPT)...SHIM (0.45T) (OPT)
-
27BG4-46344-50-00 ...SHIM (0.50T) (OPT)...SHIM (0.50T) (OPT)
-
28BG4-46117-00-00 ...SHIM, RING GEAR (0.25T) (OPT)...SHIM, RING GEAR (0.25T) (OPT)
-
28BG4-46117-10-00 ...SHIM, RING GEAR (0.30T) (OPT)...SHIM, RING GEAR (0.30T) (OPT)
-
28BG4-46117-20-00 ...SHIM, RING GEAR (0.35T) (OPT)...SHIM, RING GEAR (0.35T) (OPT)
-
28BG4-46117-30-00 ...SHIM, RING GEAR (0.40T) (OPT)...SHIM, RING GEAR (0.40T) (OPT)
-
28BG4-46117-40-00 ...SHIM, RING GEAR (0.45T) (OPT)...SHIM, RING GEAR (0.45T) (OPT)
-
28BG4-46117-50-00 ...SHIM, RING GEAR (0.50T) (OPT)...SHIM, RING GEAR (0.50T) (OPT)
-
29BG4-46150-00-00 ...DRIVE SHAFT HOUSING COMP....DRIVE SHAFT HOUSING COMP.
-
3093316-00702-00 ......BEARING......BEARING
-
31BG4-46451-00-00 ......ADAPTER......ADAPTER
-
3299009-62500-00 ......CIRCLIP......CIRCLIP
-
33BG4-45816-00-00 ......CLUTCH, DOG......CLUTCH, DOG
-
34BG4-45682-00-00 ......FORK, SHIFT 2......FORK, SHIFT 2
-
35BG4-45692-00-00 ......SHAFT, SHIFT......SHAFT, SHIFT
-
3693211-63688-00 ...O-RING...O-RING
-
3790340-12007-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
3890430-12219-00 ...GASKET...GASKET
-
39137-13115-01-00 ...CONNECTOR, SUCTION PIPE...CONNECTOR, SUCTION PIPE
-
4095812-08050-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4195812-10090-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4293210-72300-00 ...O-RING...O-RING
-
43BG4-4616A-00-00 ...SERVO MOTOR COMP...SERVO MOTOR COMP
-
4495812-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4595812-08025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4690340-14029-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
47214-11198-01-00 ...GASKET...GASKET
-
48BG4-46108-00-00 ...CROSS JOINT COMP. 3...CROSS JOINT COMP. 3
-
4993399-99965-00 ......BEARING......BEARING
-
5093440-23197-00 ......CIRCLIP......CIRCLIP
-
511YW-46187-10-00 ......SPIDER......SPIDER
-
5293399-99965-00 ...BEARING...BEARING
-
5393440-23197-00 ...CIRCLIP...CIRCLIP
-
5490201-46014-00 ...WASHER, PLATE...WASHER, PLATE
-
5590464-12830-00 CLAMP (D: 12MM)CLAMP (D: 12MM)
-
5690445-080K8-00 HOSE (L1200)HOSE (L1200)
-
5790467-08075-00 CLIPCLIP
-
58BG4-46173-00-00 SHAFT, DRIVE 2SHAFT, DRIVE 2
-
5999009-22400-00 CIRCLIPCIRCLIP
-
6090201-22793-00 WASHER, PLATEWASHER, PLATE
-
6190501-234F8-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
62BG4-46136-00-00 SEAL 1SEAL 1
-
63BG4-42615-00-00 SEALSEAL
-
6495812-12035-00 BOLT, FLANGEBOLT, FLANGE
-
6590105-12091-00 BOLT, FLANGEBOLT, FLANGE
-
6690185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6792902-12200-00 WASHERWASHER
