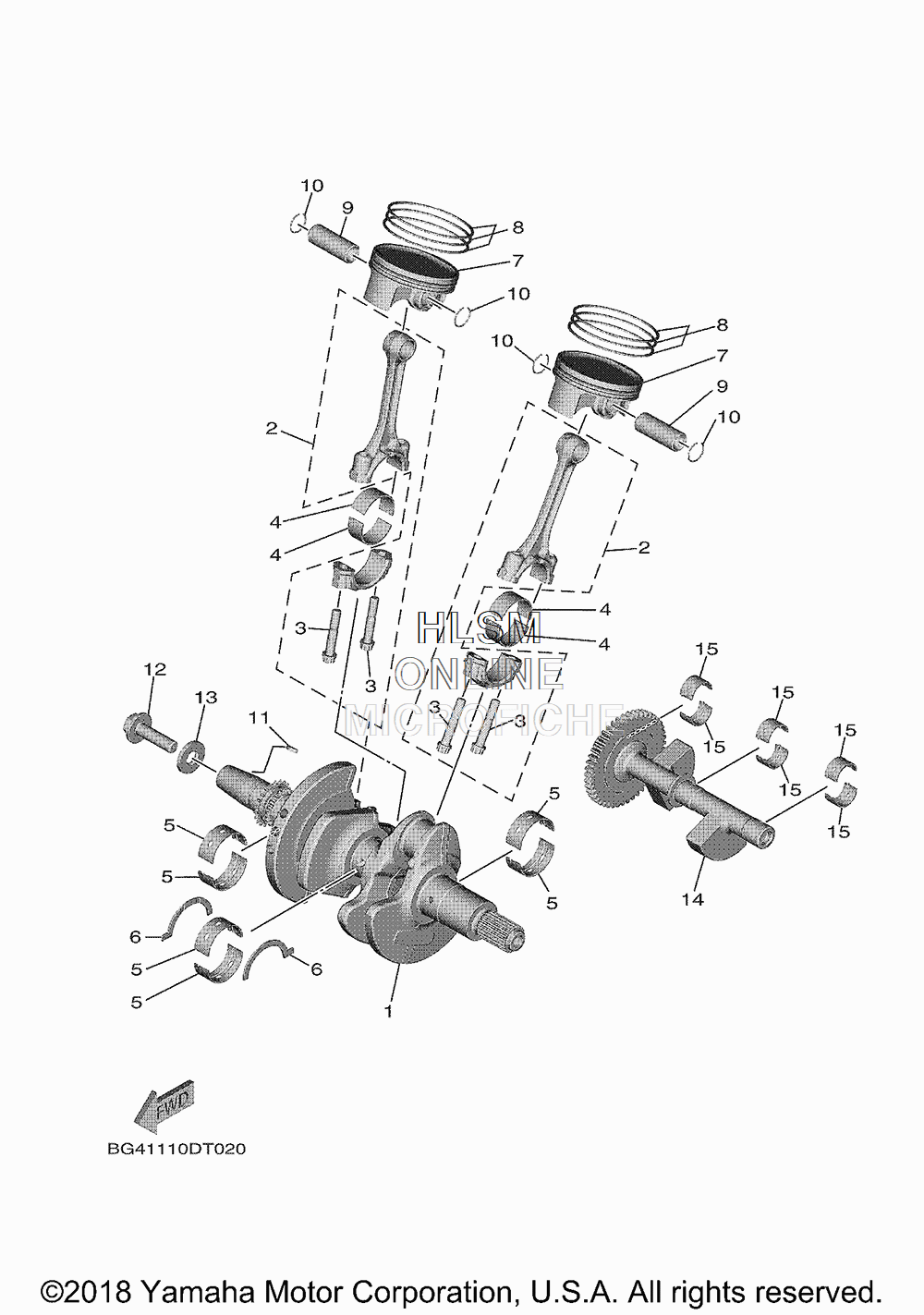

CRANKSHAFT - PISTON для Yamaha WOLVERINE X2 R-SPEC EPS - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
2BG4-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
35PX-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
45JW-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
45JW-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN)PLANE BEARING, CONNECTING ROD (BROWN)
-
45JW-11656-50-00 PLANE BEARING, CONNECTING ROD (PINK)PLANE BEARING, CONNECTING ROD (PINK)
-
45JW-11656-40-00 PLANE BEARING, CONNECTING ROD (YELLOW)PLANE BEARING, CONNECTING ROD (YELLOW)
-
45JW-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)PLANE BEARING, CONNECTING ROD (GREEN)
-
45JW-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
523P-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
523P-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
523P-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)PLANE BEARING, CRANKSHAFT 1 (GREEN)
-
523P-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (YELLOW)PLANE BEARING, CRANKSHAFT 1 (YELLOW)
-
523P-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)PLANE BEARING, CRANKSHAFT 1 (BLUE)
-
6BG4-11426-00-00 BEARING, THRUST 1BEARING, THRUST 1
-
7BG4-11631-00-00 PISTON (STD)PISTON (STD)
-
88KH-11603-01-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
92HC-11633-00-00 PIN, PISTONPIN, PISTON
-
1093450-19095-00 CIRCLIPCIRCLIP
-
1190280-03045-00 KEY, WOODRUFFKEY, WOODRUFF
-
1290401-12003-00 BOLT, UNIONBOLT, UNION
-
1390201-121H0-00 WASHER, PLATEWASHER, PLATE
-
14BG4-11500-00-00 BALANCER ASSYBALANCER ASSY
-
152S3-11413-40-00 METAL, BALANCE WEIGHT (YELLOW)METAL, BALANCE WEIGHT (YELLOW)
-
152S3-11413-00-00 METAL, BALANCE WEIGHT (BLUE)METAL, BALANCE WEIGHT (BLUE)
-
152S3-11413-10-00 METAL, BALANCE WEIGHT (BLACK)METAL, BALANCE WEIGHT (BLACK)
-
152S3-11413-20-00 METAL, BALANCE WEIGHT (BROWN)METAL, BALANCE WEIGHT (BROWN)
-
152S3-11413-30-00 METAL, BALANCE WEIGHT (GREEN)METAL, BALANCE WEIGHT (GREEN)
