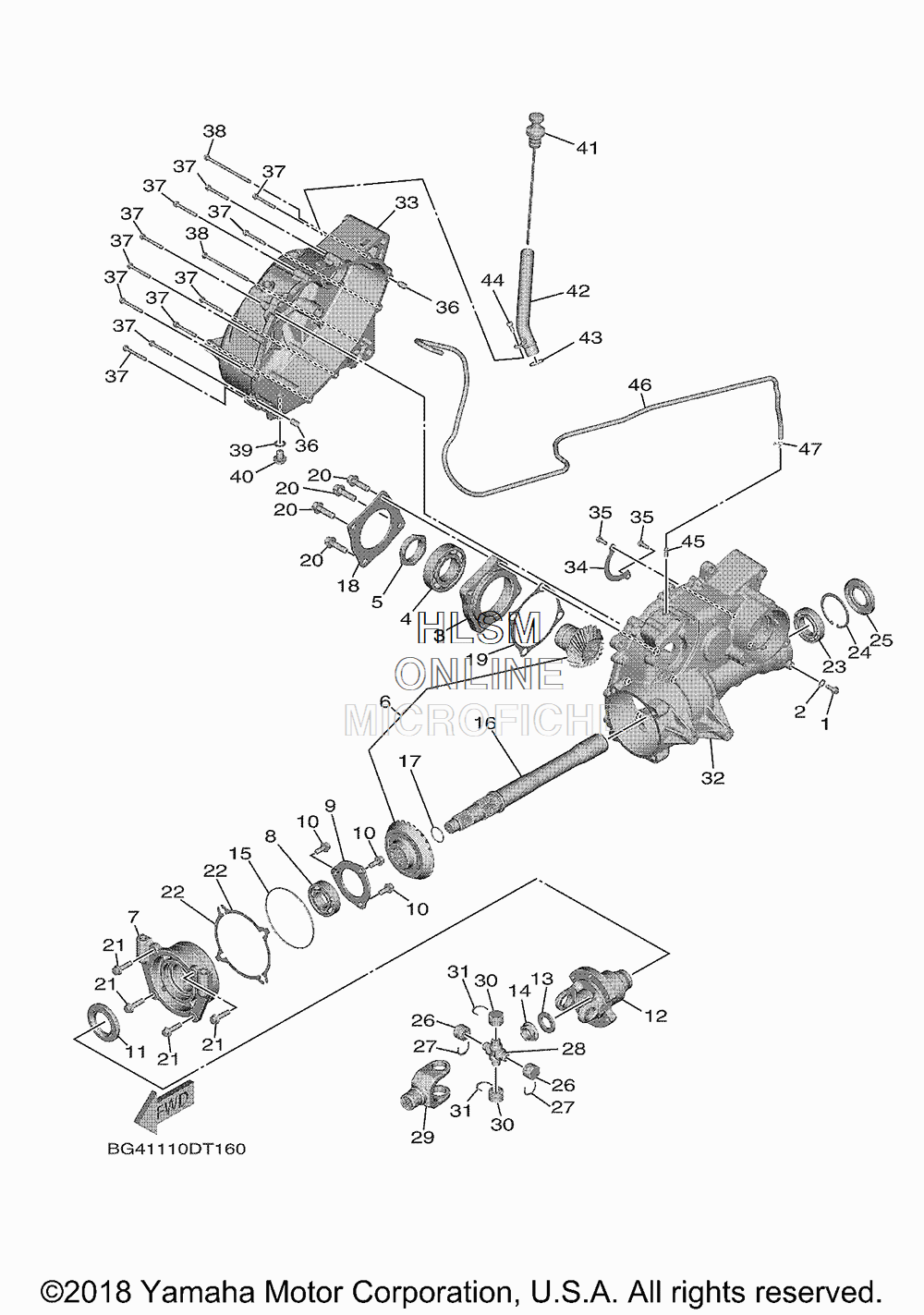

MIDDLE DRIVE GEAR для Yamaha WOLVERINE X2 R-SPEC EPS - 2019 года выпуска
-
№АртикулНазвание
-
195022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
290430-06014-00 GASKETGASKET
-
3BG4-17521-00-00 HOUSING, BEARINGHOUSING, BEARING
-
493306-20904-00 BEARINGBEARING
-
590179-44001-00 NUTNUT
-
6BG4-17530-00-00 PINION SETPINION SET
-
7BG4-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
893306-20654-00 BEARINGBEARING
-
9BG4-17568-00-00 PLATE, BRG. 2PLATE, BRG. 2
-
1090105-08171-00 BOLT, FLANGEBOLT, FLANGE
-
1193102-40031-00 OIL SEALOIL SEAL
-
12BG4-17576-00-00 YOKE, JOINT 2YOKE, JOINT 2
-
1390201-22025-00 WASHER, PLATEWASHER, PLATE
-
1490179-22025-00 NUTNUT
-
1593211-05471-00 O-RINGO-RING
-
16BG4-17553-00-00 SHAFT, MIDDLE DRIVENSHAFT, MIDDLE DRIVEN
-
1793210-25755-00 O-RINGO-RING
-
18BG4-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
19BG4-17531-00-00 SHIM, PINION (0.25T) (OPT)SHIM, PINION (0.25T) (OPT)
-
19BG4-17531-10-00 SHIM, PINION (0.30T) (OPT)SHIM, PINION (0.30T) (OPT)
-
19BG4-17531-20-00 SHIM, PINION (0.35T) (OPT)SHIM, PINION (0.35T) (OPT)
-
19BG4-17531-30-00 SHIM, PINION (0.40T) (OPT)SHIM, PINION (0.40T) (OPT)
-
19BG4-17531-40-00 SHIM, PINION (0.45T) (OPT)SHIM, PINION (0.45T) (OPT)
-
19BG4-17531-50-00 SHIM, PINION (0.50T) (OPT)SHIM, PINION (0.50T) (OPT)
-
2095812-10035-00 BOLT, FLANGEBOLT, FLANGE
-
2190105-08236-00 BOLT, FLANGEBOLT, FLANGE
-
22BG4-17537-00-00 SHIM, THRUST (0.15T) (OPT)SHIM, THRUST (0.15T) (OPT)
-
22BG4-17537-10-00 SHIM, THRUST (0.20T) (OPT)SHIM, THRUST (0.20T) (OPT)
-
22BG4-17537-20-00 SHIM, THRUST (0.25T) (OPT)SHIM, THRUST (0.25T) (OPT)
-
22BG4-17537-30-00 SHIM, THRUST (0.30T) (OPT)SHIM, THRUST (0.30T) (OPT)
-
22BG4-17537-40-00 SHIM, THRUST (0.40T) (OPT)SHIM, THRUST (0.40T) (OPT)
-
22BG4-17537-50-00 SHIM, THRUST (0.50T) (OPT)SHIM, THRUST (0.50T) (OPT)
-
22BG4-17537-60-00 SHIM, THRUST (0.60T) (OPT)SHIM, THRUST (0.60T) (OPT)
-
2393306-00704-00 BEARINGBEARING
-
2499009-62500-00 CIRCLIPCIRCLIP
-
2593102-35042-00 OIL SEALOIL SEAL
-
2693399-99965-00 BEARINGBEARING
-
2793440-23197-00 CIRCLIPCIRCLIP
-
281YW-46187-10-00 SPIDERSPIDER
-
29BG4-46147-00-00 YOKE, JOINT 2YOKE, JOINT 2
-
3093399-99965-00 BEARINGBEARING
-
3193440-23197-00 CIRCLIPCIRCLIP
-
32BG4-17541-00-00 CASE, TRANSFER 1CASE, TRANSFER 1
-
33BG4-17542-00-00 CASE, TRANSFER 2CASE, TRANSFER 2
-
34BG4-17558-00-00 PLATE, BEARINGPLATE, BEARING
-
3590105-06187-00 BOLT, FLANGEBOLT, FLANGE
-
3699530-10114-00 PIN, DOWELPIN, DOWEL
-
3795022-06045-00 BOLT, FLANGEBOLT, FLANGE
-
3895022-06100-00 BOLT, FLANGEBOLT, FLANGE
-
3990430-12213-00 GASKETGASKET
-
4090340-12006-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
41BG4-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
42BG4-15112-00-00 PIPE, OILPIPE, OIL
-
4393210-21631-00 O-RINGO-RING
-
4491312-06012-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
45137-13115-01-00 CONNECTOR, SUCTION PIPECONNECTOR, SUCTION PIPE
-
4690445-080K8-00 HOSE (L1200)HOSE (L1200)
-
4790467-08075-00 CLIPCLIP
