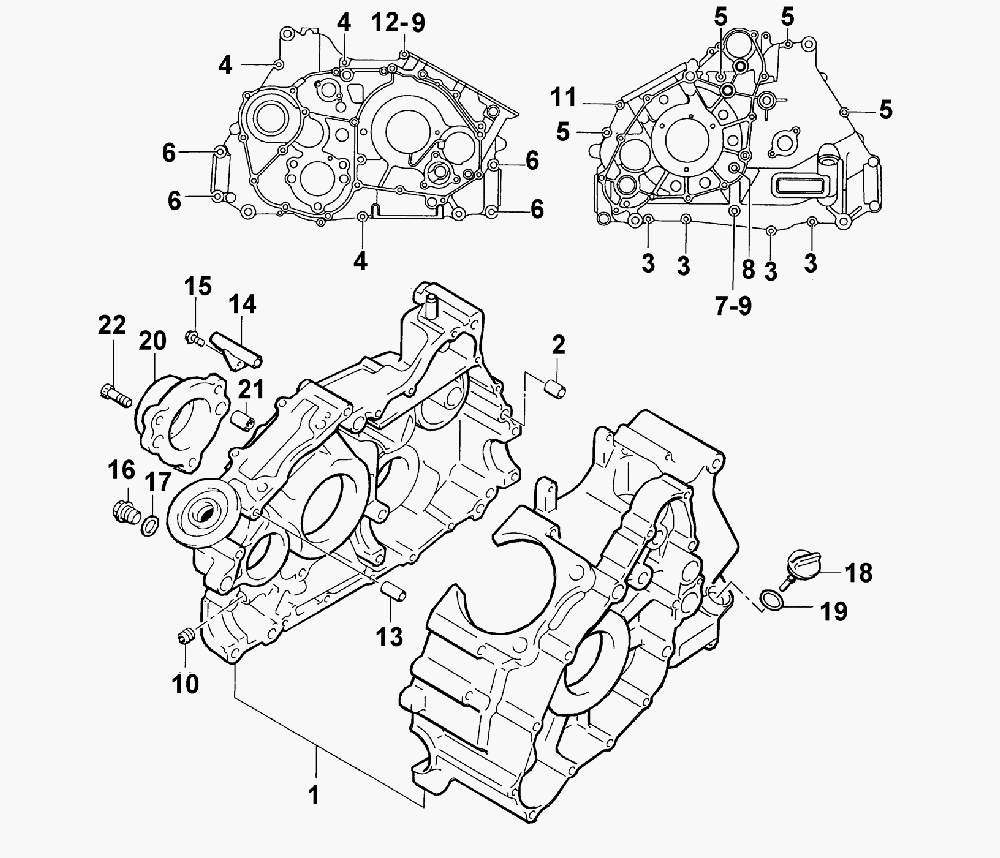

CRANKCASE ASSEMBLY для Arctic Cat 500 4X4 AUTO (GREEN) [A2000ATM4BUSG] - 2000 года выпуска
-
№АртикулНазвание
-
13402-520 CRANKCASE ASSEMBLY (INC. 2-12 AND 24)CRANKCASE ASSEMBLY (INC. 2-12 AND 24)
-
23423-088 ...PIN, DOWEL...PIN, DOWEL
-
33423-091 ...BOLT...BOLT
-
43423-119 ...BOLT...BOLT
-
53423-092 ...BOLT...BOLT
-
63004-880 ...BOLT...BOLT
-
73005-332 ...BOLT...BOLT
-
83423-385 ...BOLT...BOLT
-
93402-436 ...GASKET...GASKET
-
103423-386 ...PLUG...PLUG
-
113423-387 ...BOLT...BOLT
-
123423-388 ...BOLT...BOLT
-
133004-822 PIN, DOWELPIN, DOWEL
-
143402-437 PIPE, BREATHERPIPE, BREATHER
-
153423-389 BOLT, BREATHER PIPEBOLT, BREATHER PIPE
-
163402-214 PLUG, OIL PRESSUREPLUG, OIL PRESSURE
-
173402-012 GASKET, OIL PRESSURE PLUGGASKET, OIL PRESSURE PLUG
-
183402-438 STICK, OIL LEVELSTICK, OIL LEVEL
-
193423-055 O-RING, OIL LEVEL STICKO-RING, OIL LEVEL STICK
-
203402-439 HOUSING, SECONDARY SHAFT BEARINGHOUSING, SECONDARY SHAFT BEARING
-
213423-088 PIN, DOWELPIN, DOWEL
-
223423-390 BOLTBOLT
