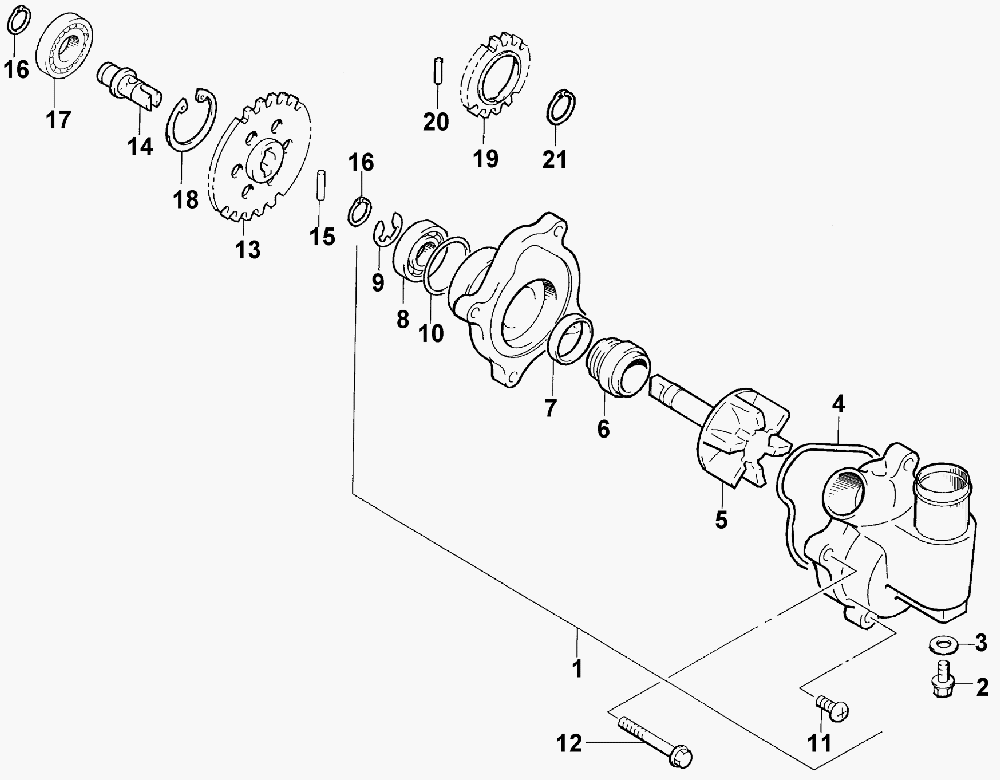

WATER PUMP ASSEMBLY для Arctic Cat 500 4X4 AUTO (GREEN) [A2000ATM4BUSG] - 2000 года выпуска
-
№АртикулНазвание
-
13402-464 PUMP, WATER - ASSEMBLY (INC. 2-11)PUMP, WATER - ASSEMBLY (INC. 2-11)
-
23423-343 ...BOLT...BOLT
-
33003-188 ...GASKET...GASKET
-
43423-402 ...O-RING...O-RING
-
53413-014 ...IMPELLER/SHAFT...IMPELLER/SHAFT
-
63402-360 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
73402-465 ...SEAL, OIL...SEAL, OIL
-
83003-615 ...BEARING...BEARING
-
93423-403 ...E-RING...E-RING
-
103423-404 ...O-RING...O-RING
-
113003-484 ...SCREW...SCREW
-
123423-308 BOLTBOLT
-
133402-026 GEAR, DRIVENGEAR, DRIVEN
-
143402-466 SHAFT, DRIVEN GEARSHAFT, DRIVEN GEAR
-
153423-046 PIN, DRIVEN GEARPIN, DRIVEN GEAR
-
163423-184 CIRCLIP, DRIVEN GEARCIRCLIP, DRIVEN GEAR
-
173402-467 BEARING, SHAFTBEARING, SHAFT
-
183423-405 CIRCLIP, SHAFT BEARINGCIRCLIP, SHAFT BEARING
-
193402-390 GEAR, WATER PUMP DRIVEGEAR, WATER PUMP DRIVE
-
203423-110 PIN, DRIVE GEARPIN, DRIVE GEAR
-
213423-189 CIRCLIP, DRIVE GEARCIRCLIP, DRIVE GEAR
