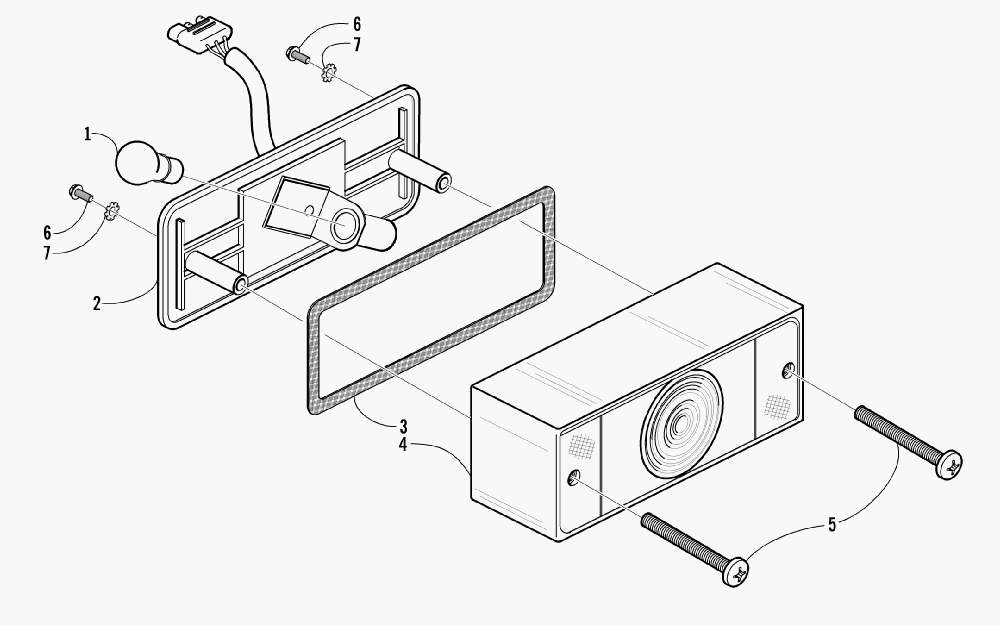

TAILLIGHT ASSEMBLY для Arctic Cat 500 4X4 AUTO (GREEN) [A2000ATM4BUSG] - 2000 года выпуска
-
№АртикулНазвание
-
-0409-002 COMPLETE TAILLIGHT ASSEMBLYCOMPLETE TAILLIGHT ASSEMBLY
-
10109-460 BULB, STOP - TAILLIGHTBULB, STOP - TAILLIGHT
-
20409-011 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
30409-012 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
40409-007 LENS, TAILLIGHTLENS, TAILLIGHT
-
50409-010 SCREW, MACHINESCREW, MACHINE
-
60623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
78053-212 WASHER, LOCK - EXTERNAL TOOTHWASHER, LOCK - EXTERNAL TOOTH
