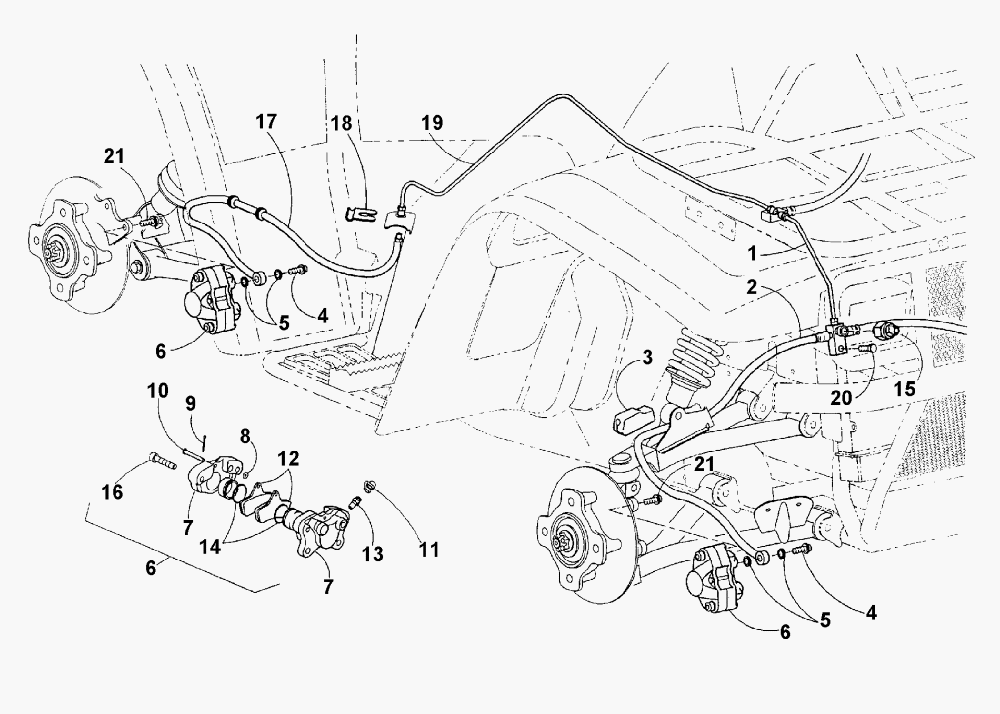

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat 500 4X4 AUTO (GREEN) [A2000ATM4BUSG] - 2000 года выпуска
-
№АртикулНазвание
-
10402-373 TUBE, BRAKELINE - FRONTTUBE, BRAKELINE - FRONT
-
20402-307 HOSE, BRAKE - FRONTHOSE, BRAKE - FRONT
-
30402-073 BLOCK, MOUNTINGBLOCK, MOUNTING
-
40423-038 BOLT, OILBOLT, OIL
-
50423-039 WASHER, CRUSHWASHER, CRUSH
-
60402-488 CALIPER, BRAKE - RIGHT FRONT (INC. 7-14 AND 16)CALIPER, BRAKE - RIGHT FRONT (INC. 7-14 AND 16)
-
60402-489 CALIPER, BRAKE - LEFT FRONT AND REAR (INC. 7-14 AND 16)CALIPER, BRAKE - LEFT FRONT AND REAR (INC. 7-14 AND 16)
-
80402-490 ...O-RING...O-RING
-
90402-496 ...PIN, COTTER...PIN, COTTER
-
100402-495 ...PIN, BRAKE CALIPER...PIN, BRAKE CALIPER
-
110402-493 ...CAP, BLEED VALVE...CAP, BLEED VALVE
-
120402-494 ...PAD, BRAKE...PAD, BRAKE
-
130402-491 ...VALVE, BLEED...VALVE, BLEED
-
140402-487 ...O-RING, BRAKE CALIPER...O-RING, BRAKE CALIPER
-
150402-306 SWITCH, BRAKE PRESSURESWITCH, BRAKE PRESSURE
-
160402-492 SCREW, CAPSCREW, CAP
-
170402-184 HOSE, BRAKE - REARHOSE, BRAKE - REAR
-
180402-115 CLIP, BRAKELINECLIP, BRAKELINE
-
190402-515 TUBE, BRAKELINE - REARTUBE, BRAKELINE - REAR
-
208476-625 SCREW, CAPSCREW, CAP
-
218408-825 SCREW, CAPSCREW, CAP
