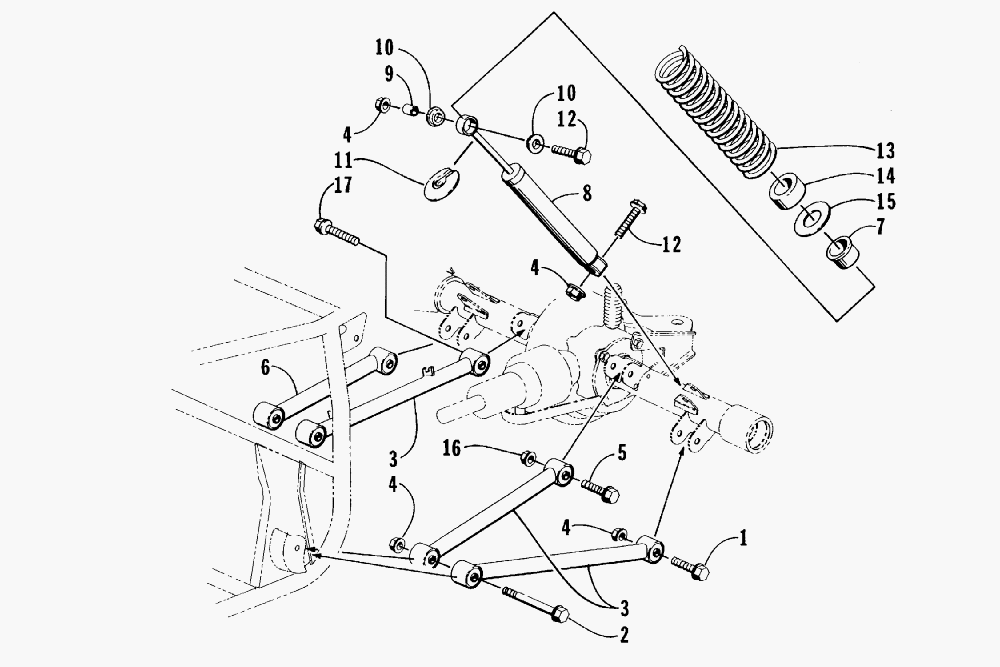

REAR SUSPENSION ASSEMBLY для Arctic Cat 500 4X4 AUTO (GREEN) [A2000ATM4BUSG] - 2000 года выпуска
-
№АртикулНазвание
-
18409-060 SCREW, CAPSCREW, CAP
-
28409-000 SCREW, CAPSCREW, CAP
-
30504-001 ARM, SWINGARM, SWING
-
48428-002 NUT, LOCKNUT, LOCK
-
58409-055 SCREW, CAPSCREW, CAP
-
60504-041 ARM, SWINGARM, SWING
-
70403-027 RETAINER, SPRING - LOWERRETAINER, SPRING - LOWER
-
80404-001 SHOCK ABSORBER - REAR (INC. 9-10)SHOCK ABSORBER - REAR (INC. 9-10)
-
90403-028 ...SLEEVE, SHOCK...SLEEVE, SHOCK
-
100604-310 ...BUSHING, SHOCK ABSORBER...BUSHING, SHOCK ABSORBER
-
110603-033 RETAINER, SPRINGRETAINER, SPRING
-
128409-040 SCREW, CAPSCREW, CAP
-
130404-006 SPRING, SHOCK ABSORBERSPRING, SHOCK ABSORBER
-
140403-025 COLLAR, SPRINGCOLLAR, SPRING
-
150403-013 WASHER, SPRING ADJUSTMENTWASHER, SPRING ADJUSTMENT
-
168422-002 NUT, LOCKNUT, LOCK
-
178409-065 SCREW, CAPSCREW, CAP
