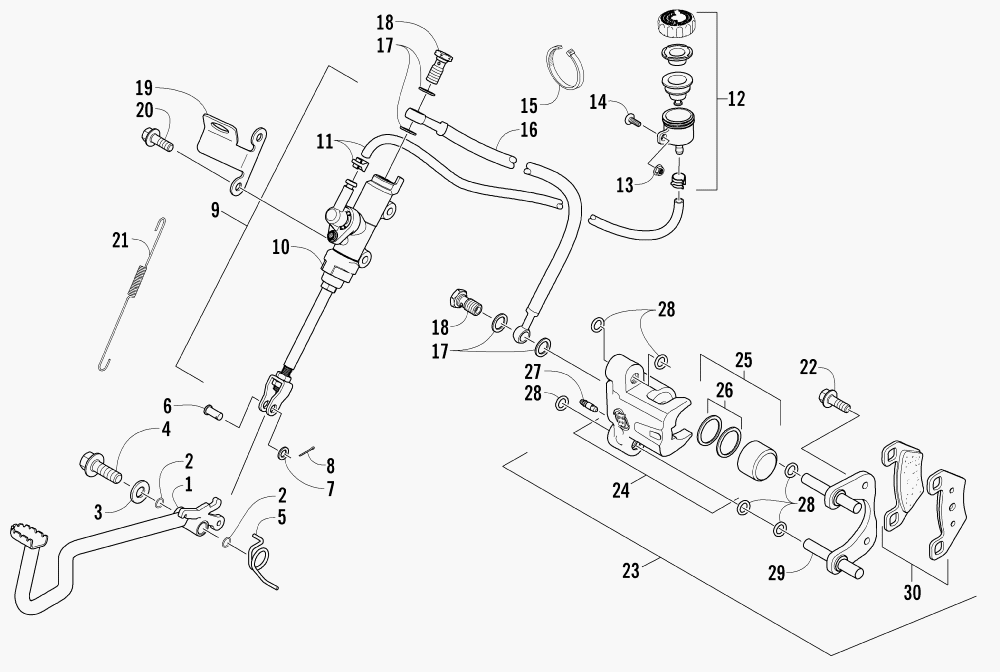

AUXILIARY BRAKE ASSEMBLY для Arctic Cat 400 TBX AUTO (RED) [A2006BBH4BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
-0502-939 FULLY BLED MASTER CYLINDER REPLACEMENT KITFULLY BLED MASTER CYLINDER REPLACEMENT KIT
-
10502-805 LEVER, BRAKELEVER, BRAKE
-
21602-213 O-RINGO-RING
-
38050-252 WASHERWASHER
-
48408-816 SCREW, CAPSCREW, CAP
-
50502-807 SPRING, BRAKE LEVERSPRING, BRAKE LEVER
-
61402-377 PIN, CLEVISPIN, CLEVIS
-
78050-217 WASHERWASHER
-
80402-584 PIN, COTTERPIN, COTTER
-
90502-881 BRAKE ASSEMBLY (INC. 10-12)BRAKE ASSEMBLY (INC. 10-12)
-
110502-880 ...HOSE, BRAKE RESERVOIR...HOSE, BRAKE RESERVOIR
-
120502-877 ...RESERVOIR, BRAKE...RESERVOIR, BRAKE
-
130623-038 NUT, FLANGEDNUT, FLANGED
-
148476-616 SCREW, MACHINESCREW, MACHINE
-
150123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
-
161402-417 HOSE, BRAKEHOSE, BRAKE
-
170423-178 WASHER, CRUSHWASHER, CRUSH
-
180423-413 BOLT, BANJO FITTINGBOLT, BANJO FITTING
-
190502-840 BRACKET, SWITCHBRACKET, SWITCH
-
208408-625 SCREW, CAPSCREW, CAP
-
210502-785 SPRING, BRAKE SWITCHSPRING, BRAKE SWITCH
-
228408-820 SCREW, CAPSCREW, CAP
-
230502-602 CALIPER, BRAKE (INC. 24-30)CALIPER, BRAKE (INC. 24-30)
-
240502-603 ...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. 25-27)...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. 25-27)
-
250502-606 ......PISTON/SEAL SET (INC. 26)......PISTON/SEAL SET (INC. 26)
-
260502-607 .........SEAL SET.........SEAL SET
-
270502-609 ......VALVE, BLEED......VALVE, BLEED
-
280502-608 ...O-RING, GUIDE - SET...O-RING, GUIDE - SET
-
290502-605 ...BRACKET ASSEMBLY...BRACKET ASSEMBLY
-
300502-604 ...PAD, BRAKE - SET...PAD, BRAKE - SET
