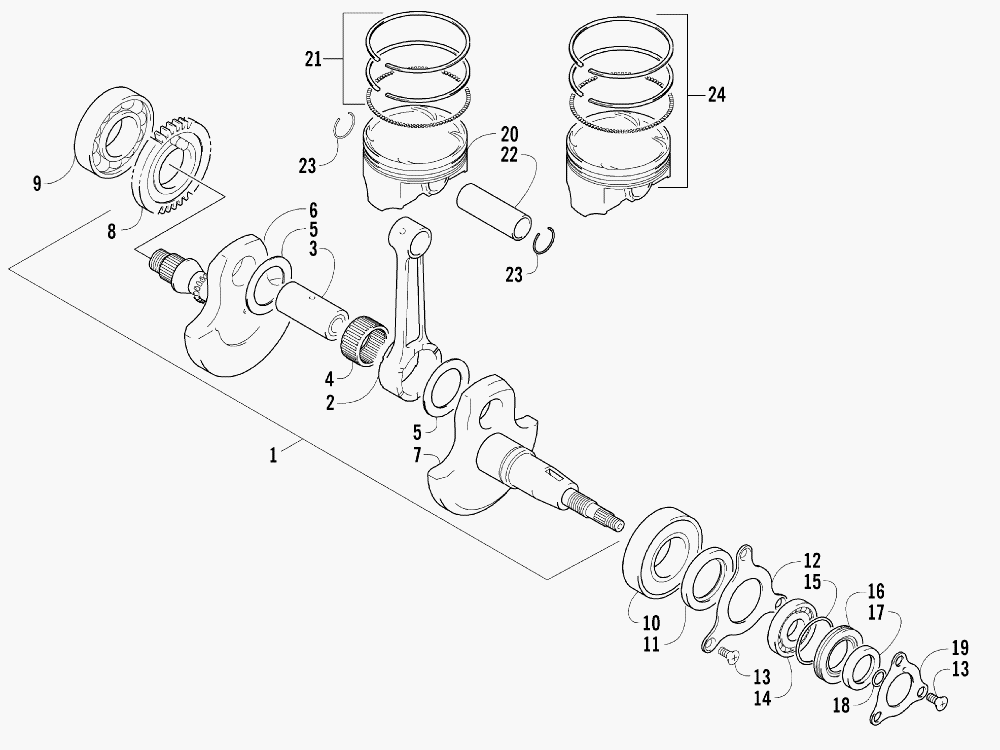

CRANKSHAFT ASSEMBLY для Arctic Cat 400 TBX AUTO (RED) [A2006BBH4BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
13403-009 CRANKSHAFT ASSEMBLY (INC. 2-8)CRANKSHAFT ASSEMBLY (INC. 2-8)
-
23402-597 ...ROD, CONNECTING...ROD, CONNECTING
-
33402-599 ...PIN, CRANK...PIN, CRANK
-
43402-571 ...BEARING...BEARING
-
53423-440 ...WASHER...WASHER
-
63403-014 ...CRANKSHAFT - RIGHT...CRANKSHAFT - RIGHT
-
73402-601 ...CRANKSHAFT - LEFT...CRANKSHAFT - LEFT
-
83402-698 ...GEAR, CRANK BALANCER DRIVE...GEAR, CRANK BALANCER DRIVE
-
93402-055 BEARING - RIGHTBEARING - RIGHT
-
103402-566 BEARING - MIDDLEBEARING - MIDDLE
-
113402-573 SEAL, CRANKSHAFT OILSEAL, CRANKSHAFT OIL
-
123402-602 RETAINER, CRANKSHAFT OIL SEAL - MIDDLERETAINER, CRANKSHAFT OIL SEAL - MIDDLE
-
133423-018 SCREW, RETAINERSCREW, RETAINER
-
143402-051 BEARINGBEARING
-
153423-063 O-RINGO-RING
-
163423-542 SPACERSPACER
-
173402-070 SEAL, OILSEAL, OIL
-
183423-053 O-RINGO-RING
-
193402-188 RETAINER, CRANKSHAFT OIL SEAL - LEFTRETAINER, CRANKSHAFT OIL SEAL - LEFT
-
203402-594 PISTONPISTON
-
213402-595 RING, PISTON - SETRING, PISTON - SET
-
223402-596 PIN, PISTONPIN, PISTON
-
233003-439 CIRCLIPCIRCLIP
-
243436-015 PISTON SET (OVERSIZED 0.50 MM) (OPTIONAL)PISTON SET (OVERSIZED 0.50 MM) (OPTIONAL)
