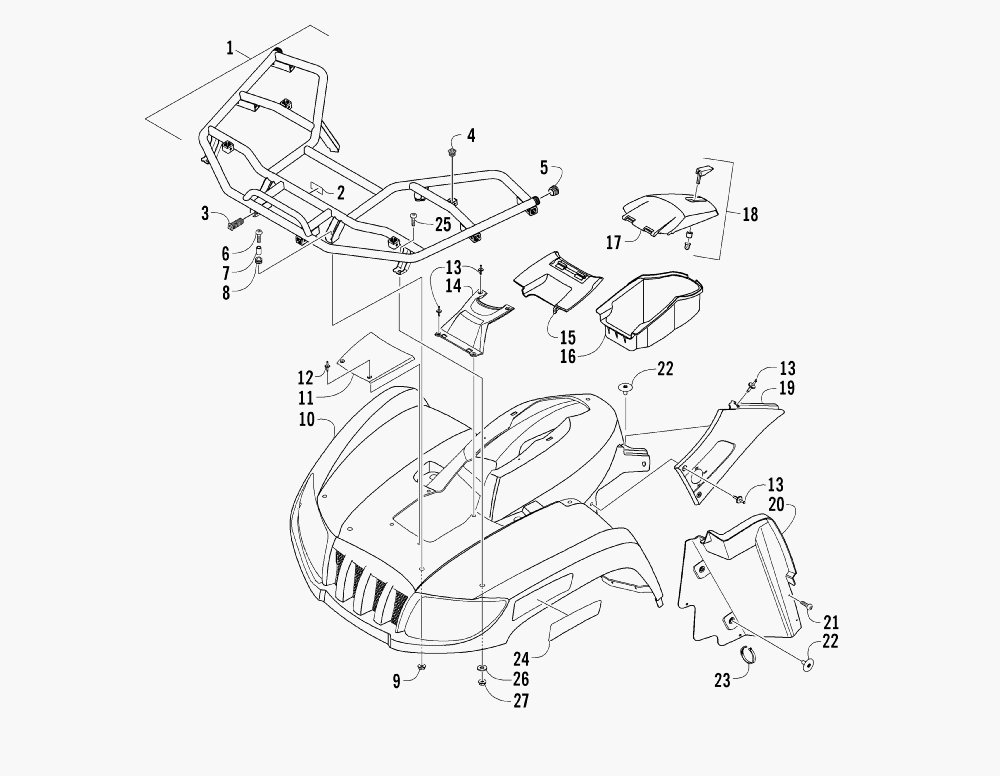

FRONT BODY PANEL ASSEMBLY для Arctic Cat 400 TBX AUTO (RED) [A2006BBH4BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
10541-272 RACK - FRONT - ASSEMBLY (INC. 2-5)RACK - FRONT - ASSEMBLY (INC. 2-5)
-
20411-576 ...DECAL, WARNING - FRONT RACK LOAD...DECAL, WARNING - FRONT RACK LOAD
-
32406-014 ...BUSHING, RACK...BUSHING, RACK
-
40441-592 ...BUSHING, RACK...BUSHING, RACK
-
51441-049 ...PLUG, RACK...PLUG, RACK
-
68410-830 SCREW, MACHINESCREW, MACHINE
-
70423-463 SPACERSPACER
-
80423-465 GROMMETGROMMET
-
98432-802 NUT, LOCKNUT, LOCK
-
101406-283 PANEL, FENDER - FRONT (RED)PANEL, FENDER - FRONT (RED)
-
101406-611 PANEL, FENDER - FRONT (GREEN)PANEL, FENDER - FRONT (GREEN)
-
111406-358 COVER, ACCESSCOVER, ACCESS
-
120423-535 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
130623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
141406-484 COVER, STEERING POSTCOVER, STEERING POST
-
150470-513 COVER, STORAGE BOXCOVER, STORAGE BOX
-
161406-573 BOX, STORAGEBOX, STORAGE
-
170470-514 LID, STORAGE BOXLID, STORAGE BOX
-
181406-599 LATCH, STORAGE BOXLATCH, STORAGE BOX
-
191406-313 PANEL, SIDE - RIGHTPANEL, SIDE - RIGHT
-
191406-314 PANEL, SIDE - LEFTPANEL, SIDE - LEFT
-
201406-354 PANEL, SPLASH - RIGHTPANEL, SPLASH - RIGHT
-
201406-355 PANEL, SPLASH - LEFTPANEL, SPLASH - LEFT
-
210423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
220423-101 SCREW, BODYSCREW, BODY
-
230123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
-
240411-818 DECAL, REFLECTOR - AMBER - RIGHTDECAL, REFLECTOR - AMBER - RIGHT
-
240411-819 DECAL, REFLECTOR - AMBER - LEFTDECAL, REFLECTOR - AMBER - LEFT
-
250423-355 SCREW, SHOULDERSCREW, SHOULDER
-
268050-222 WASHERWASHER
-
278424-602 NUT, LOCKNUT, LOCK
