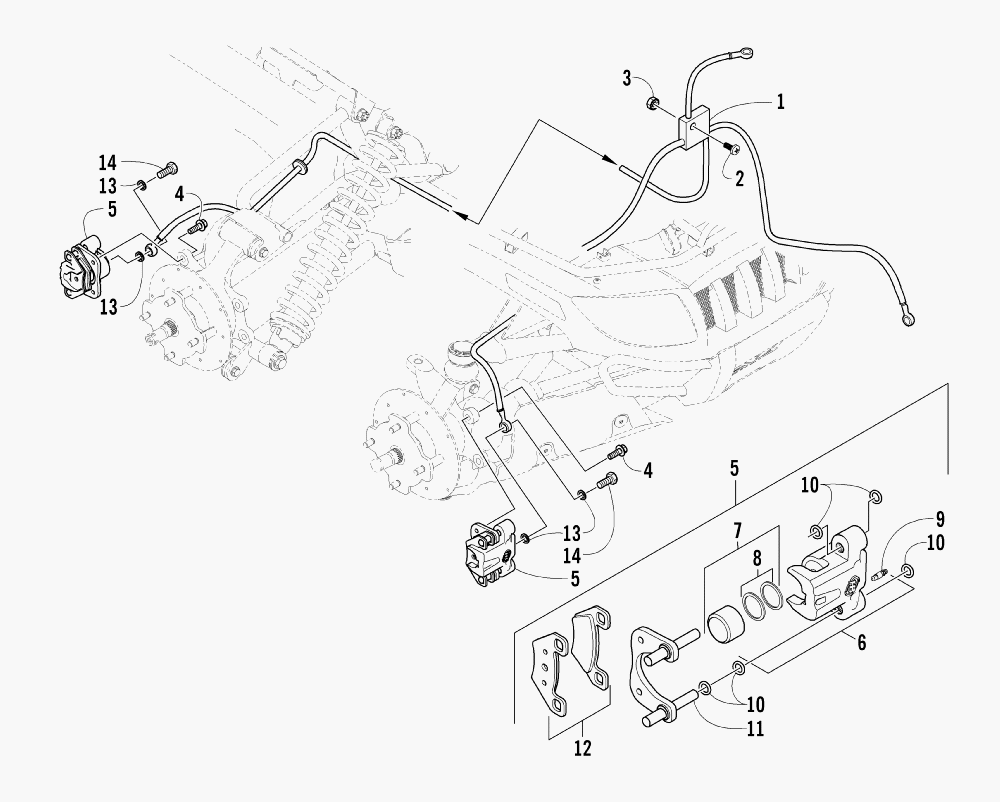

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat 400 TBX AUTO (RED) [A2006BBH4BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
10502-628 HOSE, BRAKE - ASSEMBLYHOSE, BRAKE - ASSEMBLY
-
28476-625 SCREW, CAPSCREW, CAP
-
30623-038 NUT, HEXNUT, HEX
-
48408-820 SCREW, CAPSCREW, CAP
-
50502-602 CALIPER, BRAKE - RIGHT FRONT (INC. 6-12)CALIPER, BRAKE - RIGHT FRONT (INC. 6-12)
-
50502-610 CALIPER, BRAKE - LEFT FRONT AND RIGHT REAR (INC. 6-12)CALIPER, BRAKE - LEFT FRONT AND RIGHT REAR (INC. 6-12)
-
60502-603 ...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. 7-9)...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. 7-9)
-
60502-611 ...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT AND RIGHT REAR (INC. 7-9)...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT AND RIGHT REAR (INC. 7-9)
-
70502-606 ......PISTON/SEAL SET (INC. 8)......PISTON/SEAL SET (INC. 8)
-
80502-607 .........SEAL SET.........SEAL SET
-
90502-609 ......VALVE, BLEED......VALVE, BLEED
-
100502-608 ...O-RING, GUIDE - SET...O-RING, GUIDE - SET
-
110502-605 ...BRACKET ASSEMBLY...BRACKET ASSEMBLY
-
120502-604 ...PAD, BRAKE - SET...PAD, BRAKE - SET
-
130423-178 WASHER, CRUSHWASHER, CRUSH
-
140423-413 BOLT, BANJO FITTINGBOLT, BANJO FITTING
