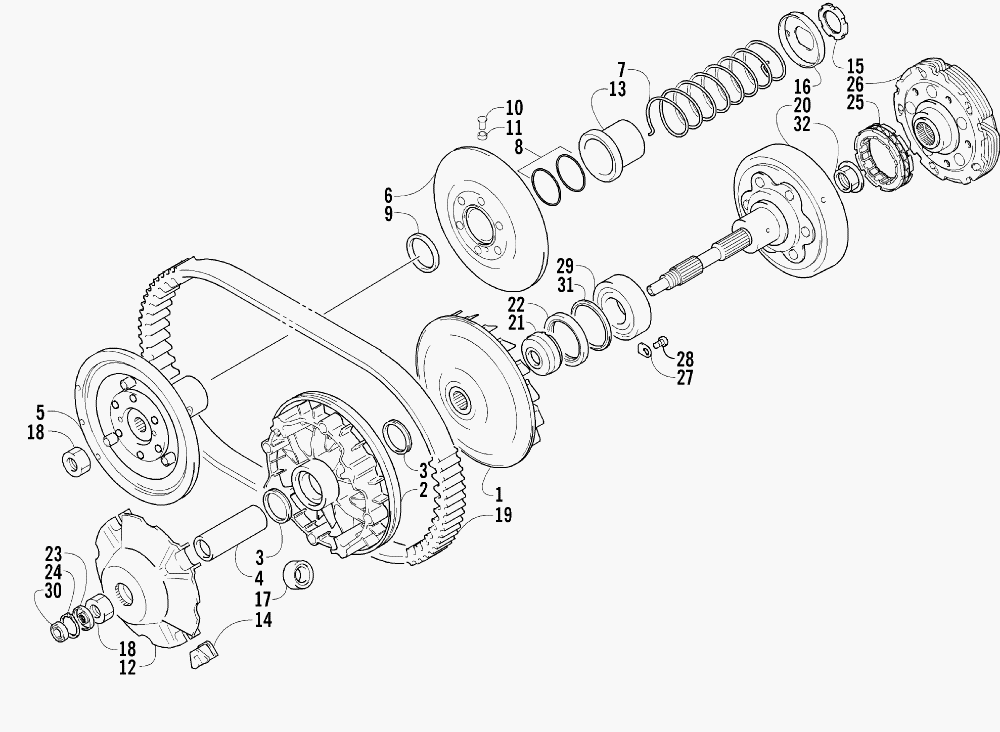

TRANSMISSION ASSEMBLY для Arctic Cat 400 TBX AUTO (RED) [A2006BBH4BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
13402-622 FACE, FIXED DRIVEFACE, FIXED DRIVE
-
23402-623 FACE, MOVABLE DRIVEFACE, MOVABLE DRIVE
-
33402-624 SEAL, MOVABLE DRIVE FACESEAL, MOVABLE DRIVE FACE
-
43402-625 SPACER, MOVABLE DRIVE FACESPACER, MOVABLE DRIVE FACE
-
53402-626 FACE, FIXED DRIVENFACE, FIXED DRIVEN
-
63402-627 FACE, MOVABLE DRIVENFACE, MOVABLE DRIVEN
-
73423-486 SPRING, MOVABLE DRIVEN FACESPRING, MOVABLE DRIVEN FACE
-
83423-487 O-RING, MOVABLE DRIVEN FACEO-RING, MOVABLE DRIVEN FACE
-
93402-629 SEAL, MOVABLE DRIVEN FACESEAL, MOVABLE DRIVEN FACE
-
103402-477 PIN, MOVABLE DRIVEN FACEPIN, MOVABLE DRIVEN FACE
-
113402-478 SPACER, MOVABLE DRIVEN FACESPACER, MOVABLE DRIVEN FACE
-
123402-630 PLATE, MOVABLE DRIVE FACEPLATE, MOVABLE DRIVE FACE
-
133402-631 SLEEVE, MOVABLE DRIVEN FACESLEEVE, MOVABLE DRIVEN FACE
-
143402-481 DAMPER, MOVABLE DRIVE FACEDAMPER, MOVABLE DRIVE FACE
-
153423-489 NUT, DRIVEN PULLEYNUT, DRIVEN PULLEY
-
163402-632 HOLDER, MOVABLE DRIVEN FACE SPRINGHOLDER, MOVABLE DRIVEN FACE SPRING
-
173402-633 ROLLER, MOVABLE DRIVE FACEROLLER, MOVABLE DRIVE FACE
-
183423-437 NUTNUT
-
193402-664 V-BELTV-BELT
-
203402-620 HOUSING, CLUTCHHOUSING, CLUTCH
-
213402-621 SPACER, FIXED DRIVE FACESPACER, FIXED DRIVE FACE
-
223402-977 SEAL, CLUTCH HOUSINGSEAL, CLUTCH HOUSING
-
233402-574 SEAL, CLUTCH HOUSINGSEAL, CLUTCH HOUSING
-
243423-505 CIRCLIPCIRCLIP
-
253446-003 CLUTCH, ONE-WAYCLUTCH, ONE-WAY
-
263446-354 SHOE, CLUTCH - ASSEMBLYSHOE, CLUTCH - ASSEMBLY
-
273446-031 RETAINER, BEARINGRETAINER, BEARING
-
283423-435 SCREW, BEARING RETAINERSCREW, BEARING RETAINER
-
293402-567 BEARINGBEARING
-
303402-693 BEARINGBEARING
-
313423-353 O-RINGO-RING
-
323423-501 NUTNUT
