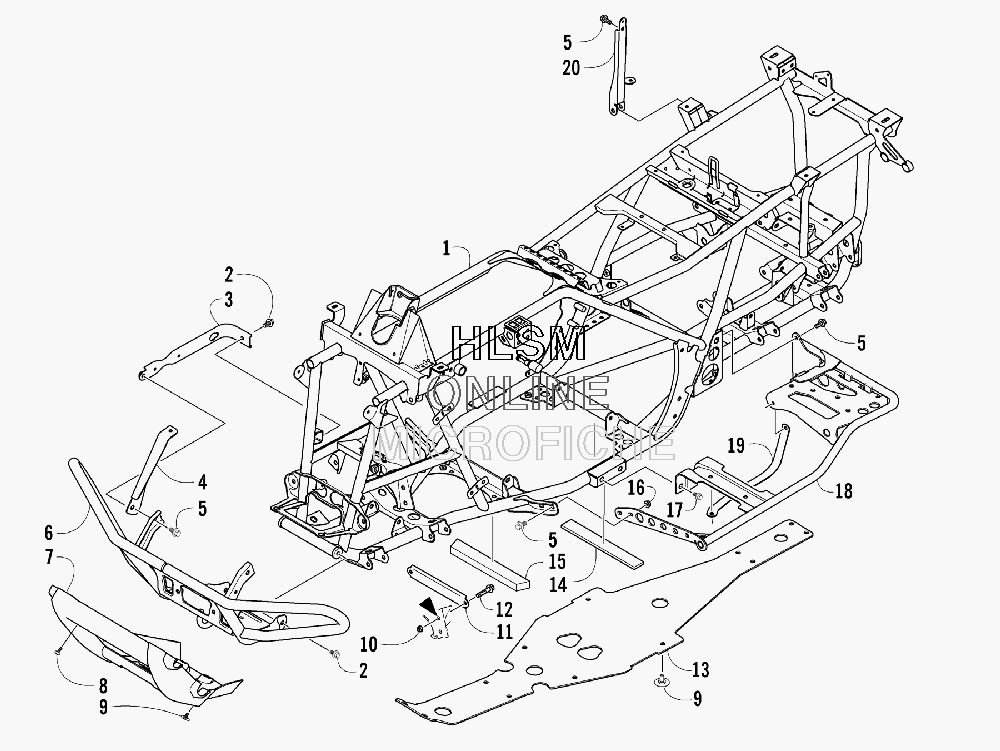

FRAME AND RELATED PARTS для Arctic Cat 700 EFI TRV CRUISER (BLUE) [A2008TCT4CUSV] - 2008 года выпуска
-
№АртикулНазвание
-
12506-737 FRAME, MAINFRAME, MAIN
-
28409-020 SCREW, CAPSCREW, CAP
-
31506-596 CHANNEL, BUMPER MOUNTING - RIGHTCHANNEL, BUMPER MOUNTING - RIGHT
-
30506-653 CHANNEL, BUMPER MOUNTING - LEFTCHANNEL, BUMPER MOUNTING - LEFT
-
41506-562 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
41506-563 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
58408-816 SCREW, CAPSCREW, CAP
-
61506-855 BUMPERBUMPER
-
71406-360 FASCIA, BUMPERFASCIA, BUMPER
-
80423-419 SCREW, MACHINESCREW, MACHINE
-
90423-101 SCREW, BODYSCREW, BODY
-
100423-744 NUT, LOCKNUT, LOCK
-
111506-429 BRACE, A-ARMBRACE, A-ARM
-
128409-025 SCREW, CAPSCREW, CAP
-
132406-701 PANEL, BELLYPANEL, BELLY
-
140406-289 PAD, FRAMEPAD, FRAME
-
151506-981 FOAM, FRAMEFOAM, FRAME
-
168424-802 NUT, FLANGENUT, FLANGE
-
178409-016 SCREW, CAPSCREW, CAP
-
181506-848 FOOTREST - RIGHTFOOTREST - RIGHT
-
181506-849 FOOTREST - LEFTFOOTREST - LEFT
-
192406-216 STRAP, FOOTREST - RIGHTSTRAP, FOOTREST - RIGHT
-
192406-217 STRAP, FOOTREST - LEFTSTRAP, FOOTREST - LEFT
-
202506-447 BRACKET, GAS TANKBRACKET, GAS TANK
