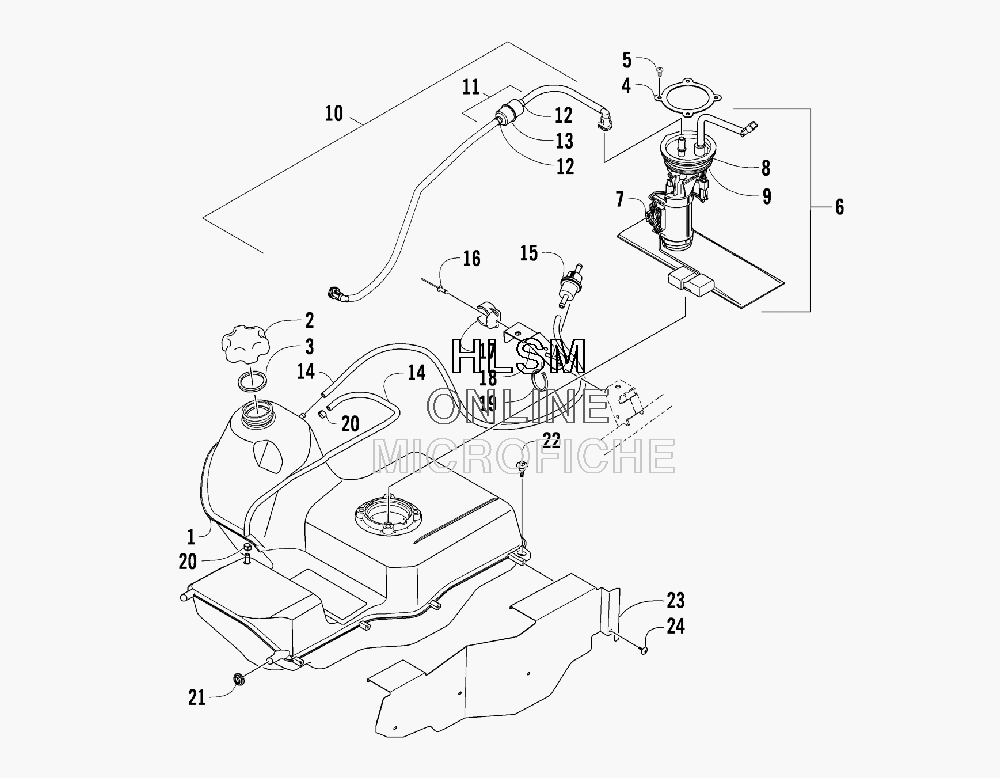

GAS TANK ASSEMBLY для Arctic Cat 700 EFI TRV CRUISER (BLUE) [A2008TCT4CUSV] - 2008 года выпуска
-
№АртикулНазвание
-
10570-206 TANK, GAS - ASSEMBLY (INC. 2-5)TANK, GAS - ASSEMBLY (INC. 2-5)
-
20470-438 ...CAP, GAS TANK (INC. 3)...CAP, GAS TANK (INC. 3)
-
30109-733 ......GASKET, GAS TANK CAP......GASKET, GAS TANK CAP
-
40470-606 ...PLATE, MOUNTING - FUEL PUMP...PLATE, MOUNTING - FUEL PUMP
-
58476-612 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
60570-207 PUMP, FUEL - ASSEMBLY (INC. 7-9)PUMP, FUEL - ASSEMBLY (INC. 7-9)
-
70570-208 ...SENSOR, FUEL LEVEL - KIT (INC. 8-9)...SENSOR, FUEL LEVEL - KIT (INC. 8-9)
-
80470-614 ......SEAL, FUEL PUMP......SEAL, FUEL PUMP
-
90470-613 ......SEAL, FUEL PUMP......SEAL, FUEL PUMP
-
100570-242 HOSE, GASLINE - ASSEMBLY (INC. 11-13)HOSE, GASLINE - ASSEMBLY (INC. 11-13)
-
110570-246 ...FILTER, FUEL - KIT (INC. 12-13)...FILTER, FUEL - KIT (INC. 12-13)
-
140410-143 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
150510-335 FILTER, IN-LINEFILTER, IN-LINE
-
168060-628 RIVETRIVET
-
171670-826 BRACKET, FUEL FILTERBRACKET, FUEL FILTER
-
180470-794 BRACKET, FILTER MOUNTINGBRACKET, FILTER MOUNTING
-
190123-788 TIE, CABLETIE, CABLE
-
200423-688 CLAMP, HOSECLAMP, HOSE
-
210423-460 GROMMETGROMMET
-
220423-732 SCREW, GAS TANKSCREW, GAS TANK
-
230470-822 SHIELD, HEAT - GAS TANKSHIELD, HEAT - GAS TANK
-
240623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
