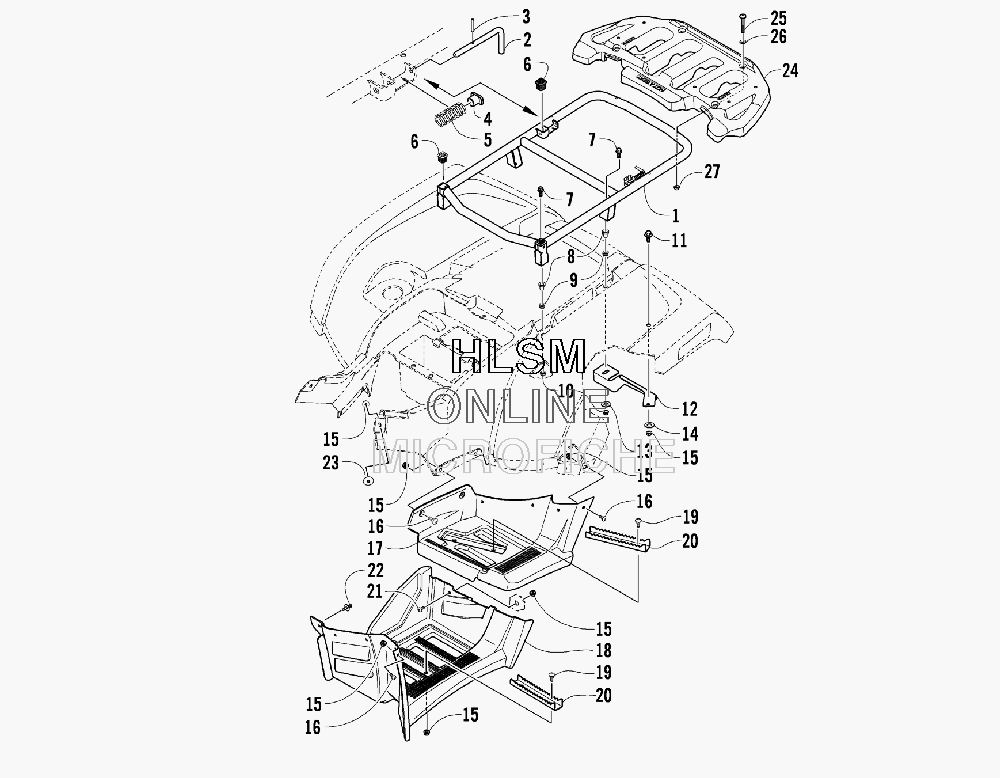

REAR RACK AND FOOTWELL ASSEMBLIES для Arctic Cat 700 EFI TRV CRUISER (BLUE) [A2008TCT4CUSV] - 2008 года выпуска
-
№АртикулНазвание
-
12506-598 RACK, REAR - ASSEMBLY (INC. 2-6)RACK, REAR - ASSEMBLY (INC. 2-6)
-
20541-504 ...PIN - ASSEMBLY (INC. 3-5)...PIN - ASSEMBLY (INC. 3-5)
-
30423-635 ......PIN, ROLL......PIN, ROLL
-
40423-677 ......COLLAR......COLLAR
-
50423-636 ......SPRING......SPRING
-
60441-592 ...BUSHING, RACK...BUSHING, RACK
-
78410-835 SCREW, CAPSCREW, CAP
-
80423-669 SPACERSPACER
-
90423-465 GROMMETGROMMET
-
108432-802 NUT, LOCKNUT, LOCK
-
110423-654 SCREW, SHOULDERSCREW, SHOULDER
-
122506-092 BRACKET, REAR FENDER - RIGHTBRACKET, REAR FENDER - RIGHT
-
122506-093 BRACKET, REAR FENDER - LEFTBRACKET, REAR FENDER - LEFT
-
130423-087 WASHERWASHER
-
148050-222 WASHERWASHER
-
150423-540 NUT, LOCKNUT, LOCK
-
160423-419 SCREW, MACHINESCREW, MACHINE
-
172406-042 FOOTWELL, REAR - RIGHTFOOTWELL, REAR - RIGHT
-
172406-043 FOOTWELL, REAR - LEFTFOOTWELL, REAR - LEFT
-
181506-813 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
182406-471 FOOTWELL - LEFTFOOTWELL - LEFT
-
190423-355 SCREW, SHOULDERSCREW, SHOULDER
-
201506-125 FOOTPEGFOOTPEG
-
218477-620 SCREW, MACHINESCREW, MACHINE
-
220623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
230423-101 SCREW, BODYSCREW, BODY
-
242406-777 RACK, REARRACK, REAR
-
258410-640 SCREW, CAPSCREW, CAP
-
268050-223 WASHER, FLATWASHER, FLAT
-
270423-540 NUT, LOCKNUT, LOCK
