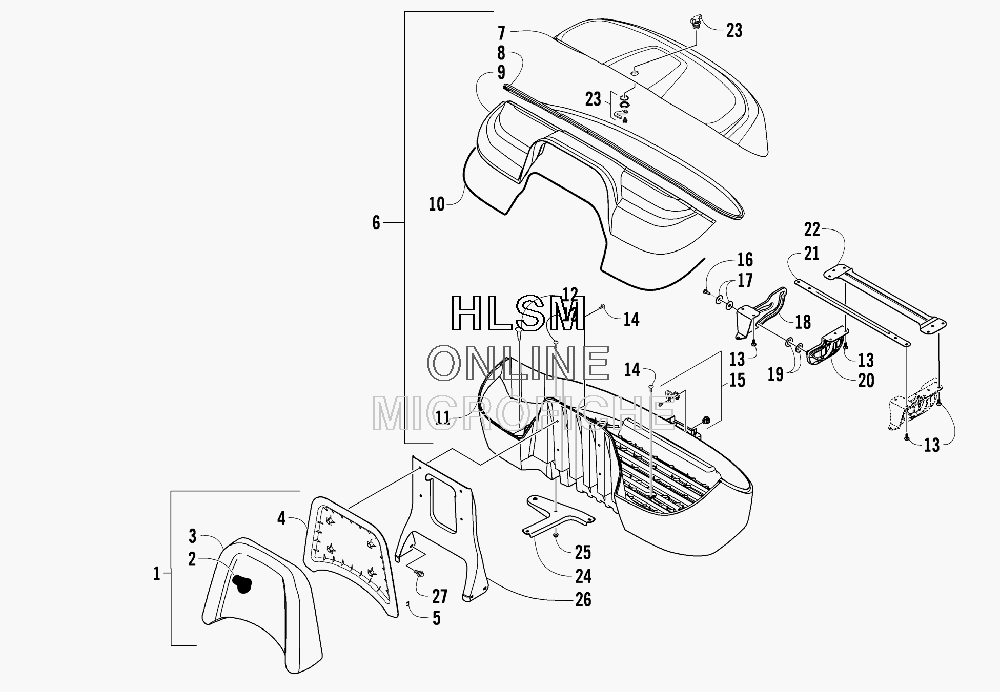

STORAGE BOX ASSEMBLY для Arctic Cat 700 EFI TRV CRUISER (BLUE) [A2008TCT4CUSV] - 2008 года выпуска
-
№АртикулНазвание
-
12506-806 SEAT, STORAGE BOX - ASSEMBLY (INC. 2-5)SEAT, STORAGE BOX - ASSEMBLY (INC. 2-5)
-
22406-768 ...COVER, SEAT...COVER, SEAT
-
32406-765 ...FOAM, SEAT...FOAM, SEAT
-
42406-762 ...PLATE, SEAT BACK...PLATE, SEAT BACK
-
50624-100 ...STAPLE...STAPLE
-
62506-820 BOX, STORAGE - ASSEMBLY (INC. 7-12, TWELVE NO. 13, AND 14-23)BOX, STORAGE - ASSEMBLY (INC. 7-12, TWELVE NO. 13, AND 14-23)
-
72506-802 ...LID, STORAGE BOX...LID, STORAGE BOX
-
82406-787 ...SEAL, STORAGE BOX LID...SEAL, STORAGE BOX LID
-
92506-799 ...TOP, STORAGE BOX...TOP, STORAGE BOX
-
102406-793 ...SEAL, STORAGE BOX TOP...SEAL, STORAGE BOX TOP
-
112406-741 ...BOTTOM, STORAGE BOX...BOTTOM, STORAGE BOX
-
122406-843 ...PLUG...PLUG
-
138477-616 ...SCREW, MACHINE...SCREW, MACHINE
-
148477-620 ...SCREW, MACHINE...SCREW, MACHINE
-
152406-792 ...LATCH, STORAGE BOX LID...LATCH, STORAGE BOX LID
-
160423-355 ...SCREW, SHOULDER...SCREW, SHOULDER
-
170423-087 ...WASHER...WASHER
-
182406-760 ...HINGE, HALF W/SLOT...HINGE, HALF W/SLOT
-
190623-675 ...WASHER...WASHER
-
202406-761 ...HINGE, HALF W/TAB...HINGE, HALF W/TAB
-
212506-921 ...BRACE, TOP - STORAGE BOX...BRACE, TOP - STORAGE BOX
-
222506-922 ...BRACE, LID - STORAGE BOX...BRACE, LID - STORAGE BOX
-
232406-907 ...LATCH, STORAGE BOX TOP...LATCH, STORAGE BOX TOP
-
242506-926 BRACKET, MOUNTING - SAFETY FLAGBRACKET, MOUNTING - SAFETY FLAG
-
258424-602 NUTNUT
-
262506-955 BRACE, SEAT BACKBRACE, SEAT BACK
-
278408-816 SCREW, CAPSCREW, CAP
