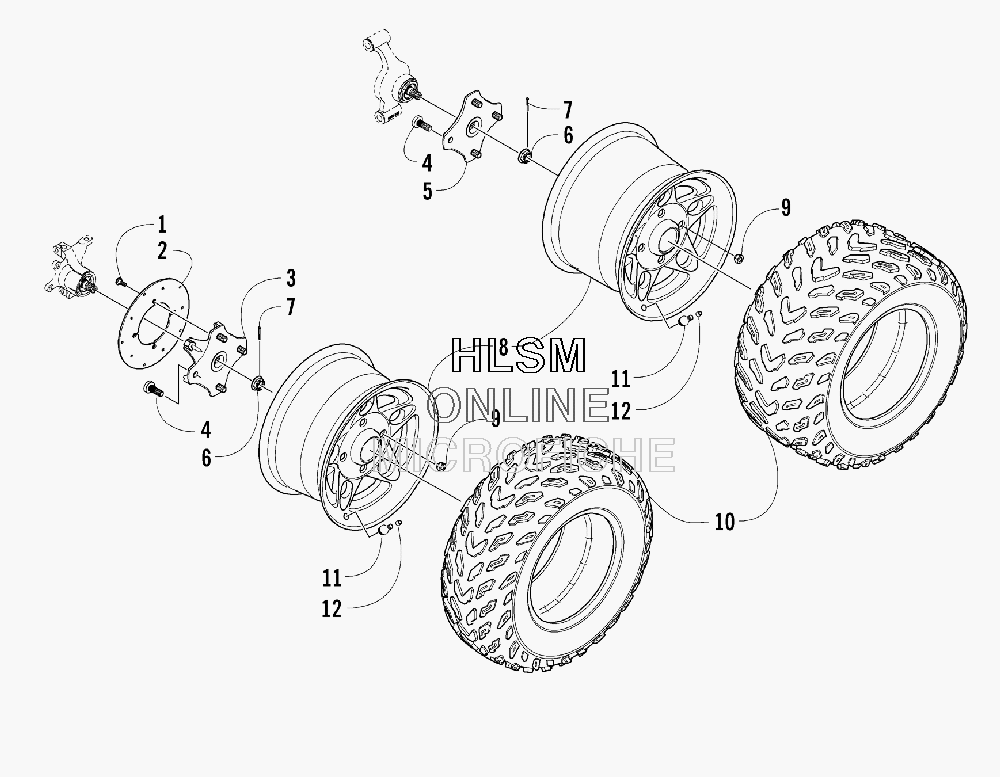

WHEEL AND TIRE ASSEMBLY для Arctic Cat 700 EFI TRV CRUISER (BLUE) [A2008TCT4CUSV] - 2008 года выпуска
-
№АртикулНазвание
-
10423-557 SCREW, SHOULDER W/LOCTITESCREW, SHOULDER W/LOCTITE
-
21436-164 DISC, BRAKEDISC, BRAKE
-
30502-599 HUB, WHEEL - FRONT (INC. 4)HUB, WHEEL - FRONT (INC. 4)
-
40402-974 ...STUD, WHEEL HUB...STUD, WHEEL HUB
-
50502-601 HUB, WHEEL - REAR - LEFT (INC. 4)HUB, WHEEL - REAR - LEFT (INC. 4)
-
50502-599 HUB, WHEEL - REAR - RIGHT (INC. 4)HUB, WHEEL - REAR - RIGHT (INC. 4)
-
60423-607 NUT, CASTLENUT, CASTLE
-
70423-407 PIN, COTTERPIN, COTTER
-
81402-424 WHEEL - FRONT - BLACKWHEEL - FRONT - BLACK
-
81402-425 WHEEL - REAR - BLACKWHEEL - REAR - BLACK
-
90423-618 NUT, MOUNTING - WHEEL - CHROMENUT, MOUNTING - WHEEL - CHROME
-
101402-548 TIRE - FRONTTIRE - FRONT
-
101402-549 TIRE - REARTIRE - REAR
-
110402-064 STEM, VALVE (INC. 12)STEM, VALVE (INC. 12)
-
120402-140 ...CAP, VALVE STEM...CAP, VALVE STEM
