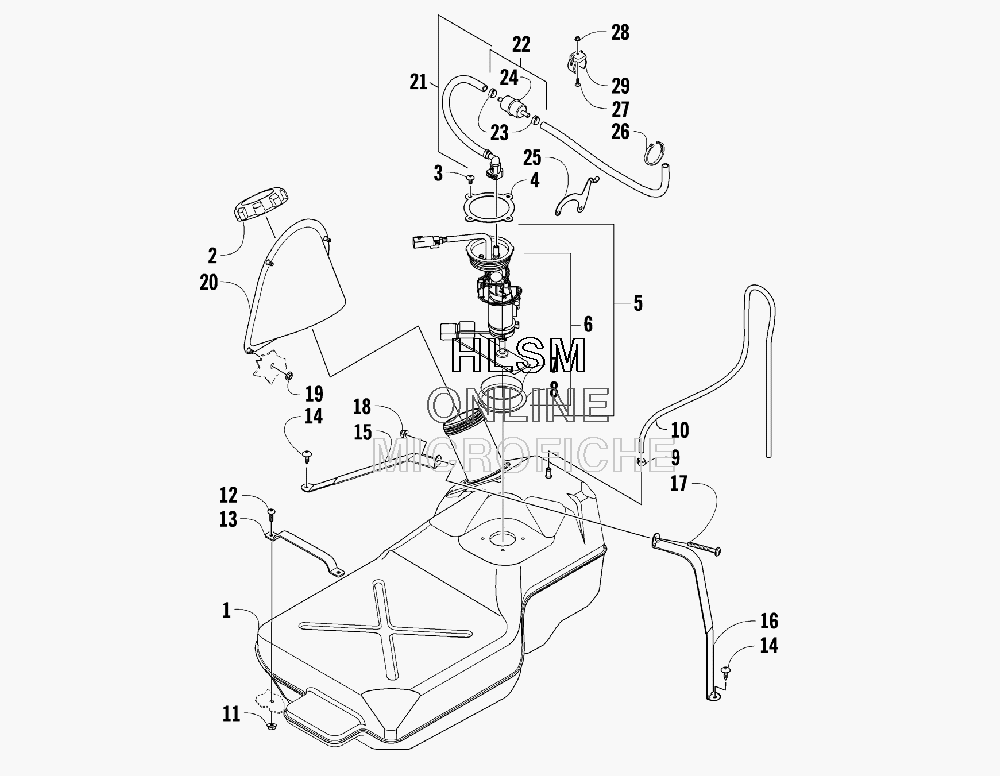

GAS TANK ASSEMBLY для Arctic Cat PROWLER XTX (SILVER) [U2008P2T4EUSL] - 2008 года выпуска
-
№АртикулНазвание
-
10570-203 TANK, GAS - ASSEMBLY (INC. 2-4) (SERVICE PARTS)TANK, GAS - ASSEMBLY (INC. 2-4) (SERVICE PARTS)
-
20470-541 ...CAP, GAS TANK...CAP, GAS TANK
-
38476-612 ...SCREW, MACHINE...SCREW, MACHINE
-
40470-606 ...PLATE, MOUNTING - FUEL LEVEL SENSOR...PLATE, MOUNTING - FUEL LEVEL SENSOR
-
50570-204 PUMP, FUEL - ASSEMBLY (INC. 6-8)PUMP, FUEL - ASSEMBLY (INC. 6-8)
-
60570-256 ...SENSOR, FUEL LEVEL - KIT (INC. 7-8)...SENSOR, FUEL LEVEL - KIT (INC. 7-8)
-
70470-614 ...SEAL, FUEL PUMP...SEAL, FUEL PUMP
-
80470-613 ...SEAL, FUEL PUMP...SEAL, FUEL PUMP
-
90423-688 CLAMP, SNAP-10 MMCLAMP, SNAP-10 MM
-
100410-070 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
110623-038 NUT, LOCKNUT, LOCK
-
128476-620 SCREW, MACHINESCREW, MACHINE
-
130470-544 BRACKET, GAS TANK MOUNTINGBRACKET, GAS TANK MOUNTING
-
140623-784 SCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLKSCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLK
-
150470-829 STRAP, GAS TANKSTRAP, GAS TANK
-
160470-830 STRAP, GAS TANKSTRAP, GAS TANK
-
178476-650 SCREW, MACHINESCREW, MACHINE
-
188427-602 NUT, HEXNUT, HEX
-
190423-357 NUT, STAMPED-1/4" (SD 25001 SOH)NUT, STAMPED-1/4" (SD 25001 SOH)
-
201406-886 INSERT, GAS TANK CAPINSERT, GAS TANK CAP
-
210570-245 HOSE, GASLINE - ASSEMBLY (INC. 22-24)HOSE, GASLINE - ASSEMBLY (INC. 22-24)
-
220570-246 ...FILTER, FUEL - KIT (INC. 23-24)...FILTER, FUEL - KIT (INC. 23-24)
-
250470-796 BRACKET, FILTER MOUNTINGBRACKET, FILTER MOUNTING
-
260123-788 TIE, CABLETIE, CABLE
-
278476-516 SCREW, MACHINESCREW, MACHINE
-
288427-502 NUT, LOCKNUT, LOCK
-
291670-826 BRACKET, FUEL FILTERBRACKET, FUEL FILTER
