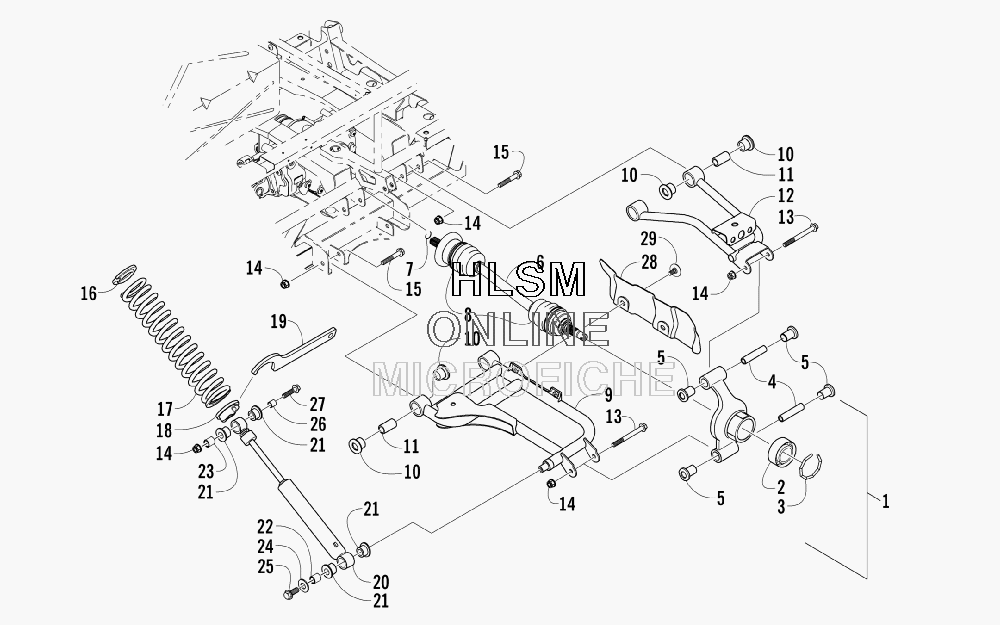

REAR SUSPENSION ASSEMBLY для Arctic Cat PROWLER XTX (SILVER) [U2008P2T4EUSL] - 2008 года выпуска
-
№АртикулНазвание
-
10504-389 KNUCKLE, REAR - ASSEMBLY (INC. 2-5)KNUCKLE, REAR - ASSEMBLY (INC. 2-5)
-
21402-027 ...BEARING, WHEEL HUB...BEARING, WHEEL HUB
-
30423-423 ...RING, RETAINING...RING, RETAINING
-
40403-038 ...COLLAR, SUSPENSION BUSHING...COLLAR, SUSPENSION BUSHING
-
50403-032 ...BUSHING, SUSPENSION...BUSHING, SUSPENSION
-
60502-733 HALFSHAFT (PLUS 2 FR) (INC. 7-8)HALFSHAFT (PLUS 2 FR) (INC. 7-8)
-
71441-109 ...CLIP, RETAINING...CLIP, RETAINING
-
80436-276 ...REPAIR KIT, BOOT - REAR AXLE...REPAIR KIT, BOOT - REAR AXLE
-
90504-464 A-ARM, REAR - LOWER RIGHT - BLACK (INC. 10-11)A-ARM, REAR - LOWER RIGHT - BLACK (INC. 10-11)
-
90504-465 A-ARM, REAR - LOWER LEFT - BLACK (INC. 10-11)A-ARM, REAR - LOWER LEFT - BLACK (INC. 10-11)
-
100403-115 ...BUSHING...BUSHING
-
110403-114 ...COLLAR...COLLAR
-
120504-358 A-ARM, REAR - UPPER RIGHT - BLACK (INC. 10-11)A-ARM, REAR - UPPER RIGHT - BLACK (INC. 10-11)
-
120504-359 A-ARM, REAR - UPPER LEFT - BLACK (INC. 10-11)A-ARM, REAR - UPPER LEFT - BLACK (INC. 10-11)
-
138409-000 SCREW, CAPSCREW, CAP
-
148428-002 NUT, LOCKNUT, LOCK
-
158409-075 SCREW, CAPSCREW, CAP
-
161603-889 RETAINER, SPRINGRETAINER, SPRING
-
170404-117 SPRING, SUSPENSION (230/550 LB/IN) - BLACKSPRING, SUSPENSION (230/550 LB/IN) - BLACK
-
180404-057 CAM, SPRING ADJUSTERCAM, SPRING ADJUSTER
-
190441-587 WRENCH, SPANNER-66MMWRENCH, SPANNER-66MM
-
200404-115 SHOCK ABSORBER - REAR (INC. 21-23)SHOCK ABSORBER - REAR (INC. 21-23)
-
210603-955 ...BUSHING, SHOCK-.045 FLANGE...BUSHING, SHOCK-.045 FLANGE
-
221603-219 ...SLEEVE, SHOCK...SLEEVE, SHOCK
-
231603-209 ...SLEEVE...SLEEVE
-
240423-087 WASHERWASHER
-
258408-820 SCREW, CAPSCREW, CAP
-
260404-116 SLEEVE, SHOCK ABSORBERSLEEVE, SHOCK ABSORBER
-
278409-040 SCREW, CAPSCREW, CAP
-
281441-086 GUARD, BOOT-REAR-RH SILVERGUARD, BOOT-REAR-RH SILVER
-
281441-087 GUARD, BOOT-REAR-LH SILVERGUARD, BOOT-REAR-LH SILVER
-
290423-545 SCREW, BODYSCREW, BODY
