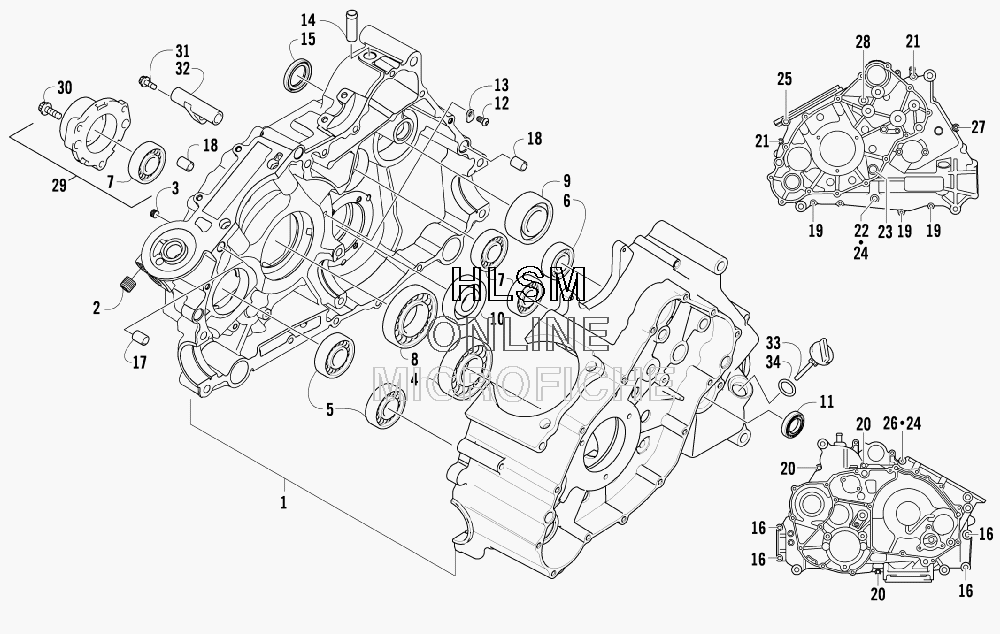

CRANKCASE ASSEMBLY для Arctic Cat 700 HI CRUISER (STEEL BLUE) [A2009TCT4EUSV] - 2009 года выпуска
-
№АртикулНазвание
-
10801-153 CRANKCASE ASSEMBLY (INC. 2-15)CRANKCASE ASSEMBLY (INC. 2-15)
-
20812-064 PLUGPLUG
-
30801-002 PLUGPLUG
-
40832-043 BEARING, BALL-S/R 35X80X21BEARING, BALL-S/R 35X80X21
-
50832-044 BEARING, CONRAD-63/22BEARING, CONRAD-63/22
-
60832-049 BEARING, CONRAD-6204BEARING, CONRAD-6204
-
70832-050 BEARING, CONRAD-6304BEARING, CONRAD-6304
-
80832-042 BEARING, BALL-S/R 40X80X18BEARING, BALL-S/R 40X80X18
-
90832-048 BEARING, DRIVESHAFTBEARING, DRIVESHAFT
-
100832-015 BEARING, OUTPUT SHAFTBEARING, OUTPUT SHAFT
-
110822-052 SEAL, COUNTERSHAFTSEAL, COUNTERSHAFT
-
120826-100 SCREW, CAP-HSBH M6_1X12 W/ THREAD LOCKSCREW, CAP-HSBH M6_1X12 W/ THREAD LOCK
-
130822-010 RETAINER, BEARINGRETAINER, BEARING
-
140801-028 PIPE, BREATHERPIPE, BREATHER
-
150830-035 SEAL, DRIVESHAFTSEAL, DRIVESHAFT
-
168412-850 SCREW, CAP-HFH M8X1.25X50 CL8.8 RIE SILSCREW, CAP-HFH M8X1.25X50 CL8.8 RIE SIL
-
170829-003 DOWEL, SPLIT, 11 X 16DOWEL, SPLIT, 11 X 16
-
180829-002 DOWEL, SPLIT, 13 X 18DOWEL, SPLIT, 13 X 18
-
198468-645 SCREW, MACH-TSPNH M6X1.0X45 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X45 CL8.8 BLK
-
208468-655 SCREW, MACH-TSPNH M6X1.0X55 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X55 CL8.8 BLK
-
218468-675 SCREW, MACH-TSPNH M6X1.0X75 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X75 CL8.8 BLK
-
228412-860 SCREW, CAP-HFH M8X1.25X60 CL8.8 RIE SILSCREW, CAP-HFH M8X1.25X60 CL8.8 RIE SIL
-
230826-017 SCREW, CAP HFH M8 X 1.25 X 105SCREW, CAP HFH M8 X 1.25 X 105
-
240830-008 GASKET, COPPER 8X14X1GASKET, COPPER 8X14X1
-
250826-019 SCREW, CAP HFH M8 X 1.25 X 140SCREW, CAP HFH M8 X 1.25 X 140
-
260826-018 SCREW, CAP HFH M8 X 1.25 X 125SCREW, CAP HFH M8 X 1.25 X 125
-
278468-695 SCREW, MACH-TSPNH M6X1.0X95 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X95 CL8.8 BLK
-
288468-680 SCREW, MACH-TSPNH M6X1.0X80 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X80 CL8.8 BLK
-
290801-029 HOUSING, SECONDARY SHAFT (INC. ONE NO. 7)HOUSING, SECONDARY SHAFT (INC. ONE NO. 7)
-
300826-105 SCREW, CAP-HFH M8 X1.25X35 W/THD LOCSCREW, CAP-HFH M8 X1.25X35 W/THD LOC
-
310826-038 SCREW, MACH-TSPH M6 X1X12 W/ THD LOCKSCREW, MACH-TSPH M6 X1X12 W/ THD LOCK
-
320801-069 PIPE, BREATHERPIPE, BREATHER
-
330801-143 STICK, OILEVELSTICK, OILEVEL
-
340830-010 O-RINGO-RING
