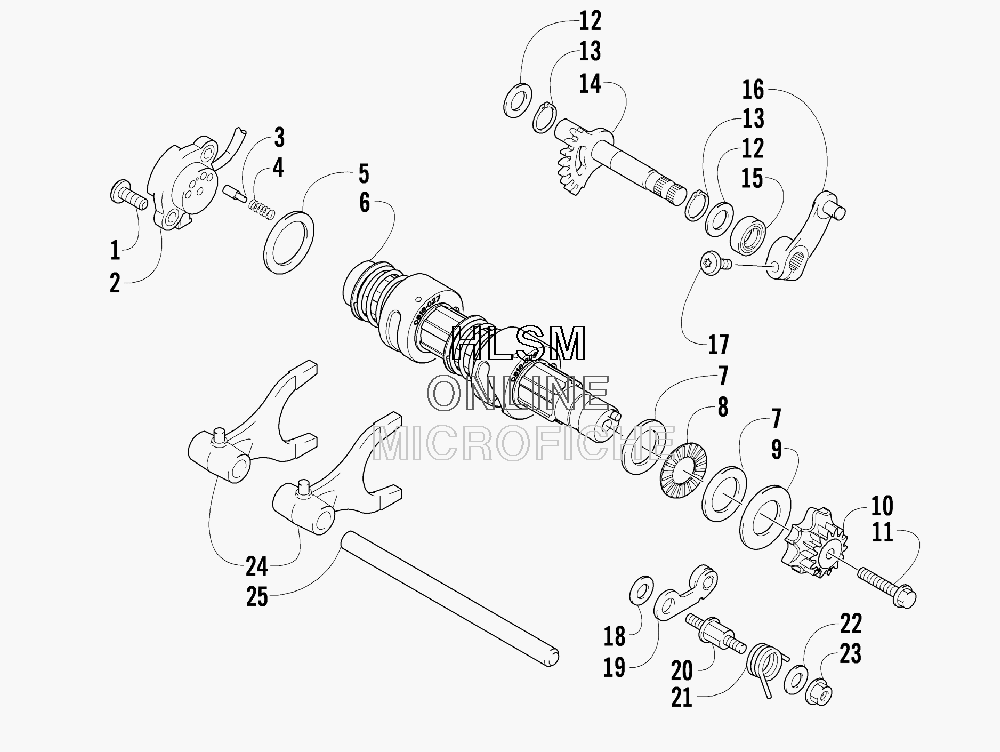

GEAR SHIFTING ASSEMBLY для Arctic Cat 700 HI CRUISER (STEEL BLUE) [A2009TCT4EUSV] - 2009 года выпуска
-
№АртикулНазвание
-
18470-520 SCREW, MACHINESCREW, MACHINE
-
20409-090 SWITCH, GEAR SHIFT POSITIONSWITCH, GEAR SHIFT POSITION
-
30818-013 CONTACTCONTACT
-
40818-017 SPRINGSPRING
-
50828-040 WASHERWASHER
-
60818-046 SHAFT, GEAR SHIFT - ASSEMBLYSHAFT, GEAR SHIFT - ASSEMBLY
-
70828-095 WASHERWASHER
-
80832-052 BEARING, THRUSTBEARING, THRUST
-
90828-037 WASHERWASHER
-
100818-089 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
110826-006 SCREW, CAPSCREW, CAP
-
120828-036 WASHERWASHER
-
130831-010 RING, RETAININGRING, RETAINING
-
140818-007 SHAFT, SUB-GEAR SHIFTSHAFT, SUB-GEAR SHIFT
-
150830-044 SEAL, SUB-GEAR SHIFT SHAFTSEAL, SUB-GEAR SHIFT SHAFT
-
160818-014 ARM, SELECTARM, SELECT
-
178468-620 SCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLK
-
180828-038 WASHER, STEEL, 6 X 14 X .9WASHER, STEEL, 6 X 14 X .9
-
190818-002 STOPPER, CAMSTOPPER, CAM
-
200818-004 SUPPORT, CAM STOPPERSUPPORT, CAM STOPPER
-
210818-090 SPRINGSPRING
-
220828-035 WASHER, STEEL 6 X 16 X 2.5WASHER, STEEL 6 X 16 X 2.5
-
238424-602 NUTNUT
-
240818-072 FORK, SHIFTFORK, SHIFT
-
250818-006 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
