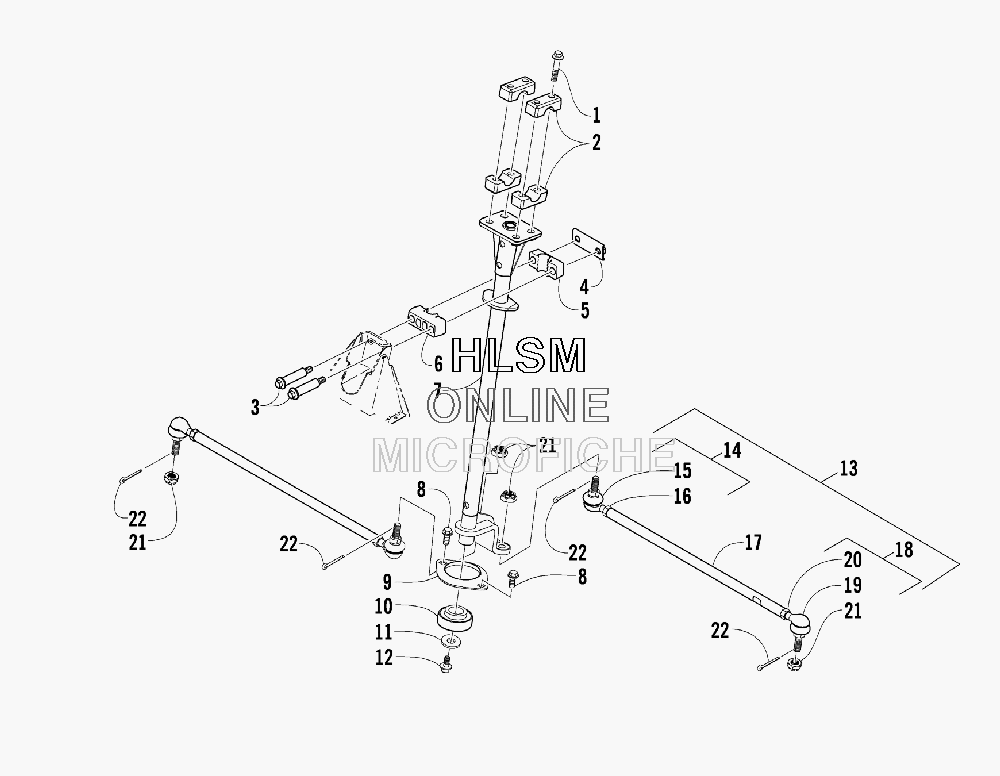

STEERING ASSEMBLY для Arctic Cat 700 HI CRUISER (STEEL BLUE) [A2009TCT4EUSV] - 2009 года выпуска
-
№АртикулНазвание
-
18408-860 SCREW, CAPSCREW, CAP
-
20405-035 CAP, STEERING ADJUSTERCAP, STEERING ADJUSTER
-
30423-505 SCREW, SHOULDERSCREW, SHOULDER
-
40505-484 CAP, HOUSING-BLACKCAP, HOUSING-BLACK
-
50405-138 HOUSING, LOWERHOUSING, LOWER
-
60405-139 HOUSING, UPPERHOUSING, UPPER
-
70505-451 POST, STEERING-BLACKPOST, STEERING-BLACK
-
88408-816 SCREW, CAPSCREW, CAP
-
90602-233 FLANGE, BRG-TWO MTG HOLEFLANGE, BRG-TWO MTG HOLE
-
100405-052 BEARING W/INVERTED OISEALBEARING W/INVERTED OISEAL
-
110423-073 WASHERWASHER
-
128409-020 SCREW, CAPSCREW, CAP
-
130505-499 TIE ROD - ASSEMBLY (INC. 14-20)TIE ROD - ASSEMBLY (INC. 14-20)
-
140505-511 END, TIE ROD - LEFT-HAND THREAD-KIT(INC.15-16)END, TIE ROD - LEFT-HAND THREAD-KIT(INC.15-16)
-
160423-013 NUT - LEFT-HAND THREADNUT - LEFT-HAND THREAD
-
170405-281 TIE RODTIE ROD
-
180505-510 END, TIE ROD-RIGHT-HAND THREAD-KIT(INC.19-20)END, TIE ROD-RIGHT-HAND THREAD-KIT(INC.19-20)
-
208420-002 NUT - RIGHT-HAND THREADNUT - RIGHT-HAND THREAD
-
210423-157 NUT, LOCKNUT, LOCK
-
220623-175 PIN, COTTERPIN, COTTER
