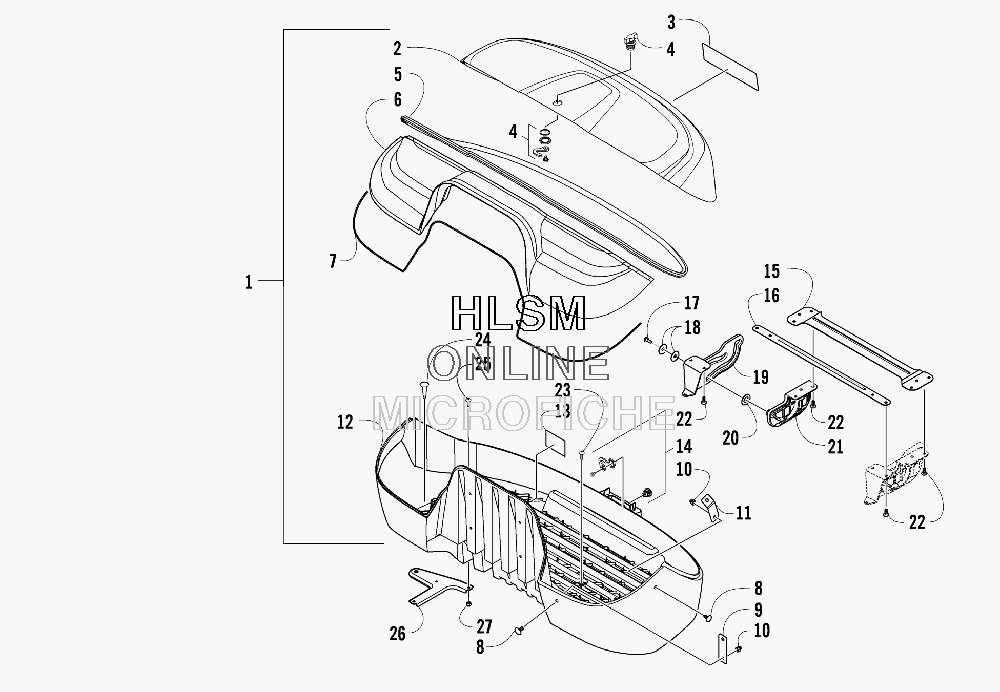

STORAGE BOX ASSEMBLY для Arctic Cat 700 HI CRUISER (STEEL BLUE) [A2009TCT4EUSV] - 2009 года выпуска
-
№АртикулНазвание
-
12506-820 BOX, STORAGE - ASSEMBLY (INC. 2-22)BOX, STORAGE - ASSEMBLY (INC. 2-22)
-
22506-802 LID, STORAGE BOXLID, STORAGE BOX
-
31411-725 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
42406-907 LATCH, STORAGE BOX TOPLATCH, STORAGE BOX TOP
-
52406-787 SEAL, STORAGE BOX LIDSEAL, STORAGE BOX LID
-
62516-122 TOP, STORAGE BOXTOP, STORAGE BOX
-
72406-793 SEAL, STORAGE BOX TOPSEAL, STORAGE BOX TOP
-
80423-895 BOLT, CARRIAGEBOLT, CARRIAGE
-
92516-116 PLATE, RETAININGPLATE, RETAINING
-
100423-901 NUT, CAPNUT, CAP
-
112516-117 PLATE, RETAININGPLATE, RETAINING
-
122516-337 BOTTOM, STORAGE BOX (INC. 13)BOTTOM, STORAGE BOX (INC. 13)
-
131411-877 DECAL, WARNING - STORAGE BOXDECAL, WARNING - STORAGE BOX
-
142406-792 LATCH, STORAGE BOX LIDLATCH, STORAGE BOX LID
-
152506-922 BRACE, LID - STORAGE BOXBRACE, LID - STORAGE BOX
-
162506-921 BRACE, TOP - STORAGE BOXBRACE, TOP - STORAGE BOX
-
170423-355 SCREW, SHOULDER-M6-1.0 X 18-BLKSCREW, SHOULDER-M6-1.0 X 18-BLK
-
180423-087 WASHERWASHER
-
192406-760 HINGE, HALF W/SLOTHINGE, HALF W/SLOT
-
200623-675 WASHERWASHER
-
212406-761 HINGE, HALF W/TABHINGE, HALF W/TAB
-
228477-616 SCREW, MACH-TSTRH M6X1.0X16 Z & BLKSCREW, MACH-TSTRH M6X1.0X16 Z & BLK
-
230423-889 SCREW, MACHINESCREW, MACHINE
-
242406-843 PLUGPLUG
-
258477-620 SCREW, MACH-TSTRH M6X1.0X20 Z & BLKSCREW, MACH-TSTRH M6X1.0X20 Z & BLK
-
262506-926 BRACKET-PAINTED, MOUNTING - SAFETY FLAGBRACKET-PAINTED, MOUNTING - SAFETY FLAG
-
270423-540 NUT, LOCKNUT, LOCK
