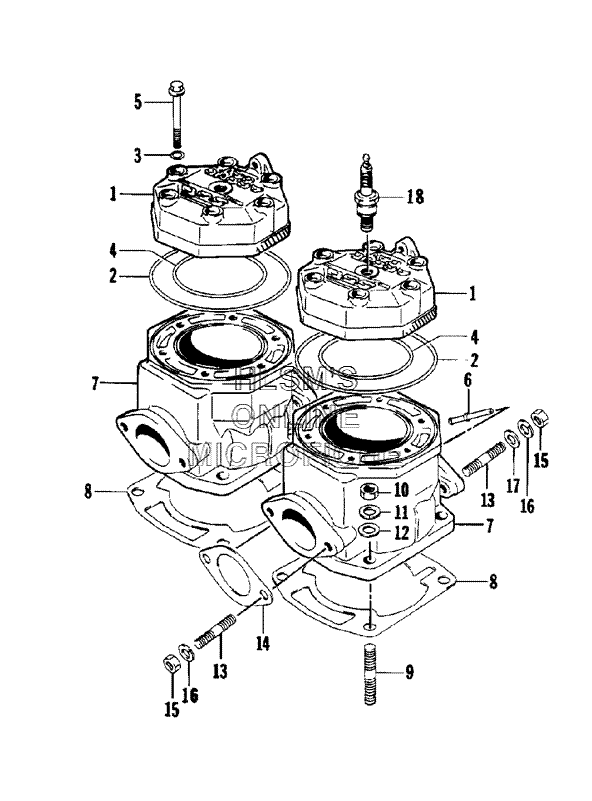

CYLINDER W/ HEAD для Arctic Cat Bearcat Wide Track (USA) - 2000 года выпуска
-
№АртикулНазвание
-
13003-762 HEAD, CYLINDERHEAD, CYLINDER
-
23003-765 O-RING, HEAD - OUTERO-RING, HEAD - OUTER
-
33003-227 O-RING, HEAD BOLTO-RING, HEAD BOLT
-
43003-764 O-RING, HEAD - INNERO-RING, HEAD - INNER
-
53004-370 BOLT, HEADBOLT, HEAD
-
63003-597 NOZZLE, OILNOZZLE, OIL
-
73003-926 CYLINDERCYLINDER
-
83003-763 GASKET, CYLINDERGASKET, CYLINDER
-
93005-207 BOLT, STUD - CYLINDERBOLT, STUD - CYLINDER
-
103004-989 NUTNUT
-
113004-362 WASHER, LOCKWASHER, LOCK
-
123004-278 WASHERWASHER
-
133004-279 BOLT, STUDBOLT, STUD
-
143003-503 GASKET, EXHAUSTGASKET, EXHAUST
-
153004-334 NUTNUT
-
163004-280 WASHER, LOCKWASHER, LOCK
-
173423-204 WASHERWASHER
-
180217-709 SPARK PLUG (BR9EYA)SPARK PLUG (BR9EYA)
