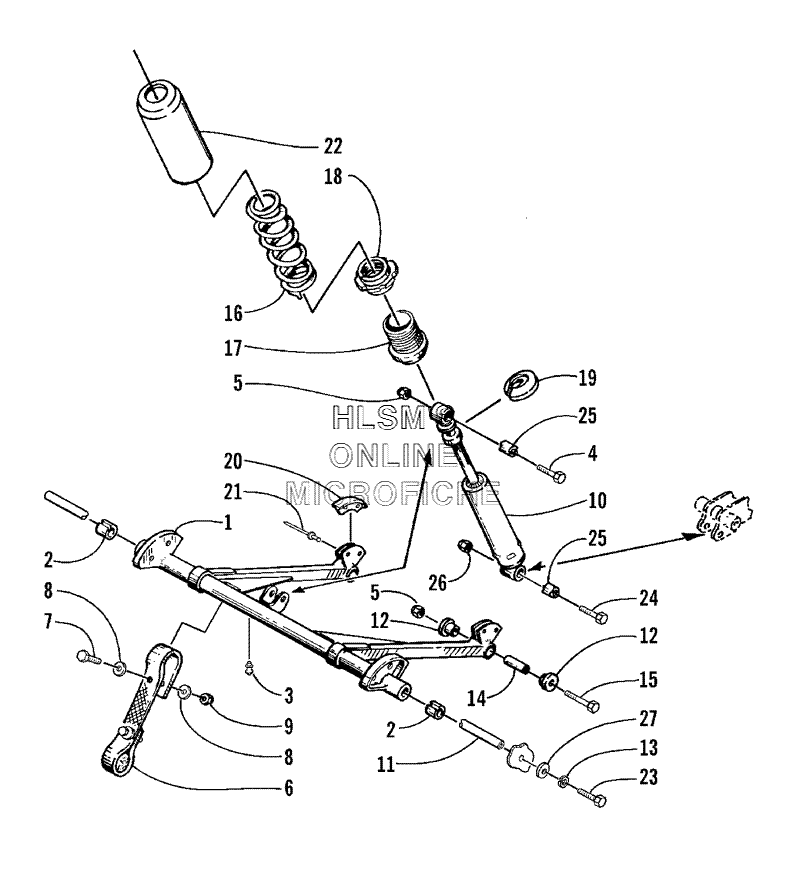

REAR SUSPENSION/FRONT ARM ASSEMBLY для Arctic Cat Bearcat Wide Track (USA) - 2000 года выпуска
-
№АртикулНазвание
-
10704-283 ARM, FRONT SUSPENSION (INC. 2-3 AND 12)ARM, FRONT SUSPENSION (INC. 2-3 AND 12)
-
20603-083 . BEARING. BEARING
-
30623-010 . FITTING, GREASE. FITTING, GREASE
-
48002-227 SCREW, CAPSCREW, CAP
-
58040-486 NUT, LOCKNUT, LOCK
-
60604-579 STRAP, LIMITERSTRAP, LIMITER
-
78002-042 SCREW, CAPSCREW, CAP
-
80623-184 WASHERWASHER
-
98040-366 NUT, LOCKNUT, LOCK
-
100603-117 SHOCK ABSORBER - FRONT ARMSHOCK ABSORBER - FRONT ARM
-
110604-948 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
120104-386 BUSHINGBUSHING
-
138051-277 WASHER, LOCKWASHER, LOCK
-
140104-629 SPACER, FRONT ARMSPACER, FRONT ARM
-
158002-228 SCREW, CAPSCREW, CAP
-
160604-587 SPRING, COMPRESSIONSPRING, COMPRESSION
-
170603-147 SLEEVE, RETAINER - SPRINGSLEEVE, RETAINER - SPRING
-
180603-259 NUT, RETAINERNUT, RETAINER
-
190603-033 RETAINER, SPRINGRETAINER, SPRING
-
200604-183 BUMPER, TRACK GUIDEBUMPER, TRACK GUIDE
-
218060-710 RIVETRIVET
-
220604-590 COVER, COMPRESSION SPRINGCOVER, COMPRESSION SPRING
-
238012-224 SCREW, CAPSCREW, CAP
-
248002-225 SCREW, CAPSCREW, CAP
-
250603-030 AXLE, SERRATEDAXLE, SERRATED
-
268041-486 NUT, LOCKNUT, LOCK
-
270623-044 WASHERWASHER
